ASRock B450M HDV R4.0 AMD Motherboard - 2 x DDR4 DIMM Slots - 15μ Gold Contact in DIMM Slots 03 Years warranty

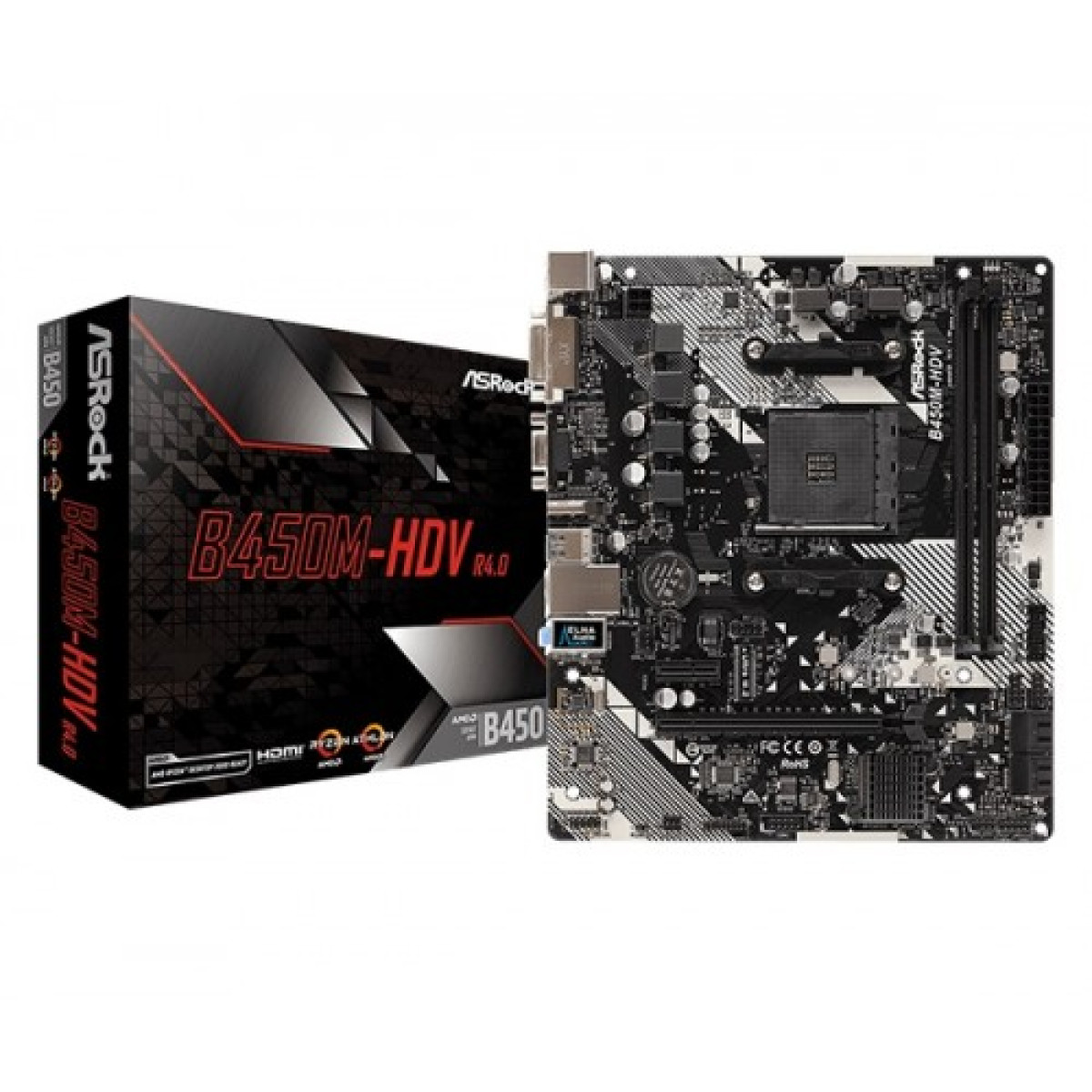

ASRock B450M HDV R4.0 AMD Motherboard
ASRock B450M HDV R4.0 AMD Motherboard - 2 x DDR4 DIMM Slots - 15μ Gold Contact in DIMM Slots 03 Years warranty
৳7,000
Unix Network Jashore Bangladesh: ৳7,000
  • Stock: In Stock
  • Brand: ASRock
  • Model: ASRock B450M HDV R4.0
  • SKU: 733
Price and stocks may change without prior notice. Please confirm before making the payment.

Specifications

BASIC INFORMATION
Supported CPU - AMD AM4 Socket - Digi Power design - Supports CPU up to 105W
Chipset - AMD Promontory B450
Slots - 2 x DDR4 DIMM Slots - 15μ Gold Contact in DIMM Slots
Audio - 7.1 CH HD Audio (Realtek ALC887 Audio Codec) - Supports Surge Protection - ELNA Audio Caps
BIOS - 128Mb AMI UEFI Legal BIOS with GUI support - SMBIOS 2.3 support
Form Factor - Micro ATX Form Factor: 9.1-in x 8.1-in, 23.1 cm x 20.6 cm
Memory Specifications
Supported Memory For Ryzen Series CPUs (Raven Ridge), ECC is only supported with PRO CPUs.
Type - Dual Channel DDR4 Memory Technology
Graphics Specifications
Max Shared Memory - Max Shared memory supports up to 16GB - The Max shared memory 16GB requires 32GB system memory installed.
Expansion Slots
M.2 Socket - 1 x Screw for M.2 Socket - 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon 2xxGE series APU)*
PCI AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge) - 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)* AMD Ryzen series CPUs (Raven Ridge) - 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)* AMD Athlon series CPUs - 1 x PCI Express 3.0 x16 Slot (PCIE2: x4 mode)* - 1 x PCI Express 2.0 x1 Slot
PORTS, CONNECTORS & SLOTS
D-Sub (s) - Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz - 1 x D-Sub Port
DVI-D (s) - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz - 1 x DVI-D Port
HDMI - 1 x HDMI Port
LAN Port (s) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
Supported Storage - 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug - 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon 2xxGE series APU) - Supports NVMe SSD as boot disks - Supports ASRock U.2 Kit
USB (s) - 6 USB 3.1 Gen1 (2 Front, 4 Rear) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection) - 2 x USB 2.0 Ports (Supports ESD Protection) - 4 x USB 3.1 Gen1 Ports (Supports ESD Protection)
Internal I/O Connectors - 1 x PS/2 Mouse/Keyboard Port - 1 x D-Sub Port - 1 x DVI-D Port - 1 x HDMI Port - 2 x USB 2.0 Ports (Supports ESD Protection) - 4 x USB 3.1 Gen1 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone - 1 x COM Port Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin)* - 2 x Chassis Fan Connectors (1 x 3-pin, 1 x 4-pin)** - 1 x 24 pin ATX Power Connector - 1 x 4 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)
WARRANTY
Manufacturing Warranty 03 Years warranty

Description

ASRock B450M HDV R4.0 AMD Motherboard

ASRock A320M-HDV R4.0 AMD Motherboard built in AMD AM4 Socket with AMD Promontory B450 chipset.This Motherboard supports SATA3 6Gb/s M.2 modules, and is compatible with  ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSDs.


The main component of the Motherboard

This Motherboard Supports CPU  up to 105W with Vega Series Graphics in Ryzen Series APU.It has Quick Installation Guide, Support CD, I/O Shield, 2 x SATA Data Cables, 1 x Screw for M.2 Socket.For graphical support ,It has DirectX 12, Pixel Shader 5.0, Three graphics output options: D-Sub, DVI-D and HDMI. That Motherboard can supports triple Monitor, HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz, DVI-D with max. resolution up to 1920x1200 @ 60Hz, D-Sub with max. resolution up to 2048x1536 @ 60Hz, Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required), HDCP 1.4 with DVI-D and HDMI Ports and 4K Ultra HD (UHD) playback with HDMI Port.


In this amazing ASRock Motherboard the ASRock APP Charger, ASRock XFast LAN is used. Moreover, In this exclusive Motherboard used in different types of memory storage ; these are - Dual Channel DDR4 Memory Technology, 2 x DDR4 DIMM Slots, AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory, AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC) / 2933/2667/2400/2133 non-ECC, un-buffered memory, AMD 7th Gen A-Series APUs support DDR4 2400/2133 non-ECC, un-buffered memory, Max. capacity of system memory is 32GB, 15μ Gold Contact in DIMM Slot. In this Motherboard, 128Mb AMI UEFI Legal BIOS with GUI support, Plug and Play", ACPI 5.1 compliance wake up events, jumperfree, SMBIOS 2.3 support, DRAM Voltage multi-adjustment are support. They have include PCIE x1 Gigabit LAN 10/100/1000 Mb/s, Realtek RTL8111H and Supports Wake-On-LAN, Lightning/ESD Protection, Energy Efficient Ethernet 802.3az and PXE in this exclusive grapics card.


Special Features of this Motherboard That must be considered

Have a look on the special features of this board that might firm your buying decision.This Motherboard supports PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSDs.PCB appearance represents rock-solid quality and gives the motherboard a more mysterious touch. In this Motherboard High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the Motherboard against electrical shorts caused by humidity and also the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.You can easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.For gaming or entertainment these are the features one should consider of purchasing it.

What is the price of ASRock B450M HDV R4.0 AMD Motherboard ASRock (RYZEN) in Bangladesh?

The latest price of ASRock B450M HDV R4.0 AMD Motherboard ASRock (RYZEN) in Bangladesh is ৳7,000. You can buy the ASRock ASRock B450M HDV R4.0 AMD Motherboard ASRock (RYZEN) at best price from our website or visit Unix Network Showroom Jessore Computer city . Unix Network offers you ASRock B450M HDV R4.0 AMD Motherboard with the best price in Bangladesh Which, is your budget-friendly. We also offers you free shipping  with this ASRock B450M HDV R4.0 AMD Motherboard. Order Online for nationwide cash on delivery or visit our Shop. Follow us on Facebook for regular updates and offers. Subscribe our Youtube channel for reviews of gadget Products. You can call mobile number 01715143685 for a free consultation.Your comments on the following topics will accelerate our progress.
