Basic Information
Supported CPU AMD AM4 Socket
Digi Power design
Supports 105W Water Cooling (Pinnacle Ridge); Supports 95W Water Cooling (Summit Ridge); Supports 65W Water Cooling (Raven Ridge)
Chipset AMD Promontory B450
BIOS 128Mb AMI UEFI Legal BIOS with multilingual GUI support
Supports "Plug and Play"
ACPI 5.1 compliance wake up events
Supports jumperfree
SMBIOS 2.3 support
DRAM Voltage multi-adjustment
Form Factor Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
Solid Capacitor design
Expansion Slots
PCI 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)
- 1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode)
M.2 Socket 2 x Screws for M.2 Sockets
Memory
Type Dual Channel DDR4 Memory Technology
Slots 4 x DDR4 DIMM Slots
Supported Memory AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC) / 2933/2667/2400/2133 ECC & non-ECC, un-buffered memory*
AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory*
AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC) / 2933/2667/2400/2133 non-ECC, un-buffered memory*
Maximum Mamory 64GB
Graphics
Graphics Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz
Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
Supports HDCP with DVI-D and HDMI Ports
Supports 4K Ultra HD (UHD) playback with HDMI Port
Max Shared Memory 2GB
Connector & Ports
HDMI 1 x HDMI Port
Display Port (s) 1 x DVI-D Port
USB (s) 2 x USB 2.0 Ports (Supports ESD Protection)
1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
4 x USB 3.1 Gen1 Ports (Supports ESD Protection)
LAN Port (s) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
Supported Storage 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug*
1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge)**
1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module
Audio 1 x Front Panel Audio Connector
Internal I/O Ports - 1 x PS/2 Mouse/Keyboard Port
- 1 x D-Sub Port
- 1 x DVI-D Port
- 1 x HDMI Port
- 2 x USB 2.0 Ports (Supports ESD Protection)
- 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
- 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
- 4 x USB 3.1 Gen1 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone
Warranty Information
Manufacturing Warranty 03 years
Description:
Description:

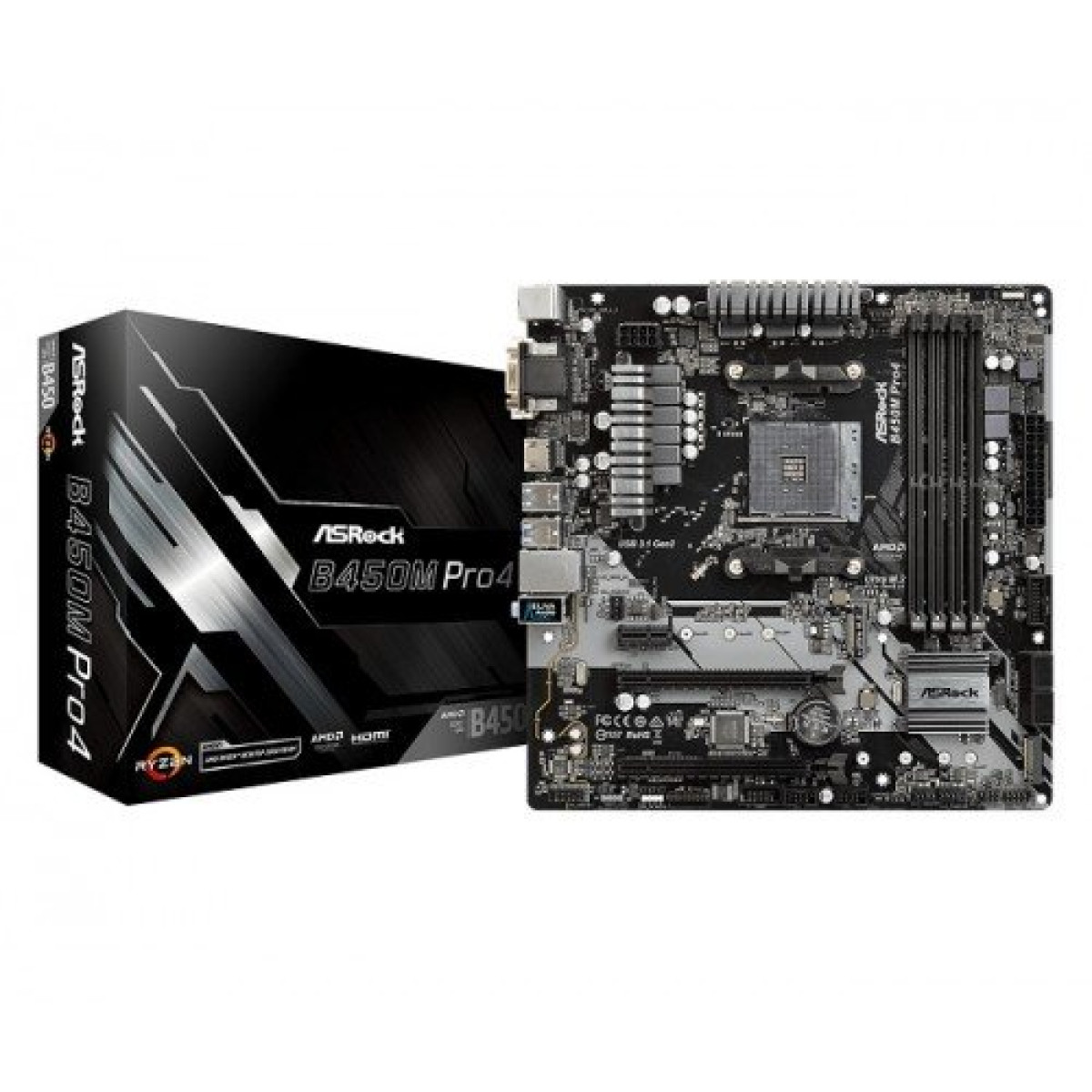

Looking for a reliable motherboard to build your next AMD-powered PC? Look no further than the Asrock B450M Pro4 AMD Motherboard available at Unix Network in Jashore, Bangladesh. This high-performance motherboard supports AMD Ryzen processors and features multiple connectivity options, including USB 3.1 and M.2 slots for super-fast data transfer speeds. With support for up to 64GB of DDR4 RAM, this motherboard is perfect for gaming, multimedia editing, and everyday computing tasks. Upgrade your PC with the Asrock B450M Pro4 and experience unmatched performance and reliability. Visit Unix Network in Jashore today to get your hands on this top-of-the-line motherboard.
