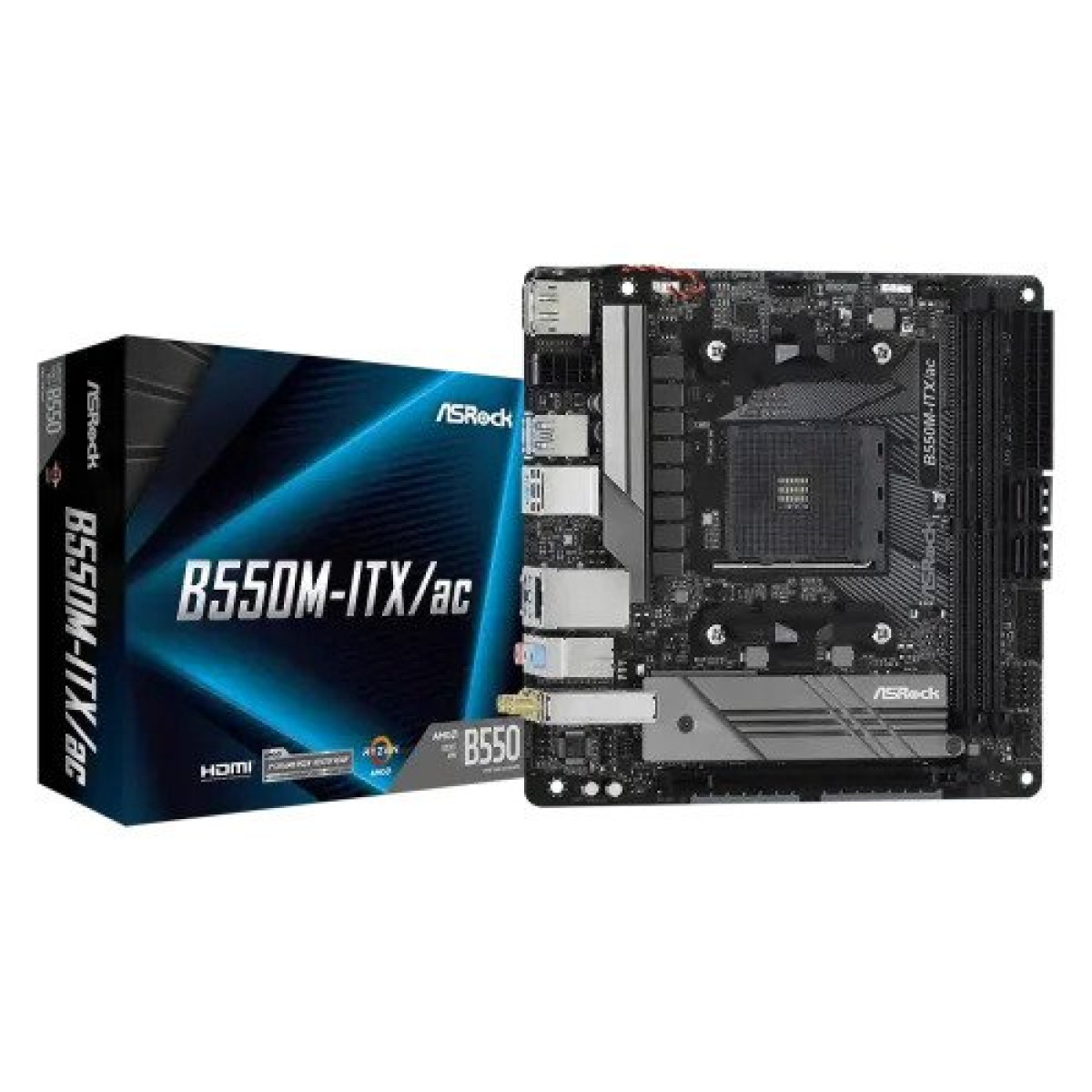

ASRock B550M-ITX/ac AMD AM4 Mini-ITX Motherboard

The ASRock B550M-ITX/ac Motherboard supports AMD AM4 Socket Ryzen 3000, 3000 G-Series, 4000 G-Series, 5000, and 5000 G-Series Desktop Processors. It supports DDR4 4733+ (OC). It features sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well. This motherboard features onboard RGB headers and an addressable RGB header that allow the motherboard to be connected to compatible LED devices such as strips, CPU fans, coolers, chassis, and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects. The ASRock B550M-ITX/ac Motherboard comes with an 802.11ac WiFi (2.4G / 5G WiFi) module which supports wireless networks and Bluetooth. It supports the next generation PCI Express 4.0 M.2 SSDs, it is capable of performing twice the speed compared to the previous 3rd generation, giving a lightning-fast data transferring experience. This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen1 ports built on the rear i/o for supporting next-generation USB 3.2 Gen1 devices and delivering up to 5 Gbps data transfer rates. Complete with two types of most used connectors! Packed with an HDMI + DisplayPort combo, you have more graphics output options. The ASRock B550M-ITX/ac Motherboard comes with 3 years  of warranty.

What is the price of Asrock B550M-Itx/Ac Amd Am4 Mini-Itx Motherboard ASRock in Bangladesh?


The latest price of Asrock B550M-Itx/Ac Amd Am4 Mini-Itx Motherboard ASRock in Bangladesh is . You can buy the ASRock Asrock B550M-Itx/Ac Amd Am4 Mini-Itx Motherboard ASRock at best price from our website or visit Unix Network Showroom Jessore Computer city . Unix Network offers you Asrock B550M-Itx/Ac Amd Am4 Mini-Itx Motherboard with the best price in Bangladesh Which, is your budget-friendly. We also offers you free shipping  with this Asrock B550M-Itx/Ac Amd Am4 Mini-Itx Motherboard. Order Online for nationwide cash on delivery or visit our Shop. Follow us on Facebook for regular updates and offers. Subscribe our Youtube channel for reviews of gadget Products. You can call mobile number 01715143685 for a free consultation.Your comments on the following topics will accelerate our progress.


Questions :
Have question about Asrock B550M-Itx/Ac Amd Am4 Mini-Itx Motherboard? Get specific details about this product from expert.
Asrock B550M-Itx/Ac Amd Am4 Mini-Itx Motherboard review
Asrock B550M-Itx/Ac Amd Am4 Mini-Itx Motherboard price
What is Asrock B550M-Itx/Ac Amd Am4 Mini-Itx Motherboard and its function?
What is Asrock B550M-Itx/Ac Amd Am4 Mini-Itx Motherboard used for?

Please ask your question  about Asrock B550M-Itx/Ac Amd Am4 Mini-Itx Motherboard .
Please login or register to ask question

B550M-Itx/Ac Asrock Motherboard lowest price in bd

ASRock Motherboard B550M-ITX/ac price in jashore

BASIC INFORMATION
Graphics - Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU - DirectX 12, Pixel Shader 5.0 - Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers - Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports DisplayPort 1.4 Input with max. resolution up to 5K (5120x2880)@120Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required) - Supports HDR (High Dynamic Range) with HDMI 2.1 - Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 Ports - Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 Ports - Supports Microsoft PlayReady
Chipset AMD B550
BIOS - 256Mb AMI UEFI Legal BIOS with GUI support - Supports "Plug and Play" - ACPI 5.1 compliance wake up events - Supports jumperfree - SMBIOS 2.3 support - CPU, CPU VDDCR_SOC, DRAM, VPPM, +1.8VSB, VDDP Voltage Multi-adjustment
Type DDR4
Memory Specifications
Maximum Memory 64GB
Slots 2 x DDR4 DIMM Slots
Supported Memory - AMD Ryzen series CPUs (Vermeer) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series APUs (Cezanne) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series APUs (Picasso) support DDR4 3600+(OC) / 3466(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory* - Supports Extreme Memory Profile (XMP) memory modules - 15μ Gold Contact in DIMM Slots
Graphics Specifications
Max Shared Memory Shared memory default 2GB. Max Shared memory supports up to 16GB.
PORTS, CONNECTORS & SLOTS
Display Port (s) 1 x DisplayPort 1.4
HDMI 1 x HDMI Port
Internal I/O Ports - 1 x RGB LED Header - 1 x Addressable LED Header - 1 x CPU Fan Connector (4-pin) - 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
LAN Port (s) - PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111H - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE
USB (s) - 2 x USB 2.0 Ports (Supports ESD Protection) - 3 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection) - 1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection)
Wireless Communication module - Intel 802.11ac WiFi Module - Supports IEEE 802.11a/b/g/n/ac - Supports Dual-Band (2.4/5 GHz) - Supports high speed wireless connections up to 433Mbps - Supports Bluetooth 4.2 + High speed class II
WARRANTY
Manufacturing Warranty 03 Years
Special
Bundled Software Software - ASRock Motherboard Utility (A-Tuning) - ASRock Polychrome SYNC - ASRock XFast LAN UEFI - ASRock Full HD UEFI - ASRock Instant Flash
