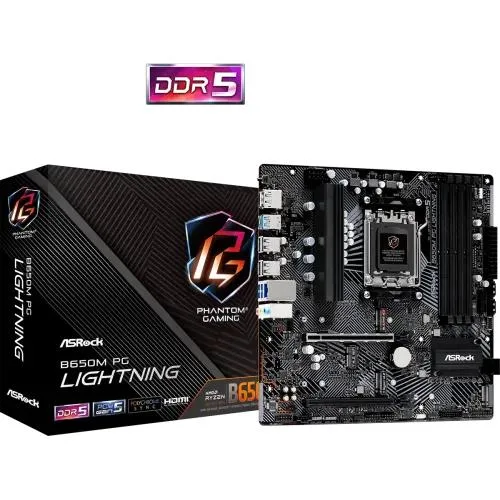

• ASRock B650M PG Lightning AM5 Micro ATX Motherboard

"Lightning AM5 Micro ATX Motherboard" by ASRock

  • Brand: ASRock
  • Product Code: ASRock B650M PG Lightning AM5 Micro ATX Motherboard
  • Availability: In Stock
  • ৳18,223

whatsapp
Qty

Description

ASRock B650M PG Lightning AM5 Micro ATX Mainboard

The ASRock Lightning is a powerful Micro ATX motherboard that supports the latest AMD Socket AM5 Ryzen 9000, 8000, and 7000 Series Processors. It features a robust 6+2+1 power phase design with Dr.MOS technology, ensuring reliable power delivery and efficient performance. The motherboard has four DDR5 DIMM slots, supporting dual-channel memory configurations with speeds up to 7200+ MHz (overclocked). This makes it an excellent choice for gamers and professionals seeking high-speed memory performance. The ASRock B650M PG Lightning offers versatile connectivity options. It includes one PCIe 4.0 x16 slot, one PCIe 3.0 x16 slot, and one M.2 Key-E slot for WiFi modules. For graphics output, the provides HDMI and DisplayPort options. Audio is handled by the Realtek ALC897 7.1 Channel HD Audio Codec with Nahimic Audio enhancement, delivering an immersive audio experience. Storage options are plentiful with four SATA3 ports, one Blazing M.2 (PCIe Gen5 x4), one Hyper M.2 (PCIe Gen4 x4), and one M.2 slot (PCIe Gen4 x2). The motherboard also boasts a comprehensive set of USB ports, including one USB 3.2 Gen2 Type-A and Type-C on the rear, one USB 3.2 Gen1 Type-C on the front, and six USB 3.2 Gen1 Type-A ports (two rear, four front). Additionally, it supports Phantom Gaming 2.5G LAN for high-speed networking. The ASRock B650M PG Lightning supports the ASRock Auto Driver Installer and BIOS Flashback features, making system setup and updates hassle-free. In Bangladesh, you can get original From Unix Network. We have a large collection of latest to purchase for your . Order Online Or Visit your Nearest Shop to get yours at lowest price. The ASRock B650M PG Lightning AM5 Motherboard comes with 3 years warranty.

The ASRock B650M PG Lightning AM5 Micro ATX Motherboard is a high-performance motherboard designed to support the latest AMD AM5 processors. It features a compact Micro ATX form factor, perfect for smaller PC builds.

This motherboard boasts a lightning-fast performance, thanks to its advanced power delivery system and robust thermal design. It supports DDR5 memory, offering blazing-fast speeds and improved efficiency for demanding applications.

Equipped with PCIe 4.0 slots, USB 3.2 Gen 2 ports, and high-speed LAN connectivity, this motherboard ensures seamless connectivity and fast data transfer rates. The ASRock B650M PG Lightning AM5 also features premium audio components for crystal-clear sound output.

Overall, this motherboard is perfect for gamers, content creators, and professionals looking for a reliable and high-performance platform to build their next PC system.

ASRock B650M PG Lightning AM5 মাইক্রো এটিএক্স মাদারবোর্ড "বাংলাদেশ" - নিরাপত্তাযুক্ত ও এসইও অপটিমাইজেশন.

Technical specifications

BASIC INFORMATION
Form Factor - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
Supported CPU - Supports AMD Socket AM5 Ryzem 9000, 8000 and 7000 Series Processors
Chipset AMD B650
Slots 4x DIMMs
Audio HD Audio Jacks: Line in / Front Speaker / Microphone
BIOS - 256Mb AMI UEFI Legal BIOS with GUI support
Expansion Slots
PCI CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode - 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode Chipset: - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module - Supports AMD CrossFire - 15μ Gold Contact in VGA PCIe Slot (PCIE1)
Graphics Specifications
Graphics Integrated AMD RDNA graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
Memory Specifications
Maximum Memory 256GB
Supported Memory - Dual Channel DDR5 Memory Technology - Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC) - Max. capacity of system memory: 256GB - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
Type DDR5
PORTS, CONNECTORS & SLOTS
Display Port (s) 1 x DisplayPort 1.4
HDMI 1 x HDMI Port
Internal I/O Ports Rear Panel I/O - 2 x Antenna Mounting Points - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) - 2 x USB 3.2 Gen1 Type-A Ports - 4 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x BIOS Flashback Button - HD Audio Jacks: Line in / Front Speaker / Microphone Connector - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers** - 1 x CPU Fan Connector (4-pin)*** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen1 Header
LAN Port (s) - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Phantom Gaming LAN Software - Smart Auto Adjust Bandwidth Control - Visual User-Friendly UI - Visual Network Usage Statistics - Optimized Default Settings for Game, Browser, and Streaming Modes - User Customized Priority Control
Supported Storage CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors
TPM (Trusted Platform Module ) - 1 x SPI TPM Header
USB (s) - 1 x USB 3.2 Gen2 Type-C (Rear) - 1 x USB 3.2 Gen2 Type-A (Rear) - 1 x USB 3.2 Gen1 Type-C (Front) - 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front) - 8 x USB 2.0 (4 Rear, 4 Front)
Special
Bundled Software Software - ASRock Motherboard Utility (Phantom Gaming Tuning) - ASRock Phantom Gaming LAN Software - ASRock Polychrome SYNC* UEFI - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash
WARRANTY
Manufacturing Warranty 3 Years

Repair and Service

Click here to "Read More"
