Asrock B660M Phantom Gaming 4 12Th Gen Micro Atx Motherboard in Bangladesh

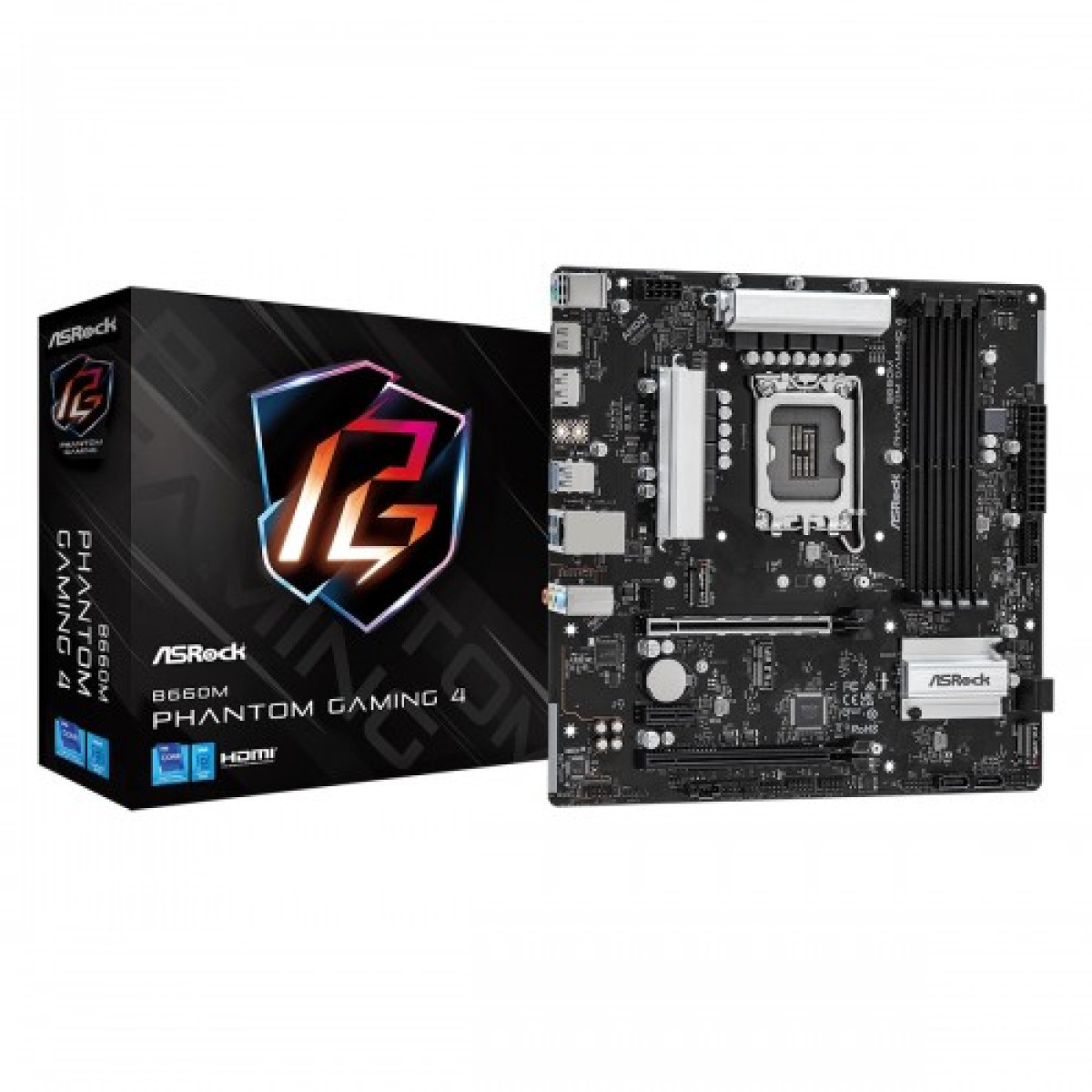

ASRock B660M Phantom Gaming 4 12th Gen Micro ATX Motherboard
The ASRock B660M Phantom Gaming 4 Motherboard supports 12th Gen Intel Core Processors (LGA1700). It features 9 Phase Dr.MOS Power Design and it supports DDR4 5000MHz (OC). It supports the lighting speed of the latest PCIe 5.0 standard. The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high-end graphic cards. It features onboard RGB headers and an addressable RGB header that allow the motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis, and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
Nahimic Audio
ASRock B660M Phantom Gaming 4 comes with Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio. Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
High Speed M.2 Solution and PCIe 4.0
This motherboard is capable of accommodating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to the previous 3rd generation, giving a lightning-fast data transferring experience. It has 4 SATA3, 2 Hyper M.2 (PCIe Gen4 x4).
Dual Graphics Outputs
The ASRock B660M Phantom Gaming 4comes with a HDMI + DisplayPort combo. It supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz and DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz.
The ASRock B660M Phantom Gaming 4 Motherboard has 03 years warranty.
What is the price of Asrock B660M Phantom Gaming 4 12Th Gen Micro Atx Motherboard ASRock in Bangladesh?
Have question about Asrock B660M Phantom Gaming 4 12Th Gen Micro Atx Motherboard? Get specific details about this product from expert.
Asrock B660M Phantom Gaming 4 12Th Gen Micro Atx Motherboard review
Asrock B660M Phantom Gaming 4 12Th Gen Micro Atx Motherboard price
What is Asrock B660M Phantom Gaming 4 12Th Gen Micro Atx Motherboard and its function?
What is Asrock B660M Phantom Gaming 4 12Th Gen Micro Atx Motherboard used for?
Please ask your question about Asrock B660M Phantom Gaming 4 12Th Gen Micro Atx Motherboard .
B660M Phantom Gaming 4 Asrock Graphics Card lowest price in bd
ASRock Graphics Card B660M Phantom Gaming 4 price in jashore
BASIC INFORMATION | |
Supported CPU | - Supports 12th Gen Intel Core Processors (LGA1700) - Digi Power design - 8 Power Phase design - Supports Intel Hybrid Technology - Supports Intel Turbo Boost Max 3.0 Technology |
Chipset | Intel B660 |
Audio | - HD Audio Jacks: Line in / Front Speaker / Microphone |
Memory Specifications | |
Maximum Memory | 128GB |
Slots | 4 x DDR4 DIMM Slots |
Type | Dual Channel DDR4 Memory Technology |
Graphics Specifications | |
Graphics | - Intel Xe Graphics Architecture (Gen 12) - Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers - Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz - Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports |
Expansion Slots | |
PCI | - 2 x PCIe x16 Slots (PCIE1/PCIE3: single at Gen4x16 (PCIE1); dual at Gen4x16 (PCIE1) / Gen3x4 (PCIE3))* - 1 x PCIe Gen3x1 Slot - Supports AMD CrossFire - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT) |
PORTS, CONNECTORS & SLOTS | |
Display Port (s) | 1 x DisplayPort 1.4 |
USB (s) | - 4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection) - 2 x USB 2.0 Ports (Supports ESD Protection) |
WARRANTY | |
Manufacturing Warranty | 3 years |
Special | |
Special Feature | ASRock Super Alloy - Premium Power Choke - Sapphire Black PCB - High Density Glass Fabric PCB ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology ASRock Steel Slot ASRock Hyper M.2 (PCIe Gen4x4) ASRock POST Status Checker (PSC) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop |
ASRock B660M Phantom Gaming 4 12th Gen Micro ATX Motherboard
- Brand: ASRock
- Product Code: B660M Phantom Gaming 4
- Availability: Out Of Stock
-
৳15,000
