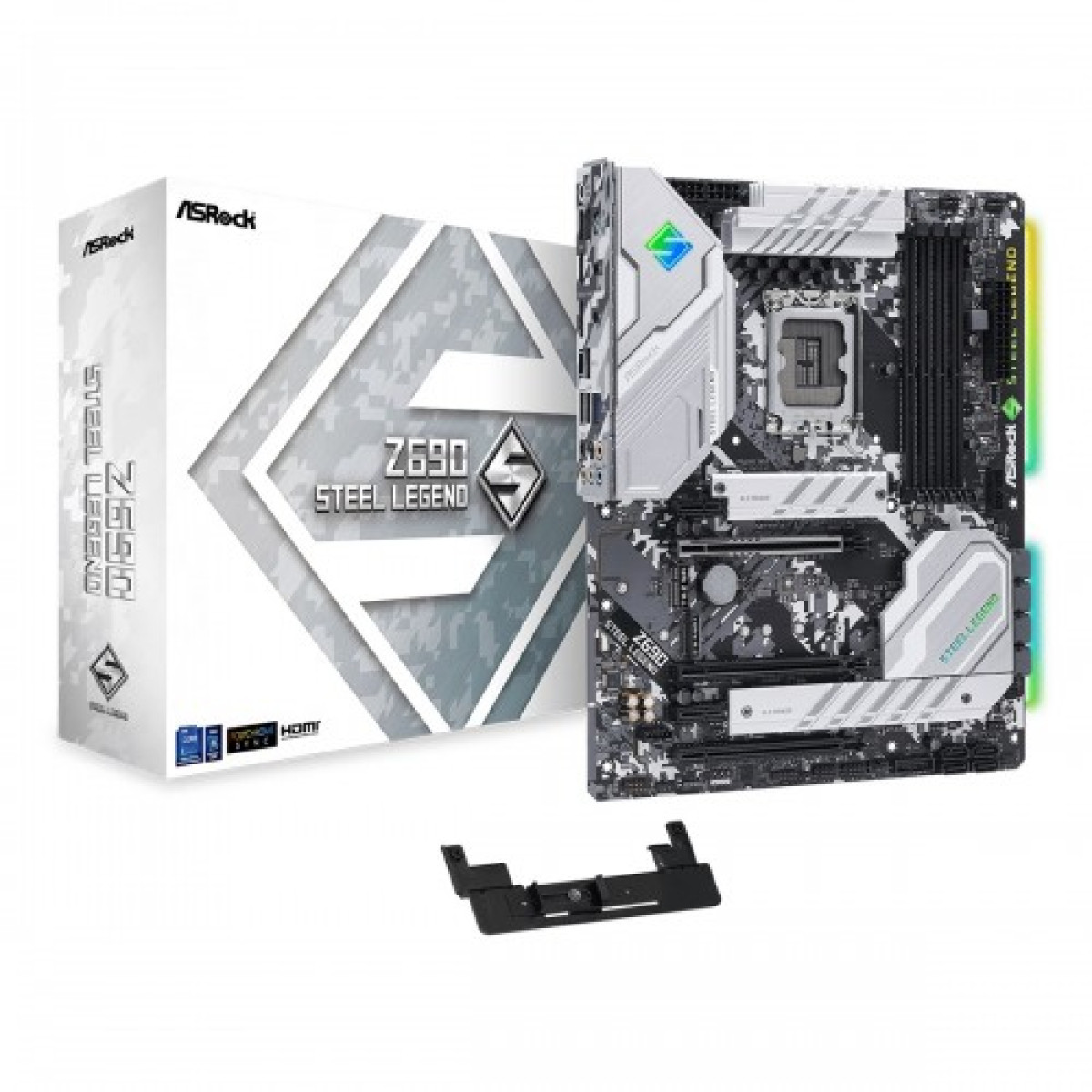

Z690 Steel Legend 12th Gen Atx Asrock Motherboard

ASRock Z690 Steel Legend 12th Gen ATX Motherboard Unix Network | Laptop Shop | Jessore Computer City
Z690 Steel Legend 12th Gen Atx Asrock Motherboard
৳28,000
Unix Network Jashore Bangladesh: ৳28,000
  • Stock: In Stock
  • Brand: ASRock
  • Model: Z690 Steel Legend 12th Gen ATX
  • SKU: 202205120836
Price and stocks may change without prior notice. Please confirm before making the payment.

Specifications

BASIC INFORMATION
Supported CPU - Supports 12th Gen Intel Core Processors (LGA1700) - Digi Power design - 13 Power Phase design - Supports Intel Hybrid Technology - Supports Intel Turbo Boost Max 3.0 Technology
Chipset Intel Z690
Audio HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
BIOS - 256Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +1.8V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment
Form Factor - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - 2oz Copper PCB
Memory Specifications
Maximum Memory 128GB
Slots 4 x DDR4 DIMM Slots
Supported Memory - Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)* - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Supports Intel® Extreme Memory Profile (XMP) 2.0 - 15μ Gold Contact in DIMM Slots
Type Dual Channel DDR4 Memory Technology
Graphics Specifications
Graphics - Intel Xe Graphics Architecture (Gen 12) - Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers - Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz - Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports
Expansion Slots
PCI - 3 x PCIe x16 Slots (PCIE2/PCIE3/PCIE5: single at Gen5x16 (PCIE2); dual at Gen5x16 (PCIE2) / Gen4x4 (PCIE3); triple at Gen5x16 (PCIE2) / Gen4x4 (PCIE3) / Gen3x4 (PCIE5))* - 2 x PCIe Gen3x1 Slots - Supports AMD CrossFire - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVi (Integrated WiFi/BT) - 15μ Gold Contact in VGA PCIe Slot (PCIE2)
PORTS, CONNECTORS & SLOTS
Display Port (s) 1 x DisplayPort 1.4
HDMI 1 x HDMI Port
Internal I/O Ports - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers** - 1 x CPU Fan Connector (4-pin)*** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** - 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) - 1 x Front Panel Audio Connector (15μ Gold Audio Connector) - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection) - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection)
LAN Port (s) - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE
Supported Storage - 4 x SATA3 6.0 Gb/s Connectors - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280/22110 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
TPM (Trusted Platform Module ) 1 x SPI TPM Header
USB (s) - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection) - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
WARRANTY
Manufacturing Warranty 3 years
Special
Special Feature ASRock USB 3.2 Gen2 - ASRock Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) - ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s) - ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s) ASRock Super Alloy - XXL Aluminum Alloy Heatsink - Premium Power Choke - 50A Dr.MOS - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) - I/O Armor - Matte Black PCB - High Density Glass Fabric PCB - 2oz Copper PCB 2.5G LAN ASRock Auto Driver Installer ASRock Steel Slot ASRock Full Coverage M.2 Heatsink ASRock Hyper M.2 (PCIe Gen4x4) ASRock Ultra USB Power ASRock POST Status Checker (PSC) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop
Bundled Software Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash - ASRock Internet Flash - ASRock Easy RAID Installer

Description

Asrock Z690 Steel Legend 12th Gen Atx Motherboard in Bangladesh

ASRock Z690 Steel Legend 12th Gen ATX Motherboard

The ASRock Z690 Steel Legend Motherboard supports 12th Gen Intel Core Processors (LGA1700). It features 13 Phase Dr.MOS Power Design and it supports DDR4 5000MHz (OC) RAM. It offers a max capacity of system memory up to 128GB. It supports Intel Extreme Memory Profile (XMP) 2.0. It is ready to unleash the full potential of future high-end graphic cards. It has a blazing fast data transfer interface with a reversible USB Type-C design that fits the connector either way. USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as the previous generation.

PCIe 5.0 and High-Speed M.2 Solution

The ASRock Z690 Steel Legend motherboard supports the lighting speed of the latest PCIe 5.0 standard. The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps. It is capable of accommodating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to the previous 3rd generation, giving a lightning-fast data transferring experience. It has 4 SATA3, 2 Hyper M.2 (PCIe Gen4 x4), 1 Hyper M.2 (PCIe Gen4 x4 & SATA3).

Nahimic Audio

The ASRock Z690 Steel Legend is featured with Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output, or even HDMI. It is also equipped with Realtek ALC897 7.1 CH HD Audio Codec.

Polychrome RGB Sync-certified

ASRock Z690 Steel Legend is equipped with onboard RGB headers and an addressable RGB header that allow the motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis, and so on.

The ASRock Z690 Steel Legend Motherboard has 03 years warranty.

What is the price of Asrock Z690 Steel Legend 12th Gen Atx Motherboard ASRock in Bangladesh?

The latest price of Asrock Z690 Steel Legend 12th Gen Atx Motherboard ASRock in Bangladesh is ৳28,000. You can buy the ASRock Asrock Z690 Steel Legend 12th Gen Atx Motherboard ASRock at best price from our website or visit Unix Network Showroom Jessore Computer city . Unix Network offers you Asrock Z690 Steel Legend 12th Gen Atx Motherboard with the best price in Bangladesh Which, is your budget-friendly. We also offers you free shipping  with this Asrock Z690 Steel Legend 12th Gen Atx Motherboard. Order Online for nationwide cash on delivery or visit our Shop. Follow us on Facebook for regular updates and offers. Subscribe our Youtube channel for reviews of gadget Products. You can call mobile number 01715143685 for a free consultation.Your comments on the following topics will accelerate our progress.
