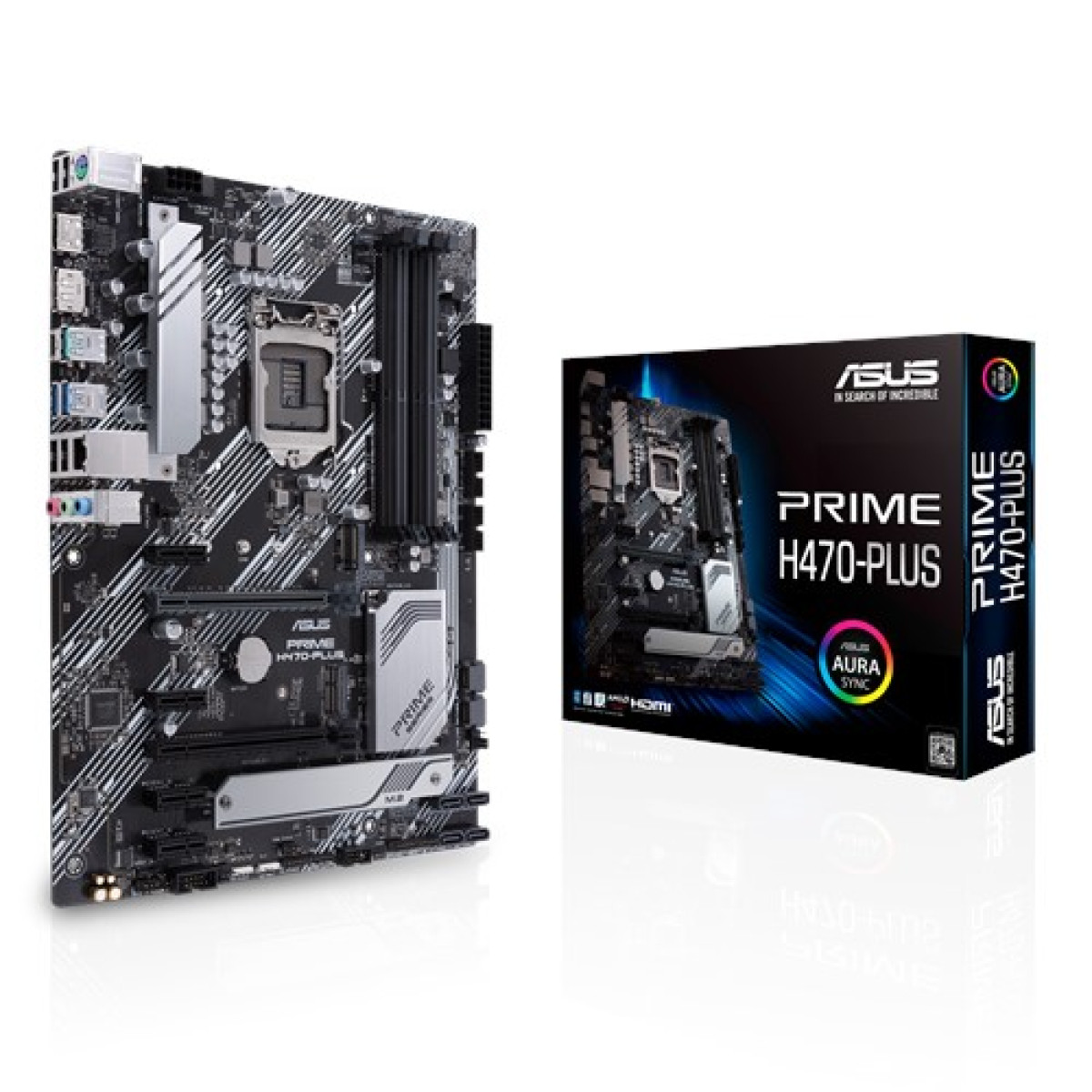

Asus Prime H470-Plus Intel 10th Gen ATX Motherboard
Key highlights
- Form Factor: ATX Form Factor 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )
- Supported CPU: Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
- Chipset: Intel H470
- BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
- M.2 Socket: 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode)
Description
Shop Asus Prime H470-Plus ATX Motherboard in Jashore
Elevate Your Gaming and Workstation Setup with the Asus Prime H470-Plus
The Asus Prime H470-Plus Intel 10th Gen ATX Motherboard is designed for users who demand top-notch performance and reliability. This motherboard is equipped with the latest technology that supports Intel's 10th Gen processors, enabling you to experience faster processing speeds and enhanced multitasking capabilities. With its ATX form factor, it fits perfectly in a variety of cases, making it ideal for both gaming and professional workstations.
One of the standout features of the Asus Prime H470-Plus is its advanced cooling solutions. The motherboard comes with multiple fan headers and temperature sensors, ensuring that your system remains cool even during intensive tasks. Enhanced connectivity is another significant benefit, with USB 3.2 Gen 2 ports and M.2 slots for lightning-fast data transfer and storage options. Additionally, the board supports up to 64GB of DDR4 RAM, allowing for smooth performance even with heavy applications running simultaneously.
Built with high-quality components, the Asus Prime H470-Plus guarantees durability and longevity, making it a smart investment for both gamers and professionals in Bangladesh. With the Asus AI Suite, you can easily monitor and tweak system performance for optimal results. Upgrade your setup today with a motherboard that delivers exceptional performance and reliability.
Upgrade Your PC with Asus H470-Plus Motherboard Today
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | ATX Form Factor 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm ) |
| Supported CPU | Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | Intel H470 |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Expansion Slots | |
| M.2 Socket | 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode) |
| PCI | Intel 10th Gen Processors 1 x PCIe 3.0 x16 (x16 mode) Intel H470 Chipset 1 x PCIe 3.0 x16 (x4 mode) 4 x PCIe 3.0 x1 |
| Graphics Specifications | |
| Graphics | Integrated Graphics Processor 1 x DisplayPort 1.4 1 x HDMI 1.4b Supports AMD 2-Way CrossFireX Technology |
| Memory Specifications | |
| Maximum Size | 128GB |
| Slots | 4 x DIMM |
| Supported Memory | 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Supports Intel Extreme Memory Profile (XMP) OptiMem |
| Type | Dual Channel Memory Architecture |
| PORTS, CONNECTORS & SLOTS | |
| Audio Jack Combo | Realtek ALC887 8-Channel High Definition Audio CODEC - Supports: Jack-detection, Multi-recording, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors |
| Display Port (s) | 1 x DisplayPort 1.4 |
| HDMI | 1 x HDMI 1.4b |
| LAN Port (s) | Realtek RTL8111H |
| Supported Storage | Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports Intel H470 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode) 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel Rapid Storage Technology supports Intel Optane Memory Ready |
| USB (s) | Rear USB Port ( Total 8 ) 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x Type-C) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 4 x USB 2.0 port(s)(4 x Type-A) Front USB Port ( Total 7 ) 4 x USB 3.2 Gen 1 port(s) 3 x USB 2.0 port(s) |
| Internal I/O Connectors | 1 x CPU Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 3 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode) 1 x M.2 with E key for Wi-Fi module 1 x SPI TPM header 6 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header |
| Special | |
| Special Feature | Wireless Data Network: M.2 slot only (Key E) (Support PCIe interface) [ROG Exclusive Software] - RAMCache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS® Sound Unbound - Overwolf - Anti-virus software [ASUS Exclusive Software] Armoury Crate - Aura Creator - Aura Sync AI Suite 3 - Performance And Power Saving Utility: -TurboV EVO, EPU, Digi+ VRM, Fan Xpert 4 - EZ update AI Charger WinRAR [UEFI BIOS] ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS Q-Design - ASUS Q-DIMM - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - ASUS Q-Slot ASUS Thermal Solution - Aluminum M.2 heatsink ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - Clear CMOS header - Pre-mounted I/O shield - SafeSlot AURA Sync - Standard RGB header(s) - Addressable Gen 2 RGB header(s) Onboard red LED lighting accent Rear audio USB Type-C connector |
| WARRANTY | |
| Manufacturing Warranty | 3 Years |
