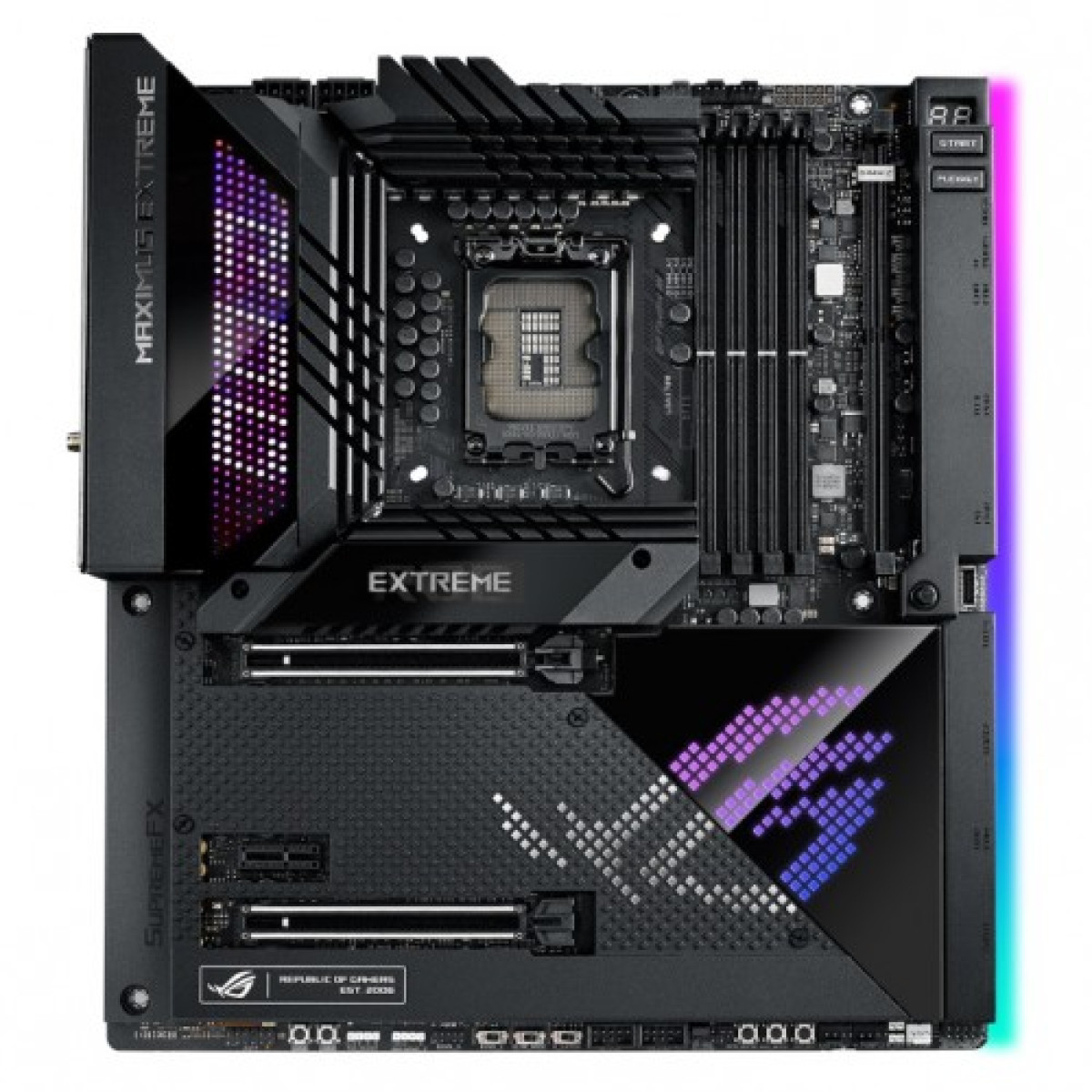

Asus ROG MAXIMUS Z690 EXTREME 12th Gen E-ATX Motherboard

The Asus ROG MAXIMUS Z690 EXTREME 12th Gen E-ATX Motherboard supports Socket LGA1700 for 12th Gen Intel Core, Pentium Gold & Celeron Processors. It features ASUS-exclusive tools including AI Overclocking, AI Cooling, AI Networking, and Two-Way AI Noise-Cancelation for easy configuration. It has 24+1 teamed power stages rated for 105 A, ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors. 24+1 teamed power stages rated for 105 A, ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors. It comes with onboard Wi-Fi 6E, Marvell AQtion 10Gb, Intel 2.5Gb Ethernet, and ASUS LANGuard. It delivers the fastest Gaming Connectivity: PCIe 5.0, Gen 5 M.2 slots, USB 3.2 Gen 2x2 front-panel connector with Thunderbolt 4 support, rear triple USB Type-C ports. It also has ROG SupremeFX ALC4082 codec with ESS ES9018Q2C DAC for high-fidelity audio. It has AniMe Matrix LED display, 2� LiveDash OLED, ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 RGB headers. The Asus ROG MAXIMUS Z690 EXTREME comes with 3 years of warranty.

What is the price of Asus Rog Maximus Z690 Extreme 12Th Gen E-Atx Motherboard ASUS (Intel) in Bangladesh?


The latest price of Asus Rog Maximus Z690 Extreme 12Th Gen E-Atx Motherboard ASUS (Intel) in Bangladesh is . You can buy the Asus Asus Rog Maximus Z690 Extreme 12Th Gen E-Atx Motherboard ASUS (Intel) at best price from our website or visit Unix Network Showroom Jessore Computer city . Unix Network offers you Asus Rog Maximus Z690 Extreme 12Th Gen E-Atx Motherboard with the best price in Bangladesh Which, is your budget-friendly. We also offers you free shipping  with this Asus Rog Maximus Z690 Extreme 12Th Gen E-Atx Motherboard. Order Online for nationwide cash on delivery or visit our Shop. Follow us on Facebook for regular updates and offers. Subscribe our Youtube channel for reviews of gadget Products. You can call mobile number 01715143685 for a free consultation.Your comments on the following topics will accelerate our progress.


Questions :
Have question about Asus Rog Maximus Z690 Extreme 12Th Gen E-Atx Motherboard? Get specific details about this product from expert.
Asus Rog Maximus Z690 Extreme 12Th Gen E-Atx Motherboard review
Asus Rog Maximus Z690 Extreme 12Th Gen E-Atx Motherboard price
What is Asus Rog Maximus Z690 Extreme 12Th Gen E-Atx Motherboard and its function?
What is Asus Rog Maximus Z690 Extreme 12Th Gen E-Atx Motherboard used for?

Please ask your question  about Asus Rog Maximus Z690 Extreme 12Th Gen E-Atx Motherboard .
Please login or register to ask question

Rog Maximus Z690 Extreme Asus Motherboard lowest price in bd

Asus Motherboard ROG MAXIMUS Z690 EXTREME price in jashore

BASIC INFORMATION
Audio Features - SupremeFX Shielding Technology - ESS® SABRE9018Q2C DAC/AMP - LED-illuminated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover
Graphics 2 x Intel Thunderbolt 4 ports (USB Type-C) support DisplayPort 1.4 and Thunderbolt video outputs
Supported CPU Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors* Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset Z690
BIOS 2 x 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor EATX 30.5cm x 27.7cm Audio ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback
Type DDR5
Memory Specifications
Maximum Memory 128GB
Supported Memory DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/5000(OC)/4800 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II
Expansion Slots
M.2 Socket Supports 5 x M.2 slots
PCI Intel 12th Gen Processors 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)** Intel Z690 Chipset 1 x PCIe 3.0 x1 slot
PORTS, CONNECTORS & SLOTS
HDMI 1 x HDMI port
Internal I/O Ports 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers 2 x 4-pin Radiator Fan headers 2 x W_PUMP+ headers 1 x WB_SENSOR header 1 x 2-pin Water In header 1 x 2-pin Water Out header 1 x 3-pin Water Flow header Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector 1 x 6-pin PCIe Graphics Card connector Storage related 3 x M.2 slots (Key M) 1 x DIMM.2 slot supports 2 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x Intel® Thunderbolt 4 port (USB Type-C®) 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers 1 x Addressable Gen 2 header 1 x AURA RGB header 1 x BIOS Switch button 2 x BCLK button 1 x FlexKey button 1 x Front Panel Audio header (AAFP) 1 x LN2 Mode jumper 1 x Osc sence header 12 x ProbeIt Measurement Points 1 x ReTry button 1 x RSVD switch 1 x RSVD header 1 x Safe Boot button 1 x Slow Mode switch 1 x Start button 1 x V_Latch switch 1 x 10-1 pin System Panel header 1 x Thermal Sensor header
LAN Port (s) 1 x Intel 2.5Gb Ethernet 1 x Marvell 10Gb Ethernet TUF LANGuard
TPM (Trusted Platform Module ) 1 x SPI TPM header (14-1pin)
Wireless Communication module Intel Wi-Fi 6E

Write a review

Note: HTML is not translated!
    Bad           Good


Asus ROG MAXIMUS Z690 EXTREME 12th Gen E-ATX Motherboard

  • Brand: Asus
  • Product Code: ROG MAXIMUS Z690 EXTREME
  • Availability: Out Of Stock
360 Super Coins:
