Basic Information
Supported CPU intel® Socket 1151 9th / 8th Gen intel® Core™, Pentium® Gold and Celeron® Processors
Supports intel® 14 nm CPU
Supports intel® Turbo Boost Technology 3.0
Chipset intel® Z390
BIOS 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
Form Factor ATX Form Factor
12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Expansion Slots
PCI 1 x PCIe 3.0/2.0 x16 (x16 or x8+x4+x4)
1 x PCIe 3.0/2.0 x16 (max at x4 mode) *1
4 x PCIe 3.0/2.0 x1 *1
M.2 Socket 1 x M.2 Socket 3, with M key
Memory
Type Dual Channel Memory Architecture
Slots 4 x DIMM DDR4
Supported Memory 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Supports intel® Extreme Memory Profile (XMP)
Maximum Mamory 64GB
Graphics
Graphics Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz
Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
Supports intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays
Connector & Ports
HDMI 1 x HDMI
Display Port (s) 1 x DisplayPort
USB (s) intel® Z390 Chipset :
2 x USB 3.1 Gen 2 port(s) (2 at back panel, Type-A)
intel® Z390 Chipset :
8 x USB 3.1 Gen 1 port(s) (4 at back panel, Type-A, 4 at mid-board)
intel® Z390 Chipset :
3 x USB 2.0/1.1 port(s) (3 at mid-board)
LAN Port (s) 1 x LAN (RJ45) port(s)
Supported Storage intel® Z390 Chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*2
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*3
6 x SATA 6Gb/s port(s), gray, *3
Support Raid 0, 1, 5, 10
intel® Rapid Storage Technology supports
intel® Optane™ Memory Ready
intel® CPU with intel® Rapid Storage Technology support (RAID 0 & RAID 1)
PCIEX16_1 slot supports up to 3 intel® PCIe NVME SSDs via a Hyper M.2 X16 series Card
Audio 1 x Front panel audio connector(s) (AAFP)
Back I/O Ports 3 x 8-channel Audio I/O
Internal I/O Ports 2 x Aura RGB Strip Header(s)
2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)
1 x USB 2.0 1-port connector(s) support(s) additional 1 USB 2.0 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (4 -pin)
1 x CPU OPT Fan connector(s) (4 -pin)
2 x Chassis Fan connector(s) (4 -pin)
1 x AIO_PUMP connector ()
1 x S/PDIF out header(s)
1 x 8-pin EATX 12 V Power connector
1 x 24-pin EATX Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x MemOK! II switch(es)
1 x Clear CMOS jumper(s)
1 x System panel connector
Warranty Information
Manufacturing Warranty 3 Years Limited

Description:

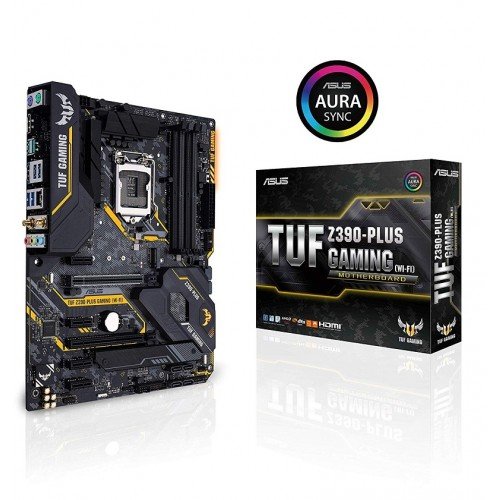

Asus TUF Z390 PLUS GAMING WIFI 9th Gen Motherboard

Description:

What is the price of Asus TUF Z390 PLUS GAMING WIFI 9th Gen Motherboard computer accessories in Bangladesh?

The latest price of Asus TUF Z390 PLUS GAMING WIFI 9th Gen Motherboard computer accessories in Bangladesh is ৳17,500.00. You can buy the Asus Asus TUF Z390 PLUS GAMING WIFI 9th Gen Motherboard computer accessories at best price from our website or visit Unix Network Showroom Jessore Computer city . You can call mobile number 01715143685 for a free consultation


Questions :
Have question about Asus TUF Z390 PLUS GAMING WIFI 9th Gen Motherboard? Get specific details about this product from expert.

Please ask your question  about Asus TUF Z390 PLUS GAMING WIFI 9th Gen Motherboard .
Please login or register to ask question

Asus TUF Z390 PLUS GAMING WIFI 9th Gen Motherboard lowest price in bd

Asus TUF Z390 PLUS GAMING WIFI 9th Gen Motherboard price in jashore

Write a review

Note: HTML is not translated!
    Bad           Good


Asus TUF Z390 PLUS GAMING WIFI 9th Gen Motherboard

  • Brand: Asus
  • Product Code: Asus TUF Z390-PLUS GAMING (WI-FI) 9th Gen Motherboard
  • Availability: Sold Out
