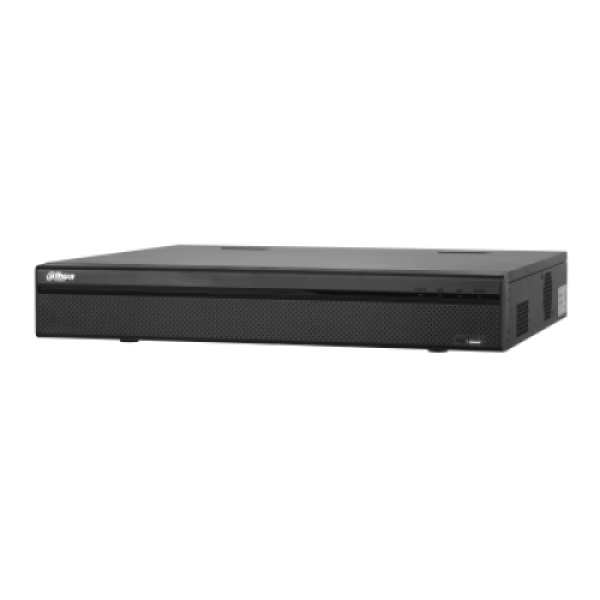

Dahua 4432-4K 32 Channel NVR

• 32 Channel 1.5U 4K&H.265 Lite Network Video Recorder

• H.265/H.264 codec decoding

• Max 200Mbps Incoming Bandwidth

• Up to 8MP Resolution for Preview and Playback

• HDMI/VGA simultaneous video output

• Support ANR technology to enhance the storage reliability when the network break down


System

• Main Processor Quad-core embedded processor

• Operating System Embedded LINUX


•  Interface 1 HDMI, 1 VGA

• Resolution 3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768

• Multi-screen Display 1/4/8/9/16

• OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording


• Trigger Events Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips

• Video Detection Motion Detection, MD Zones: 396(22×18), Video Loss & Tampering

• Alarm input 16 Channel, Low Level Effective,

• Green Terminal Interface

• Relay Output 4 Channel, NO/NC Programmable,

• Green Terminal Interface

• Playback and Backup

• Playback 1/4/8/16

• Search Mode Time/Date, Alarm, MD & Exact search (accurate to second), Smart search

• Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play,Next File, Previous File, Next Camera,Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom

• Backup Mode USB Device/Network


• Internal HDD 4 SATA III Port, Up to 6 TB capacity for each HDD

• HDD Mode Single


• USB 2 USB Ports (1 USB2.0, 1 USB3.0)

• RS232 1 Port, for PC Communication and Keyboard

• RS485 1 Port, for PTZ Control

• Third-party Support Dahua, Arecont Vision, AXIS, Bosch, Brickcom,Canon, CP Plus, Dynacolor, Honeywell, Panasonic,


• Input 16/32 Channel

• Two-way Talk 1 Channel Input, 1 Channel Output, RCA

• Recording Compression H.265/H.264

• Resolution 8Mp/ 6Mp/ 5MP/ 4MP/ 3MP/ 1080P/ 1.3MP/ 720P etc.

• Record Rate 200Mbps

• Bit Rate 16Kbps ~ 20Mbps Per Channel

• Record Mode Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Tampering, Video Loss), Stop

• Record Interval 1 ~ 120 min (default: 60 min), Pre-record:

• 1 ~ 30 sec, Post-record: 10 ~ 300 sec


• Interface 2 RJ-45 Ports(10/100/1000Mbps)

• Ethernet Port 2 Ethernet Ports Joint Working or 2 Independent

• 1000Mbps Ethernet Port

• Network Function HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DNS, IP Filter, PPPoE,DDNS, FTP,

• IP Search (Support Dahua IP camera, DVR, NVS, etc.), Easy4ip


• Access 128 users

• Smart Phone iPhone, iPad, Android

• Interoperability ONVIF 2.4, CGI Conformant


• Power Supply AC100V ~ 240V, 50 ~ 60 Hz

• Power Consumption <11.7W (Without HDD)


• 1.5U, 440mm×411.1mm×76mm, (17.3″ x 16.2″ x 3.0″)

• Net Weight 4.5kg (9.9 lb) (without HDD)

• Gross Weight 7kg(15.4 lb)(without HDD)
