Basic Information

Supported CPU Support for 8th Generation intel® Core™ i7 processors/intel® Core™ i5 processors/intel® Core™ i3 processors/intel® Pentium® processors/intel® Celeron® processors in the LGA1151 package

L3 cache varies with CPU

Chipset intel® B360 Express Chipset

BIOS 2 x 128 Mbit flash

Use of licensed AMI UEFI BIOS

Support for Dual BIOS™

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form Factor ATX Form Factor; 30.5cm x 22.5cm

Expansion Slots

PCI 1 x PCI Express x16 slot, running at x16 (PCIEX16)

* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

1 x PCI Express x16 slot, running at x4 (PCIEX4)

* The PCIEX4 slot shares bandwidth with the PCIEX1_2, PCIEX1_3, and PCIEX1_4 slots. When the PCIEX1_2, PCIEX1_3, or PCIEX1_4 slot is populated, the PCIEX4 slot operates at up to x1 mode.

4 x PCI Express x1 slots

(All of the PCI Express slots conform to PCI Express 3.0 standard.)

M.2 Socket 1 x M.2 Socket 1 connector for an intel® CNVi wireless module only (CNVI)

Memory

Type 4 x DDR4 DIMM sockets supporting

Slots Dual channel memory architecture

Supported Memory Support for DDR4 2666/2400/2133 MHz memory modules

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

* To support 2666 MHz or XMP memory, you must install an 8th Generation intel® Core™ i7/i5 processor.

Maximum Mamory 64 GB

Graphics

Graphics Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies

Max Shared Memory 1GB

Connector & Ports

HDMI 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz

* Support for HDMI 1.4 version and HDCP 2.2.

USB (s) 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel

5 x USB 3.1 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)

6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

* The CNVi connector shares bandwidth with the F_USB2 header. When a Wi-Fi module is populated in the CNVi connector, one of the USB 2.0/1.1 ports routed to the F_USB2 header becomes unavailable.

LAN Port (s) Realtek® GbE LAN chip (10/100/1000 Mbit)

Supported Storage 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_32G)

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) (M2P_16G)

6 x SATA 6Gb/s connectors

* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

intel® Optane™ Memory Ready

Audio Realtek® ALC892 codec

High Definition Audio

2/4/5.1/7.1-channel

Support for S/PDIF Out

Internal I/O Ports 1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

3 x system fan headers

1 x RGB LED strip header

6 x SATA 6Gb/s connectors

2 x M.2 Socket 3 connectors

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

1 x USB 3.1 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Thunderbolt™ add-in card connector

1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

1 x parallel port header

1 x serial port header

1 x Clear CMOS jumper

Warranty Information

Manufacturing Warranty 03 years

Description:

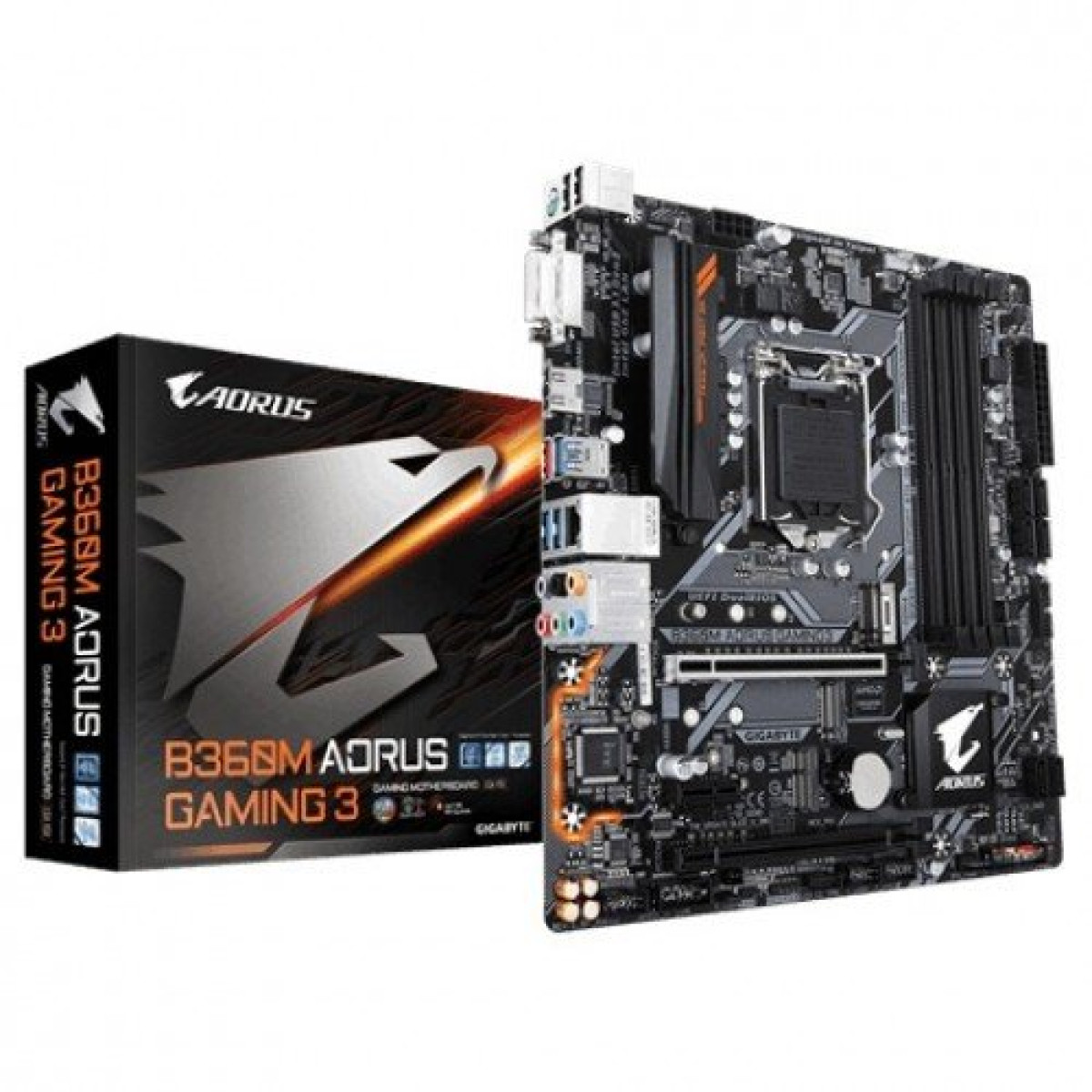

Gigabyte B360M AORUS GAMING 3 8th Gen Motherboard
