Key highlights
- Form Factor: Mini-ITX Form Factor; 17.0cm x 17.0cm
- Supported CPU: AMD Ryzen™ 2nd Generation processors AMD Ryzen™ with Radeon™ Vega Graphics processors AMD Ryzen™ 1st Generation processors
- Chipset: AMD B450
- BIOS: 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- M.2 Socket: 1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
Description

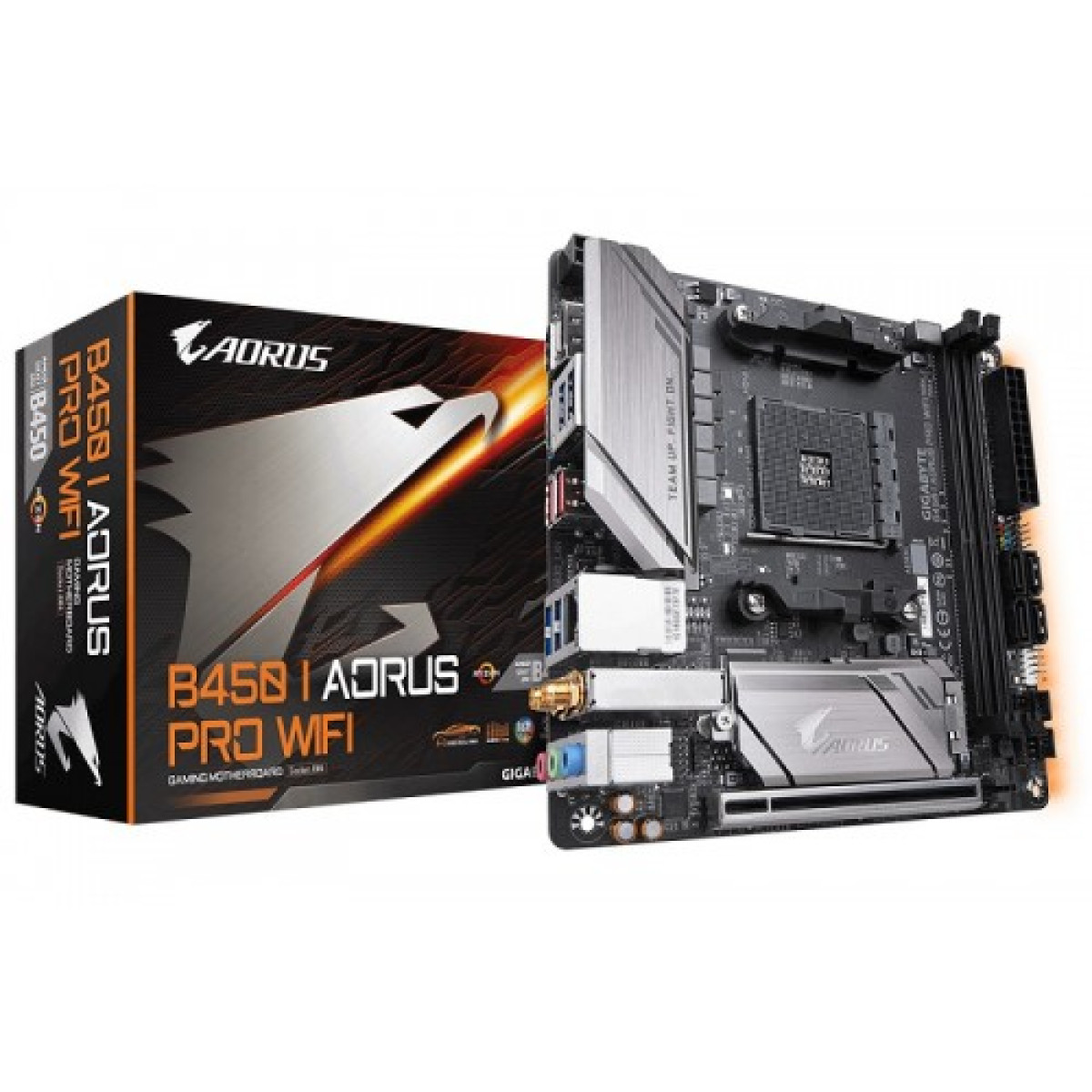

Gigabyte B450 I AORUS PRO WIFI Mini-ITX Motherboard for Gamers
Gigabyte B450 I AORUS PRO WIFI: Compact Powerhouse
The Gigabyte B450 I AORUS PRO WIFI Mini-ITX motherboard is designed for gamers and PC builders seeking a powerful yet compact solution. With its AMD B450 chipset, this motherboard supports the latest Ryzen processors, ensuring top-notch performance for gaming and multitasking. Integrated WIFI allows seamless connectivity without cluttering your build with extra adapters.
This motherboard features dual-channel DDR4 memory support, with speeds up to 3200MHz, making it perfect for high-performance applications and gaming. The advanced thermal design ensures optimal cooling, which is crucial for maintaining performance during intense gaming sessions. The Smart Fan 5 technology allows users to customize fan settings for optimal airflow, keeping your system cool and quiet.
With RGB Fusion 2.0, you can personalize your build with stunning lighting effects that sync with other AORUS components. The PCIe Gen3 x4 NVMe slot supports the latest SSDs, offering lightning-fast data transfer speeds. Additionally, the motherboard is equipped with multiple USB 3.1 Gen2 ports, providing ample connectivity options for peripherals.
High-Performance AMD Motherboard for Compact Builds
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | Mini-ITX Form Factor; 17.0cm x 17.0cm |
| Supported CPU | AMD Ryzen™ 2nd Generation processors AMD Ryzen™ with Radeon™ Vega Graphics processors AMD Ryzen™ 1st Generation processors |
| Chipset | AMD B450 |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Expansion Slots | |
| M.2 Socket | 1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) |
| PCI | 1 x PCI Express x16 slot, running at x16(Note) (The PCIEX16 slot conforms to PCI Express 3.0 standard.) |
| Graphics Specifications | |
| Max Shared Memory | 16 GB |
| Graphics | 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version. 2 x HDMI ports, supporting a maximum resolution of 4096x2160@60 Hz(Note) * Support for HDMI 2.0 version and HDCP 2.2.(Note) * One of HDMI function is limited if using an AMD Athlon™ 200-series APU. Support for up to 3 displays at the same time |
| Memory Specifications | |
| Maximum Size | 32 GB |
| Slots | 2 x DIMM |
| Supported Memory | Support for DDR4 3200(O.C.)/2933/2667/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules * ECC function is limited if using an AMD Athlon™ 200-series APU. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Type | Dual Channel DDR4 Memory Technology |
| PORTS, CONNECTORS & SLOTS | |
| Audio Jack Combo | Realtek® ALC1220-VB codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out |
| Display Port (s) | 1 x DisplayPort |
| HDMI | 2 x HDMI |
| LAN Port (s) | Intel® GbE LAN chip (10/100/1000 Mbit) Wi-Fi 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5 Support for 11ac 160 MHz wireless standard and up to 1.73 Gbps data rate * Actual data rate may vary depending on environment and equipment. ** Only support for Windows 10 64-bit. |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 |
| USB (s) | Chipset: 2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel 2 x USB 3.1 Gen 1 ports available through the internal USB header 2 x USB 2.0/1.1 ports available through the internal USB header Integrated in the APU: 4 x USB 3.1 Gen 1 ports on the back panel |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x digital LED strip header 1 x CPU cooler LED strip/RGB LED strip header 4 x SATA 6Gb/s connectors 1 x M.2 Socket 3 connector 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x speaker header 1 x USB 3.1 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper 1 x chassis intrusion header |
| WARRANTY | |
| Manufacturing Warranty | 03 years |
