Basic Information
Supported CPU - Support for an intel Core 2 Extreme processor/ intel Core 2 Quad processor/intel Core 2 Duo processor/ intel Pentium processor/intel Celeron processor in the LGA775 package (Go to GIGABYTE's website for the latest CPU support list.)
- L2 cache varies with CPU
Chipset North Bridge: intel G41 Chipset
BIOS - Use of licensed AWARD BIOS
- Support for DualBIOS
- PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
- Support for BIOS
- Support for Xpress BIOS Rescue
Form Factor Micro ATX Form Factor; 24.4cm x 21.0cm
Expansion Slots
PCI 1 x PCI Express x16 slot, running at x16
1 x PCI Express x1 slot
2 x PCI slots
Memory
Type DDR3, DDR2:
Graphics
Max Shared Memory DDR3:
2 x 1.5V DDR3 DIMM sockets supporting up to 8 GB of system memory (Note 1)
Dual channel memory architecture
Support for DDR3 1333(O.C.)/1066/800 MHz memory modules
DDR2:
2 x 1.8V DDR2 DIMM sockets supporting up to 8 GB of system memory (Note 1)
Dual channel memory architecture
Support for DDR2 1066(O.C.)/800/667 MHz memory modules
(Note: Mixed mode, populating DDR2 and DDR3 memory modules simulta- neously is not supported. Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)
Connector & Ports
USB (s) USB 2.0 Ports 4
Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets connected to the internal USB headers)
2 x USB 2.0/1.1 headers
4 x USB 2.0/1.1 ports
LAN Port (s) 1 x Atheros AR8151 chip (10/100/1000 Mbit)
Supported Storage 1 x IDE connector supporting ATA-100/66/33 and up to 2 IDE devices
4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices
iTE IT8718F chip:
1 x floppy disk drive connector supporting up to 1 floppy disk drive
Audio High Definition Audio
1 x front panel audio header
3 x audio jacks (Line In/Line Out/Microphone)
Internal I/O Ports I/O Controller : iTE IT8718F
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
1 x floppy disk drive connector
1 x IDE connector
4 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x CD In connector
1 x S/PDIF Out header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x clearing CMOS jumper
D-Sub (s) 1 x D-Sub port
Warranty Information
Manufacturing Warranty 3 Years
Description:

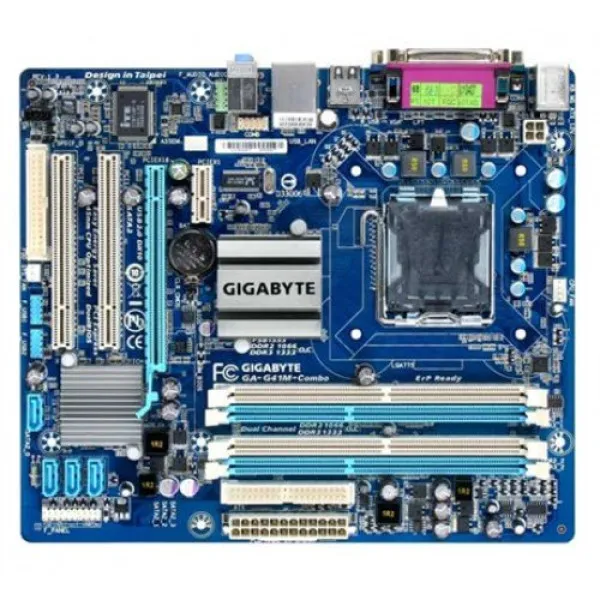

Gigabyte GA G41M Combo Motherboard
Description:
What is the price of Gigabyte GA G41M Combo Motherboard computer accessories in Bangladesh?
Have question about Gigabyte GA G41M Combo Motherboard? Get specific details about this product from expert.
Please ask your question about Gigabyte GA G41M Combo Motherboard .
Gigabyte GA G41M Combo Motherboard lowest price in bd
Gigabyte GA G41M Combo Motherboard price in jashore
Gigabyte GA G41M Combo Motherboard
- Brand: Gigabyte
- Product Code: Gigabyte GA-G41M-Combo Motherboard
- Availability: Sold Out
-
৳5,000
