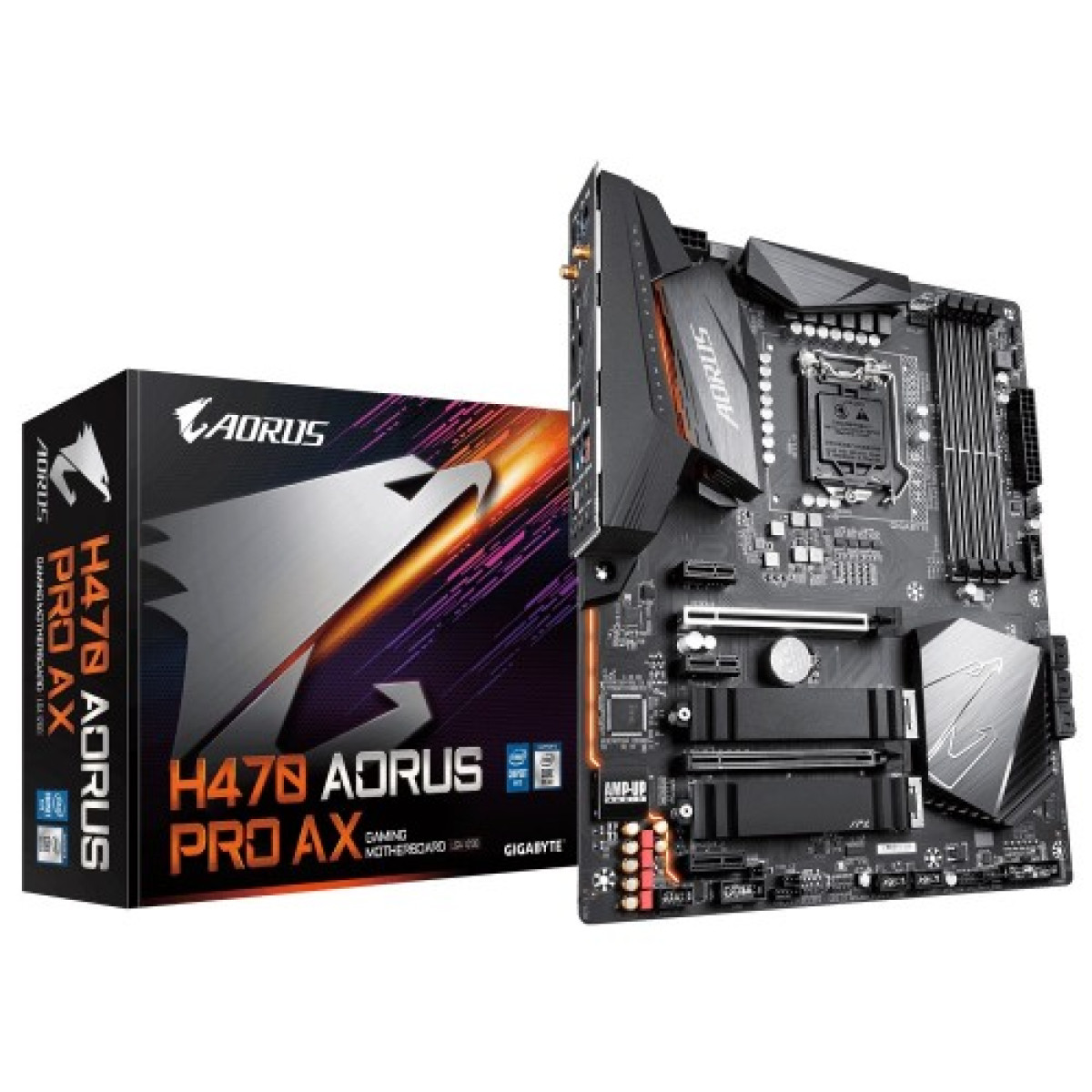

• Gigabyte H470 Aorus Pro AX 10th Gen WiFi ATX Motherboard

Gigabyte H470 Aorus Pro AX 10th Gen WiFi ATX Motherboard

Shards of the Void; Borders Disappear Fusing different materials and surface textures with negative space to form a juxtaposition and showcase a stylistic effect where the boundaries between components are not clearly defined. It creates a multi-dimensional design that seemingly cuts through space and time. H470 AORUS PRO AX motherboard uses an 11+1 phases digital PWM + Low RDS(on) MOSFETs design to support the latest 10-core Intel Core CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability. With the best quality components and GIGABYTE R&D design capability, the H470 AORUS is a true beast among motherboards. The maximum memory capacity on the H470 motherboard is 128GB. After Intel updated the memory reference code, a single slot can support up to 32GB. Therefore with populated 2 DIMM per channel on both channels, total memory capacity is 128GB, which was only available on High-End Desktop (HEDT) platforms. For users who always run out of memory capacity, there is more bandwidth now for memory-intensive applications such as rendering and video editing. AORUS Gaming Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system's potential. With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high-speed M.2 SSDs as it helps to dissipate heat before it becomes an issue. With Smart Fan, 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan, but 5 more hybrid fan headers that support both PWM and Voltage mode fans have also been introduced to make the motherboard more liquid cooling friendly. Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate through the Hybrid Fan Pin Headers—giving you absolute mastery over your PC. All Hybrid Fan Headers can automatically detect the type of cooling device whether it be a fan or pump with different PWM or Voltage mode. Choose from different modes, Quiet to Full Speed, to match your system usage preferences. For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds. A high-end product needs to be future-proof so your system stays up-to-date with the latest technology. H470 AORUS PRO AX provides all next-generation network, storage, and WIFI connectivity to keep you up to speed. Intel Wireless solution supports 802.11ax, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections, and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission. Intel's native USB 3.2 host controller provides USB 3.2 ports with speeds up to 10Gbps. With twice the bandwidth compared to its previous generation as well as backward compatibility with USB 2.0 and 3.0, the much-improved USB 3.2 protocol is available over the new reversible USB Type-C and the traditional USB Type-A connector for better compatibility over a wider range of devices. ALC1220 120dB(A) SNR HD Audio with Smart Headphone Amp automatically detects impedance of your head-worn audio device, preventing issues such as low volume and distortion. Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard. GIGABYTE is reputable for its product durability and high-quality manufacturing process. Needless to say, we use the best components we can find for the H470 AORUS motherboard and reinforce every slot to make each of them solid and durable.


What is the price of Gigabyte H470 Aorus Pro AX 10th Gen WiFi ATX Motherboard in Bangladesh?

The latest price of Gigabyte H470 Aorus Pro AX 10th Gen WiFi ATX Motherboard in Bangladesh is . You can buy the Gigabyte H470 Aorus Pro AX 10th Gen WiFi ATX Motherboard at best price from our website or visit Unix Network Showroom Jessore Computer city . Unix Network offers you Gigabyte H470 Aorus Pro AX 10th Gen WiFi ATX Motherboard with the best price in Bangladesh Which, is your budget-friendly. We also offers you free shipping  with this Gigabyte H470 Aorus Pro AX 10th Gen WiFi ATX Motherboard. Order Online for nationwide cash on delivery or visit our Shop. Follow us on Facebook for regular updates and offers. Subscribe our Youtube channel for reviews of gadget Products. You can call mobile number 01715143685 for a free consultation.Your comments on the following topics will accelerate our progress.


Questions :
Have question about Gigabyte H470 Aorus Pro AX 10th Gen WiFi ATX Motherboard? Get specific details about this product from expert.
Gigabyte H470 Aorus Pro AX 10th Gen WiFi ATX Motherboard review
Gigabyte H470 Aorus Pro AX 10th Gen WiFi ATX Motherboard price
What is Gigabyte H470 Aorus Pro AX 10th Gen WiFi ATX Motherboard and its function?
What is Gigabyte H470 Aorus Pro AX 10th Gen WiFi ATX Motherboard used for?

Please ask your question  about Gigabyte H470 Aorus Pro AX 10th Gen WiFi ATX Motherboard .
Please login or register to ask question

Gigabyte H470 Aorus Pro AX 10th Gen WiFi ATX Motherboard lowest price in bd

Gigabyte H470 Aorus Pro AX 10th Gen WiFi ATX Motherboard price in jashore

BASIC INFORMATION
Supported CPU Support for 10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/ Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1200 package L3 cache varies with CPU
Chipset Intel H470 Express Chipset
Audio Realtek ALC1220-VB codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Memory Specifications
Maximum Size 128 GB
Slots 4 x DDR4 DIMM
Supported Memory Intel Core i9/i7 processors: Support for DDR4 2933/ 2666/ 2400/ 2133 MHz memory modules Intel Core i5/i3/Pentium/Celeron processors: Support for DDR4 2666/ 2400/ 2133 MHz memory modules
Type Dual channel memory architecture
Graphics Specifications
Max Shared Memory 512MB
Graphics Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
Expansion Slots
M.2 Socket 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_SB) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2M_SB)
PCI 1 x PCI Express x16 slot, running at x16 (PCIEX16) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 3 x PCI Express x1 slots
PORTS, CONNECTORS & SLOTS
Display Port (s) 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
HDMI 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
LAN Port (s) Intel 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) Wireless Communication module: Intel Wi-Fi 6 AX201 WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.1 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Supported Storage 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_SB) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2M_SB) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 Intel Optane Memory Ready
USB (s) 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x Q-Flash Plus button 6 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 2 x Thunderbolt add-in card connectors 1 x serial port header 1 x Clear CMOS jumper
WARRANTY
Manufacturing Warranty 03 Years
Special
Special Feature Support for APP Center @BIOS EasyTune Fast Boot Game Boost RGB Fusion Smart Backup System Information Viewer USB TurboCharger Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
Bundled Software Support for Windows 10 64-bit

Write a review

Note: HTML is not translated!
    Bad           Good


Gigabyte H470 Aorus Pro AX 10th Gen WiFi ATX Gaming Motherboard

  • Brand: Gigabyte
  • Product Code: M13055619
  • Availability: Out Of Stock
274 Super Coins:
