Key highlights
- IP Camera Input: IP video input: 16-ch
- Two-Way Talk: Two-way audio: 1-ch, RCA (2.0 Vp-p, 1kΩ)
- Internal HDD: Max 16TB 4 SATA interfaces for 2 HDDs + 1 DVD-R/W (default), or 4HDDs (8TB with DVD R/W + 2HDD)
- Net Weight: ≤ 4 Kg (without hard disk)
- Operational Conditions: -10ºC ~ + 55ºC (14ºF ~ 131ºF) Working humidity 10 % ~ 90 %
Description
Explore the Features of Hikvision DS-7632NI-K2 NVR

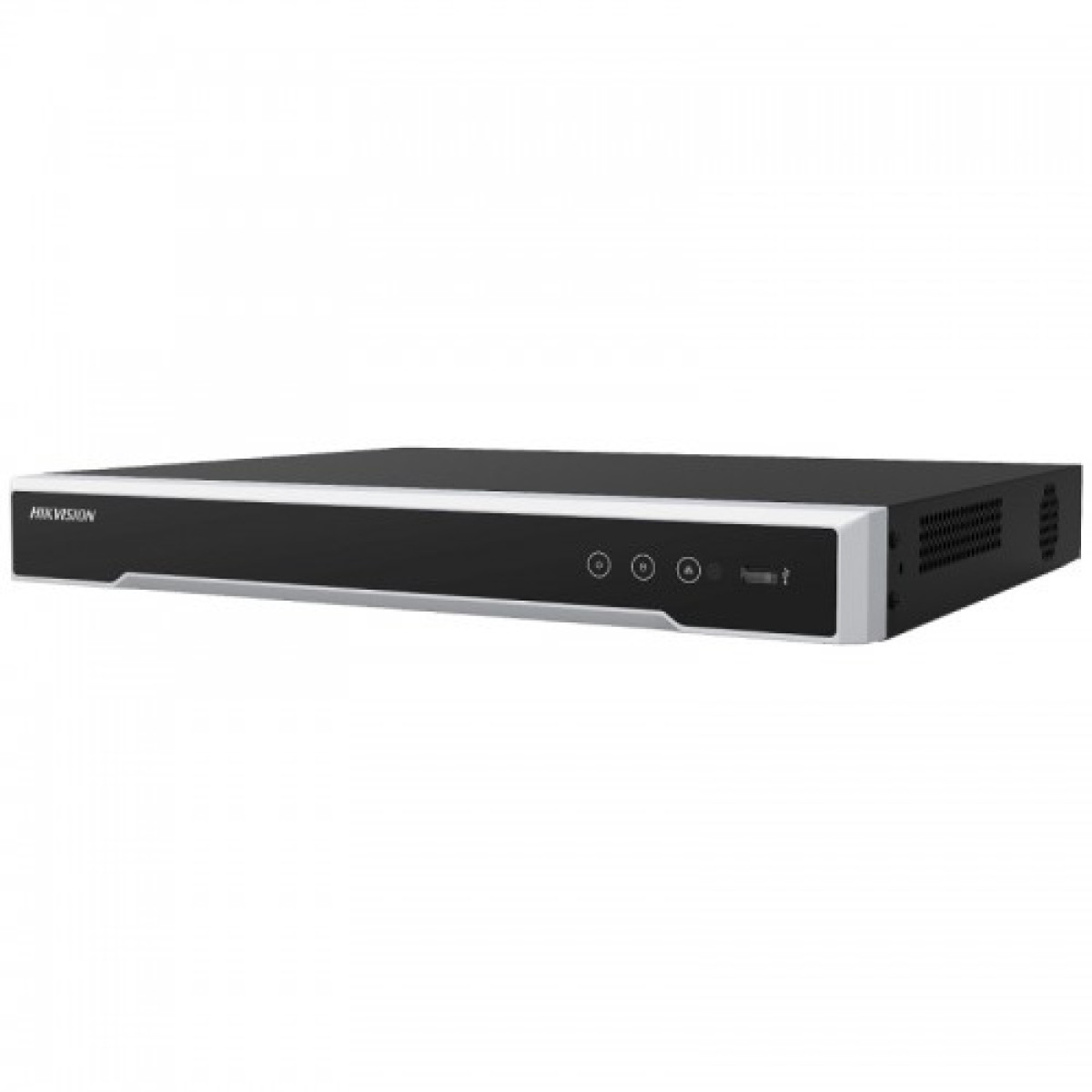

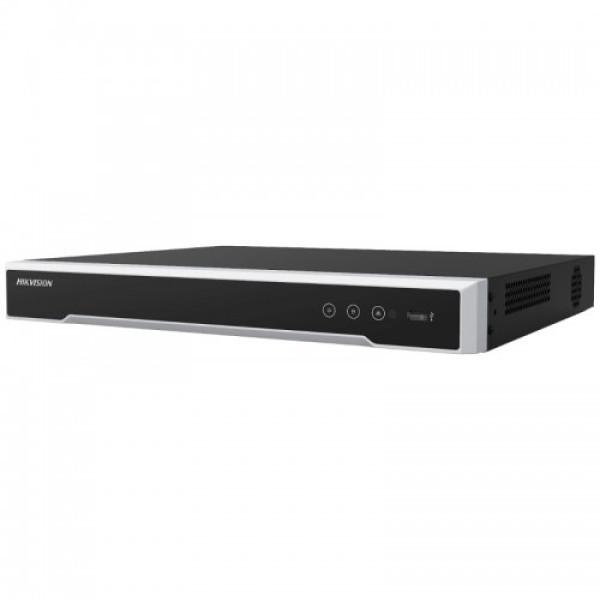

Introducing the Hikvision DS-7632NI-K2 32 Channel NVR
The Hikvision DS-7632NI-K2 is a high-performance 32-channel Network Video Recorder designed for sophisticated surveillance needs. With its ability to handle up to 32 IP cameras, this NVR is perfect for businesses and institutions looking to enhance their security systems. The device supports 4K video output, ensuring crystal-clear images and video playback. Its user-friendly interface allows for easy configuration and management, making it accessible even for those with limited technical expertise.
Key Benefits:
- Scalability: Expand your security system with ease by adding more IP cameras as needed.
- High Storage Capacity: Supports various HDD storage options, allowing for extensive recording time.
- Remote Access: Monitor your premises from anywhere using the Hik-Connect app.
Whether you're a small business owner or managing a larger facility, the Hikvision DS-7632NI-K2 offers reliability, performance, and peace of mind.
Why Choose Hikvision DS-7632NI-K2 for Your Security Needs
Specification
| Audio/Video Features | |
|---|---|
| IP Camera Input | IP video input: 16-ch |
| Two-Way Talk | Two-way audio: 1-ch, RCA (2.0 Vp-p, 1kΩ) |
| BASIC INFORMATION | |
| Internal HDD | Max 16TB 4 SATA interfaces for 2 HDDs + 1 DVD-R/W (default), or 4HDDs (8TB with DVD R/W + 2HDD) |
| Net Weight | ≤ 4 Kg (without hard disk) |
| Operational Conditions | -10ºC ~ + 55ºC (14ºF ~ 131ºF) Working humidity 10 % ~ 90 % |
| Power Supply | Max. Power 200W Power supply 100 ~ 240 VAC |
| Record Rate | Up to 5 MP |
| Resolution | Recording Resolution: Up to 5MP\ Synchronous Playback: Up to 16-ch synchronous playback at 4CIF resolution |
| Sync Playback | Up to 16-ch synchronous playback at 4CIF resolution |
| USB | 2 × USB 2.0 + 1 × USB 3.0 |
| Video Detection | IP Video Input: 16-ch (8-ch@720P, 6-ch@1080P) |
| NETWORK & WIRELESS CONNECTIVITY | |
| Ethernet Port | Network Interface 1 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interface Power over Ethernet (-16P) 16 independent 100 Mbps PoE network interfaces |
| Network Function | 1 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interface (-16P) 16 independent 100 Mbps PoE network interfaces (-16P) 16 independent 100 Mbps PoE network interfaces |
| PHYSICAL SPECIFICATION | |
| Dimensions (W x D x H) | 445 × 390 ×70 mm ( 17.5"× 15.3" × 2.8") |
| Power | |
| PoE in | PoE Switch (Built In) (-16P) 16 independent 100 Mbps PoE network interfaces Power Consumption ≤ 20W (without hard disk, DVD-R/W or PoE) Power over Ethernet (-16P) 16 independent 100 Mbps PoE network interfaces |
| Power Consumption | ≤ 20W (without hard disk, DVD-R/W or PoE) |
