| BASIC INFORMATION | |
| color | White |
| Interface | Serial console port: RS232 + Header Number of USB ports: 1 USB Power Reset: Yes USB slot type: microUSB type AB Max USB current (A): 1 |
| Others | CPU: TLR4-00980 CPU core count: 9 CPU nominal frequency: 1 GHz Size of RAM: 1 GB Storage size: 128 MB Storage type: NAND |
| Key Features | |
| Operating system support | RouterOS license: 6 Operating System: RouterOS |
| Ports | 10/100/1000 Ethernet ports: 7 Ethernet Combo ports: 1 |
| PHYSICAL SPECIFICATION | |
| Dimensions (W x D x H) | 272 x 190 x 44 mm |
| WARRANTY | |
| Manufacturing Warranty | 1 year |

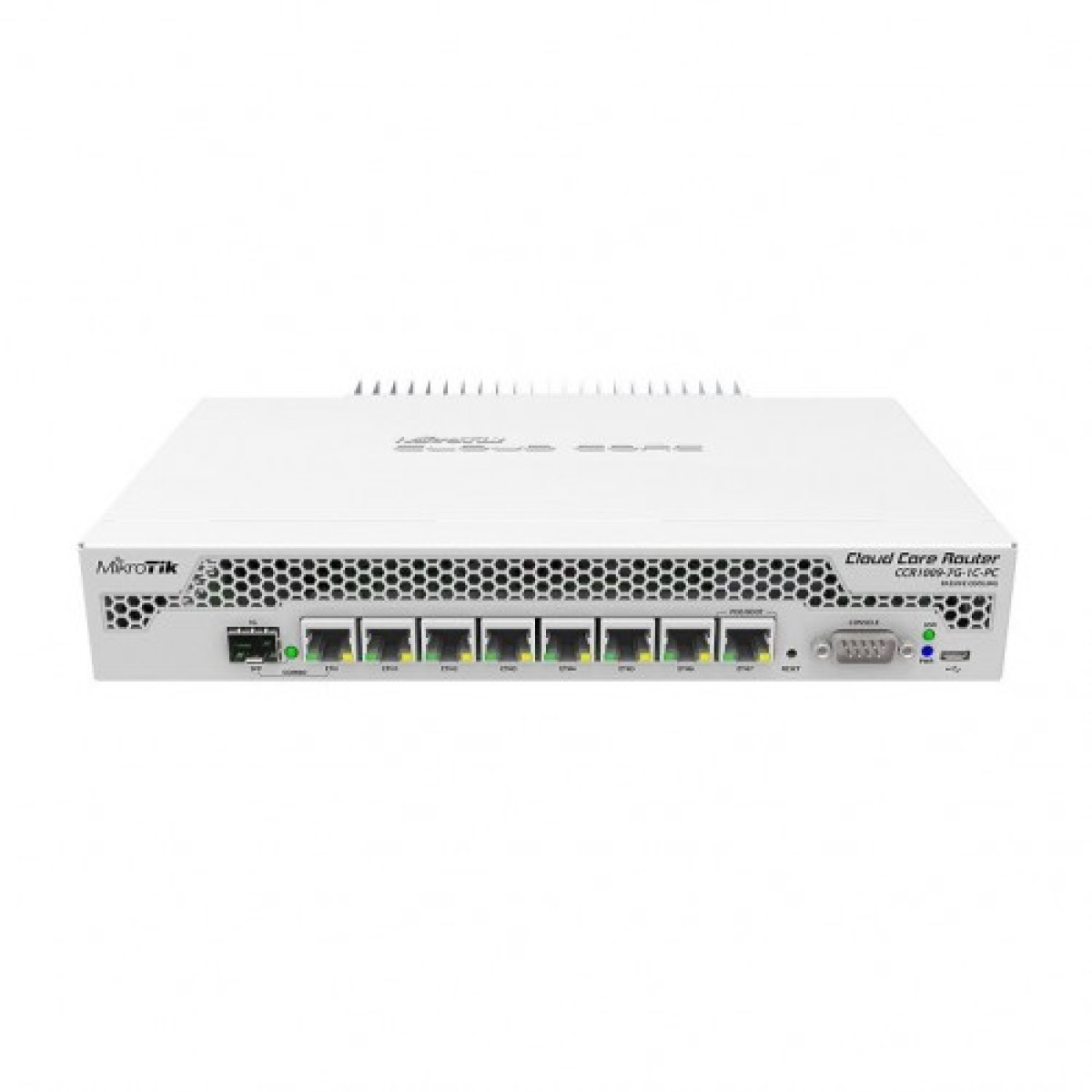

Mikrotik CCR1009-7G-1C-PC 8 Port Gigabit Ethernet Router
The Mikrotik CCR1009-7G-1C-PC features only fully independent Ethernet ports each with a direct connection to the CPU, allowing to overcome previous shared 1Gbit limitation from switch-chip ports and utilize full potential of CPU processing power on those ports. It features a single 1Gbit software interface that has two hardware interfaces - an SFP cage and a Gigabit Ethernet port, allowing you to use any type of connection available to you. It is also possible to switch between both physical interfaces in RouterOS. In an event of a disconnect, the combo-port provides a hardware fail-over feature. It supports 100BASE-LX/100BASE-SX/100BASE-BX fiber modules, as well as standard 1.25G SFP modules. As the ports are now directly connected to the CPU, the new CCR1009 can achieve even higher throughput. It is equipped with a passive cooling enclosure, two heat pipes, and a specially designed heat sink, so it's completely silent. It’s powered by an external 24V 2.5A AC/DC adapter and supports power redundancy if you also power it from the PoE input port. It comes with a 1-year warranty.
The Mikrotik CCR1009-7G-1C-PC 8 Port Gigabit Ethernet Router is a high-performance router perfect for small to medium-sized businesses looking to enhance their network connectivity. With 8 Gigabit Ethernet ports, this router offers fast and reliable data transfer speeds, ensuring smooth and efficient operation. The compact design makes it ideal for space-constrained environments, while the powerful CPU and advanced features provide seamless network management. At Computer Shop Unix Network in Jashore, Bangladesh, we offer this top-of-the-line router at a competitive price, providing our customers with the latest technology to optimize their network infrastructure. Trust us to meet all your networking needs with this Mikrotik router.
