Key highlights
- Form Factor: Mini-ITX Form Factor
- Others: 1x TPM module connector
- Wireless: Intel Wi-Fi 6 AX201 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax WiFi 6 pre-certified Supports Bluetooth 5.1, FIPS, FISMA
- Supported CPU: Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold, and Celeron Processors Processor socket LGA1200
- Chipset: Intel H510 Chipset
Description

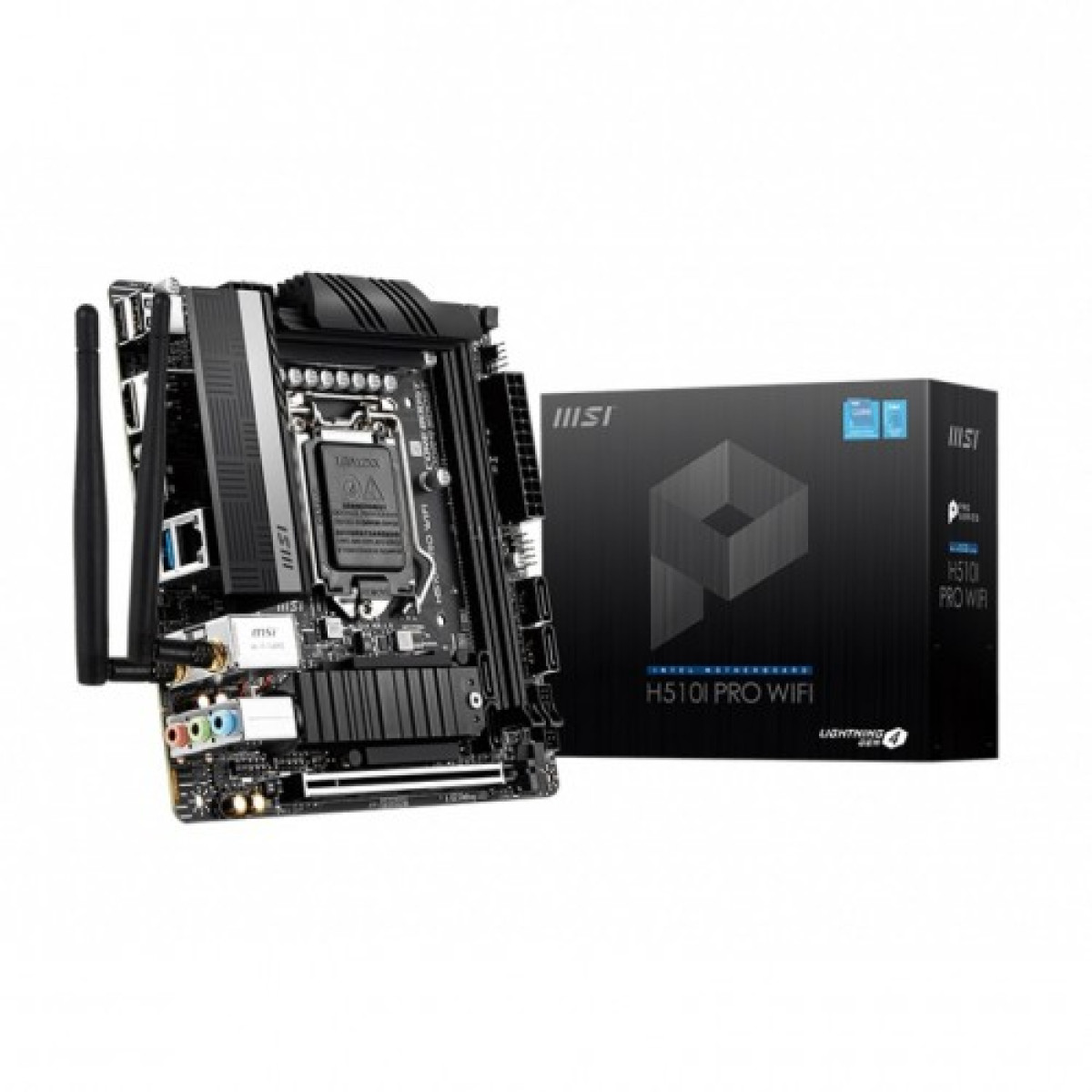

Buy MSI H510I PRO WIFI Mini-ITX Motherboard in Jashore
Maximize Your Build with the MSI H510I PRO WIFI Motherboard
The MSI H510I PRO WIFI is a cutting-edge Mini-ITX motherboard that supports both 10th and 11th Gen Intel processors. Designed for compact builds, this motherboard delivers exceptional performance and connectivity options, making it perfect for gamers and professionals alike. With built-in WiFi 6 technology, you can enjoy faster internet speeds and lower latency, enhancing your gaming and streaming experience. Furthermore, the motherboard features dual-channel DDR4 memory support up to 64GB, allowing you to multitask effortlessly.
Equipped with multiple USB 3.2 Gen 1 ports, the MSI H510I ensures that you can connect all your peripherals with ease. The HDMI and DisplayPort outputs enable crisp visuals for your high-definition displays, making it an ideal choice for content creators. Additionally, the Core Boost technology provides enhanced power delivery for optimal CPU performance. With its compact size and robust build quality, this motherboard is perfect for those looking to create a powerful yet space-saving PC.
High-Performance Mini-ITX Motherboard for Gamers
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | Mini-ITX Form Factor |
| Others | 1x TPM module connector |
| Wireless | Intel Wi-Fi 6 AX201 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax WiFi 6 pre-certified Supports Bluetooth 5.1, FIPS, FISMA |
| Supported CPU | Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold, and Celeron Processors Processor socket LGA1200 |
| Chipset | Intel H510 Chipset |
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
| Expansion Slots | |
| M.2 Socket | 1x M.2 slot (from H510 chipset) |
| PCI | 1x PCIe x16 slot Support up to PCIe 4.0 for 11th Gen Intel CPU Support up to PCIe 3.0 for 10th Gen Intel CPU |
| Graphics Specifications | |
| Graphics | 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 5120x3200 60Hz |
| Memory Specifications | |
| Maximum Memory | Support up to 64GB |
| Slots | 2x DDR4 memory slots |
| Supported Memory | Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR) 1 Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) 1 Max frequency: 1DPC 1R Max speed up to 3200+ MHz 1DPC 2R Max speed up to 3200+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| Audio Jack Combo | 1x Front panel audio connector |
| Display Port (s) | 1x DisplayPort 1.4 port, supports a maximum resolution of 5120x3200 60Hz |
| HDMI | 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz |
| LAN Port (s) | 1x Realtek 8125B 2.5Gbps LAN controller |
| Supported Storage | Intel H510 Chipset 4x SATA 6Gb/s ports (from H510 chipset) 1x M.2 slot (from H510 chipset) Support up to PCIe 3.0 Supports SATA 6Gb/s Supports 2280 storage devices |
| USB (s) | Intel H510 Chipset: 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connectors) 4x USB 2.0 Type-A ports on the back panel GL850G Hub: 2x USB 2.0 ports available through the internal USB connector |
| Internal I/O Connectors | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 1x USB 2.0 connectors (supports additional 2 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 1x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper |
| WARRANTY | |
| Manufacturing Warranty | 03 years warranty |
