Basic Information

Supported CPU Supports 9th / 8th Gen intel Core / Pentium Gold / Celeron processors for LGA 1151 socke

Chipset intel Z390 Chipset

Form Factor E-ATX

Expansion Slots

PCI 4 x PCIe 3.0 x16 slots

1 x PCIe 3.0 x1 slot

M.2 Socket 3 x M.2 slots (Key M)

- M2_1 & M2_3 support up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/2260/2280/22110 storage devices

- M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/2260/2280 storage devices

1 x U.2 port

- Supports PCIe 3.0 x4 NVMe storage

* M.2_2 slot, U.2 port and SATA ports share the bandwidth.

Memory

Type DDR4

Slots 4

Supported Memory 4 x DDR4 memory slots, support up to 128GB

- Supports DDR4 4600(OC)/ 4533(OC)/ 4500(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/

3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) /2800(OC)/ 2666/ 2400/ 2133 MHz1

- Dual channel memory architecture

- Supports non-ECC, un-buffered memory

- Supports intel® Extreme Memory Profile (

Maximum Mamory 128GB

Graphics

Graphics Supports 2-Way NVIDIA SLI Technology

Supports 4-Way AMD CrossFire Technology

Connector & Ports

USB (s) USB 3.1 PORTS (FRONT) : 2(Gen2, Type C), 4(Gen1, Type A)

USB 3.1 PORTS (REAR) : 1(Gen2, Type C),3 (Gen2, Type A), 2(Gen1, Type A)

USB 2.0 PORTS (FRONT) : 4

LAN Port (s) 2 x Killer E2500

Supported Storage intel Z390 Chipset :

6 x SATA 6Gb/s ports

3 x M.2 slots (Key M)

- M2_1 & M2_3 support up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices

- M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices

- intel Optane Memory Ready

1 x U.2 port :

- Supports PCIe 3.0 x4 NVMe storage

M.2_2 slot, U.2 port and SATA ports share the bandwidth

Before using intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

Audio 2 x Realtek ALC1220 Codecs :

- 7.1-Channel High Definition Audio

- Supports S/PDIF output

ESS E9018 Codec :

- Supports 6.3mm Gold-plated stereo headphone out

Internal I/O Ports 1 x 24-pin ATX main power connector

2 x 8-pin ATX 12V power connectors

1 x 6-pin ATX PCIe power connector

6 x SATA 6Gb/s connectors

3 x M.2 slots (M-Key)

1 x U.2 port

2 x USB 3.1 Gen2 Type-C ports

2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)

2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

1 x 4-pin CPU fan connector

1 x 4-pin Water Pump connector

8 x 4-pin system fan connectors

1 x 3-pin Water Flow connector

1 x Front panel audio connector

2 x System panel connectors

1 x Chassis Intrusion connector

2 x 2-pin Thermal Sensors connectors

1 x 4-pin RGB LED connector

2 x 3-pin RAINBOW LED connectors

1 x 3-pin CORSAIR LED connector

Warranty Information

Manufacturing Warranty 03 Years Warranty

Others

Special Features SLI : Yes

CROSSFIRE : Yes

OPERATING SYSTEM : Support for Windows 10 64-bit

Description:

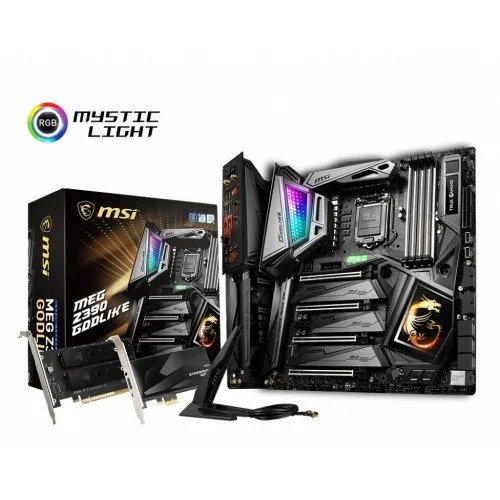

MSI MEG Z390 GODLIKE Extended ATX intel Motherboard
