MSI MEG Z690 ACE DDR5 12th Gen E-ATX Motherboard 3 years
- Regular Price ৳72,000
- Brand: MSI
- Product Model: MEG Z690 ACE
- Availability: In Stock
- SKU: 202303190243
-
৳72,000
- Buy this Product and Get Extra 0 Off on Laptop & Desktop Computer T&C Available offers
| BASIC INFORMATION | |
| Graphics | 1x Type-C Display port, supporting a maximum resolution of 4K 60Hz |
| Supported CPU | Supports 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors |
| Chipset | Processor socket LGA1700 |
| Slots | 4x DDR5 memory slots, supporting up to 128GB 1 Supported Memory Max. overclocking frequency: 1DPC 1R Max speed up to 6666+ MHz 1DPC 2R Max speed up to 5600+ MHz 2DPC 1R Max speed up to 4000+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Intel XMP 3.0 OC Supports Dual Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Audio | 1x Front panel audio connector |
| BIOS | Flash BIOS Button |
| Form Factor | E-ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 27.7 cm) |
| Type | DDR5 Supports 1R 4800 MHz (by JEDEC & POR) |
| Memory Specifications | |
| Maximum Memory | supporting up to 128GB |
| Connectivity | |
| HDMI | 1x HDMI 2.1 |
| Expansion Slots | |
| M.2 Socket | 5x M.2 slots (M-Key) |
| PCI | 3x PCIe x16 slots Supports x16/x0/x4, x8/x8/x4 PCI_E1 & PCI_E2 slots (From CPU) PCI_E1 supports up to PCIe 5.0 x16 PCI_E2 supports up to PCIe 5.0 x8 PCI_E3 1 (From Z690 chipset) Supports up to PCIe 4.0 x4 |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1x Type-C Display port, supporting a maximum resolution of 4K 60Hz |
| LAN Port (s) | 2x Intel I225V 2.5Gbps LAN controllers |
| Supported Storage | 6x SATA 6Gb/s ports (From Z690 chipset) SATA5~8 (From Z690 chipset) SATAA~B (From ASM1061) 5x M.2 slots (Key M) M2_1 slot (From CPU) Supports up to PCIe 4.0 x4 Supports 2260/ 2280/ 22110 storage devices M2_2 & M2_3 slots (From Z690 chipset) M2_2 slot supports up to PCIe 4.0 x4 M2_3 slot supports up to PCIe 3.0 x4 Supports 2260/ 2280 storage devices M2_4 & M2_5 1 slots (From Z690 chipset) Supports up to PCIe 4.0 x4 Supports up to SATA 6Gb/s M2_4 slot supports 2280/ 22110 storage devices M2_5 slot supports 2260/ 2280 storage devices M2_2~5 slots support Intel Optane Memory Supports Intel Smart Response Technology for Intel Core processors |
| USB (s) | Intel Z690 Chipset 2x USB3.2 Gen2x2 20Gbps ports (2 Type-C internal connectors) 4x USB 3.2 Gen 2 10Gbps ports (1 Type-C port on the back panel, 3 Type-A ports on the back panel) Hub-GL3590 4x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel ASM1074 4x USB 3.2 Gen 1 5Gbps Type-A ports available through the internal connector Hub-GL850G 4x USB 2.0 Type-A ports available through the internal connectors |
| Wireless Communication module | Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz 1 (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2 2, FIPS, FISMA |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
Msi Meg Z690 Ace Ddr5 12Th Gen E-Atx Motherboard in Bangladesh

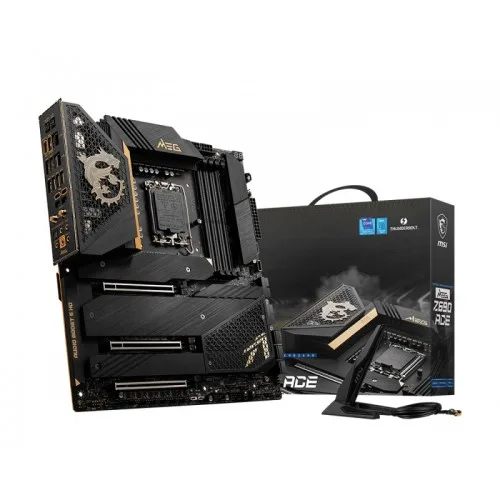

MSI MEG Z690 ACE 12th Gen E-ATX Motherboard
MSI MEG Z690 ACE motherborad Supports with 12th Gen Intel Core / Pentium Celeron processors for LGA 1700 socket and DDR5 Memory, Dual Channel DDR5-6666+MHz(OC). It is combines with dedicated SMT welding process and MSI Memory Boost technology, MEG Z690 ACE is ready to deliver the world class memory performance. This motherboard featured with Genuine 24K Gold, Premium aesthetics with its dark black finish and genuine 24K-gold foil heatsink perfectly show off the concept of beauty. the MSI Motherboard has Dual Thunderbolt 4 ports, these are Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture provide reliable connectivity and better user experience. In this motherboard, it comes with Quintuple M.2 Connectors. This connectors are Onboard 5x M.2 connectors for the maximum storage performance with quad Lightning Gen 4 solution. The MSI MEG Z690 ACE designed with Double-sided Shield Frozr, which keeps M.2 SSDs safe while preventing throttling, making them run faster. This motherboard also has Onboard dual 2.5G LAN with LAN manager and latest Wi-Fi 6E solution which supports 6GHz. The motherboard has Outstanding Cooling Solution, which designed with Aluminum Cover, VRM Heat-pipe, 7W/mK thermal pads, Double-sided M.2 Shield Frozr and Aluminum Backplate ensure the extreme performance with low temp. The new MSI MEG Z690 ACE designed with 8 Layer PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise. Here, The Ultimate audio solution comes with latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience. The Latest MSI MEG Z690 ACE has 03 years warranty.
What is the price of Msi Meg Z690 Ace Ddr5 12Th Gen E-Atx Motherboard MSI (Intel) in Bangladesh?
The latest price of Msi Meg Z690 Ace Ddr5 12Th Gen E-Atx Motherboard MSI (Intel) in Bangladesh is ৳72,000. You can buy the MSI Msi Meg Z690 Ace Ddr5 12Th Gen E-Atx Motherboard MSI (Intel) at best price from our website or visit Unix Network Showroom Jessore Computer city . Unix Network offers you Msi Meg Z690 Ace Ddr5 12Th Gen E-Atx Motherboard with the best price in Bangladesh Which, is your budget-friendly. We also offers you free shipping with this Msi Meg Z690 Ace Ddr5 12Th Gen E-Atx Motherboard. Order Online for nationwide cash on delivery or visit our Shop. Follow us on Facebook for regular updates and offers. Subscribe our Youtube channel for reviews of gadget Products. You can call mobile number 01715143685 for a free consultation.Your comments on the following topics will accelerate our progress.
