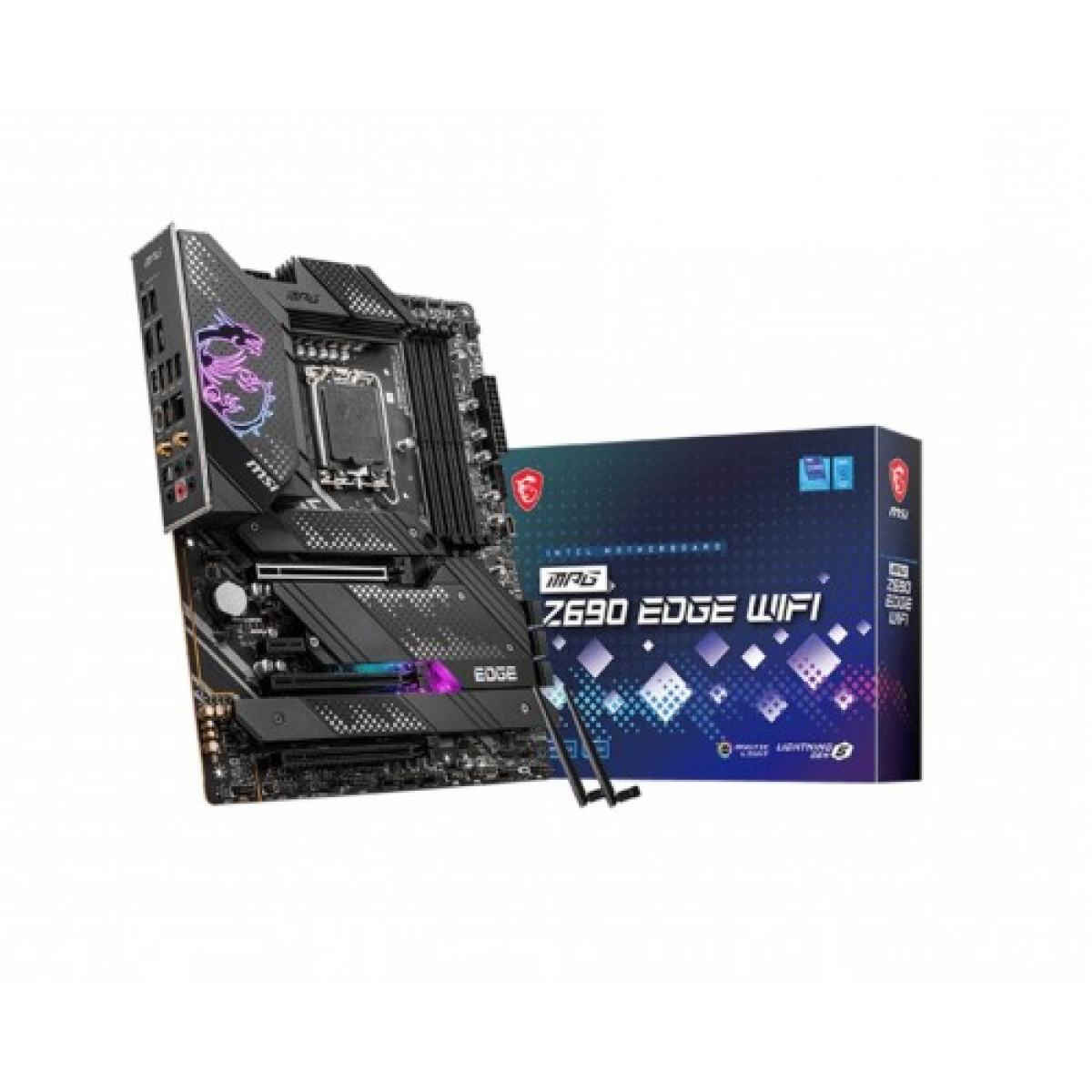

MSI MPG Z690 EDGE WIFI DDR5 12th Gen ATX Motherboard 3 years
- Regular Price ৳30,000
- Brand: MSI
- Product Model: MPG Z690 EDGE WIFI DDR5
- Availability: Out Of Stock
- SKU: 202303191157
-
৳30,000
- Buy this Product and Get Extra 0 Off on Laptop & Desktop Computer T&C Available offers
| BASIC INFORMATION | |
| Graphics | 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz |
| Supported CPU | Supports 12th Gen Intel Core, Pentium Gold and Celeron Processors Processor socket LGA1700 |
| Chipset | Intel Z690 Chipset |
| Slots | 4x DDR5 memory slots |
| Audio | 7.1-Channel High Definition Audio Supports S/PDIF output |
| Form Factor | ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
| Type | DDR5 |
| Memory Specifications | |
| Maximum Memory | 128GB |
| Supported Memory | Supports 1R 4800 MHz, 2R 4000 MHz (by JEDEC & POR)1 Max. overclocking frequency: 1DPC 1R Max speed up to 6400+ MHz 1DPC 2R Max speed up to 5400+ MHz 2DPC 1R Max speed up to 4000+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) |
| Expansion Slots | |
| PCI | 3x PCIe x16 slots PCI_E1 slot (From CPU) Supports PCIe 5.0 x16 PCI_E3 & PCI_E4 slots (From Z690 chipset) Supports PCIe 3.0 x4 1x PCIe 3.0 x1 slot (From Z690 chipset |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1x DisplayPort 1.4 with HBR3 |
| HDMI | 1x HDMI 2.1 with HDR port |
| Internal I/O Ports | 1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 4x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x Tuning controller connector 1x TBT connector (Supports RTD3) |
| Supported Storage | 6x SATA 6Gb/s ports SATA5~8 (From Z690 Chipset) SATAA~B (From ASMedia ASM1061) 2 x SATA 6Gb/s ports - SATAA & SATAB (From ASMedia ASM1061) 4x M.2 slots (Key M) M2_1 slot (From CPU) Supports PCIe 4.0 x4 Supports 2260/ 2280/ 22110 storage devices M2_2 slot (From Z690 Chipset) Supports PCIe 4.0 x4 Supports 2260/ 2280 storage devices M2_3 slot (From Z690 Chipset) Supports PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_4 slot (From Z690 Chipset) Supports PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_2~4 support Intel Optane Memory Supports Intel Smart Response Technology for Intel Core processors |
| TPM (Trusted Platform Module ) | 1xTPM module connector |
| USB (s) | Intel Z690 Chipset 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel 6x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 5 Type-A ports on the back panel) 2x USB 2.0 Type-A ports on the back panel 2x USB 3.2 Gen 1 5Gbps ports available through the internal USB connector USB Hub-GL850G 4x USB 2.0 ports available through internal connectors |
| Wireless Communication module | Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/6GHz 1(160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.22, FIPS, FISMA |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
Msi Mpg Z690 Edge Wifi Ddr5 12Th Gen Atx Motherboard in Bangladesh
MSI MPG Z690 EDGE WIFI DDR5 12th Gen ATX Motherboard
The MSI MPG Z690 EDGE WIFI DDR5 Motherboard supports 12th Gen Intel Core/ Pentium Celeron processors for LGA 1700 socket. It supports DDR5 Memory, up to 6400+(OC) MHz. It delivers a Lightning Fast Game experience with PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2. It comes with an Enhanced Power Design. Direct 16+1+1 phases power, dual 8-pin CPU power connectors, Core Boost, Memory Boost. It is equipped with an enlarged heatsink with heat pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads, and M.2 Shield Frozr are built for a high-performance system and non-stop gaming experience. 16.8 million colors / fancy lighting effects can be controlled in one click. MYSTIC LIGHT SYNC supports RGB, RAINBOW(ARGB), Corsair LED strips and Ambient devices. The MSI MPG Z690 EDGE WIFI DDR5 comes with a 2.5G LAN with LAN Manager and Intel Wi-Fi 6 Solution. Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection. 2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users. It has a 6-layer PCB made of 2oz thickened copper and server-grade level material. The MSI MPG Z690 EDGE WIFI DDR5 comes with 3 years of warranty.
What is the price of Msi Mpg Z690 Edge Wifi Ddr5 12Th Gen Atx Motherboard MSI (Intel) in Bangladesh?
The latest price of Msi Mpg Z690 Edge Wifi Ddr5 12Th Gen Atx Motherboard MSI (Intel) in Bangladesh is ৳30,000. You can buy the MSI Msi Mpg Z690 Edge Wifi Ddr5 12Th Gen Atx Motherboard MSI (Intel) at best price from our website or visit Unix Network Showroom Jessore Computer city . Unix Network offers you Msi Mpg Z690 Edge Wifi Ddr5 12Th Gen Atx Motherboard with the best price in Bangladesh Which, is your budget-friendly. We also offers you free shipping with this Msi Mpg Z690 Edge Wifi Ddr5 12Th Gen Atx Motherboard. Order Online for nationwide cash on delivery or visit our Shop. Follow us on Facebook for regular updates and offers. Subscribe our Youtube channel for reviews of gadget Products. You can call mobile number 01715143685 for a free consultation.Your comments on the following topics will accelerate our progress.
