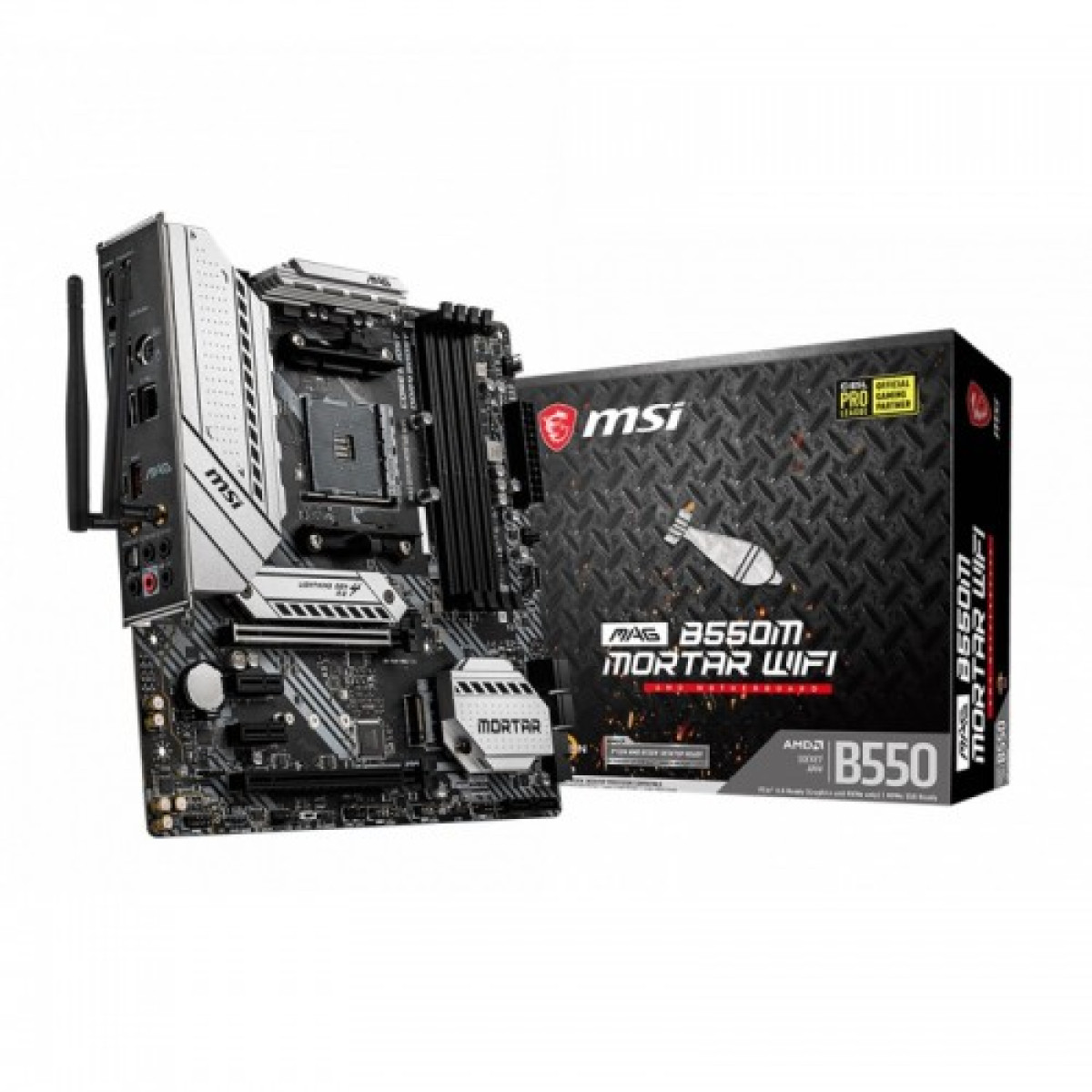

MSI MAG B550M Mortar Wi-Fi AM4 AMD Micro-ATX Motherboard (Global) 03 Years Warranty
- Regular Price ৳15,000
- Brand: MSI
- Product Model: MSI MAG B550M Mortar Wi-Fi
- Availability: Out Of Stock
- SKU: 202303180444
-
৳15,000
- Buy this Product and Get Extra 0 Off on Laptop & Desktop Computer T&C Available offers
| BASIC INFORMATION | |
| Supported CPU | AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors |
| Chipset | AMD B550 |
| Slots | 4x DDR4 memory slots |
| Audio | Realtek ALC1200 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| Form Factor | M-ATX Form Factor 9.6 in. x 8.3 in. (24.4 cm x 21 cm) |
| Type | Dual-channel memory architecture |
| Memory Specifications | |
| Maximum Memory | 128GB |
| Supported Memory | Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE 1DPC 1R max speed 4400 MHZ 1DPC 2R max speed 3733 MHZ 2DPC 1R max speed 3866 MHZ 2DPC 2R max speed 3466 MHZ Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory |
| Graphics Specifications | |
| Max Shared Memory | 16GB |
| Connectivity | |
| HDMI | 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz |
| Expansion Slots | |
| M.2 Socket | 1x M.2 slots (Key M) M2_1 slot (from AMD processor) Supports PCIe 3.0 x4 1 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices |
| PCI | 1x PCIe 3.0/ 4.0 x16 slot (PCI_E1) 1x PCIe 3.0 x16 slot (PCI_E4), supports x4 mode 2x PCIe 3.0 x1 slots |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz |
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 3x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 1x Clear CMOS jumper |
| LAN Port (s) | 1x Realtek RTL8125B 2.5Gbps LAN controller |
| Supported Storage | AMD B550 Chipset 6x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 slot (from AMD processor) Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices |
| TPM (Trusted Platform Module ) | 1xTPM module connector |
| USB (s) | AMD B550 Chipset: 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor: 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel) 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
| WARRANTY | |
| Manufacturing Warranty | 03 Years Warranty |
Msi Mag B550M Mortar Wi-Fi Am4 Amd Micro-Atx Motherboard (Global) in Bangladesh
MSI MAG B550M Mortar Wi-Fi AM4 AMD Micro-ATX Motherboard (Global)
The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry-level gamers. With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end CPU to run at full speed with MSI motherboards. Utilizing 3rd Gen Ryzen processors, MSI B550 motherboards feature the latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed. MSI B550 motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier. 2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users. The WIFI 6 adopts the latest OFDMA and two-way MU-MIMO technologies and could provide up to 4X network capacity and efficiency in the high signal density environment. Comparing to the WIFI 5, which can only send the data packet to one device at a time on each channel, the WIFI 6 could combine the packet, separate to several devices, and allow signals from the different devices bundled together. This new technology provides all the devices in the same network environment with the same and harmonious traffic bandwidth in an efficient way. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games, giving you the best online gaming experience with low latency.
What is the price of Msi Mag B550M Mortar Wi-Fi Am4 Amd Micro-Atx Motherboard (Global) MSI (AMD) in Bangladesh?
The latest price of Msi Mag B550M Mortar Wi-Fi Am4 Amd Micro-Atx Motherboard (Global) MSI (AMD) in Bangladesh is ৳15,000. You can buy the MSI Msi Mag B550M Mortar Wi-Fi Am4 Amd Micro-Atx Motherboard (Global) MSI (AMD) at best price from our website or visit Unix Network Showroom Jessore Computer city . Unix Network offers you Msi Mag B550M Mortar Wi-Fi Am4 Amd Micro-Atx Motherboard (Global) with the best price in Bangladesh Which, is your budget-friendly. We also offers you free shipping with this Msi Mag B550M Mortar Wi-Fi Am4 Amd Micro-Atx Motherboard (Global). Order Online for nationwide cash on delivery or visit our Shop. Follow us on Facebook for regular updates and offers. Subscribe our Youtube channel for reviews of gadget Products. You can call mobile number 01715143685 for a free consultation.Your comments on the following topics will accelerate our progress.
