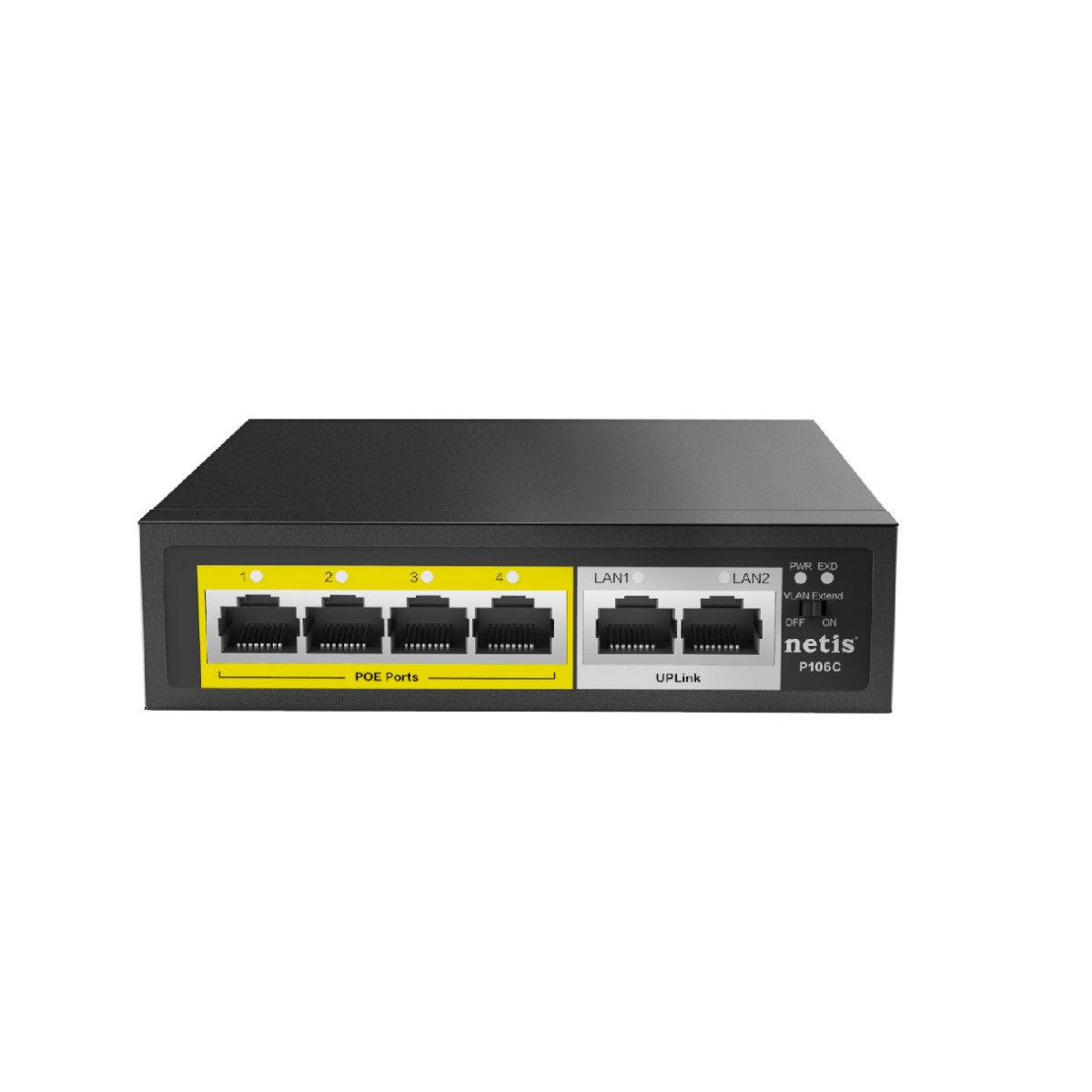

Netis P106C 4POE+2RJ45 100M Standard POE Switch
Key highlights
- Basic Function: Follow IEEE 802.3 Ethernet and IEEE802.3u Fast Ethernet Protocol Supports POE IEEE 802. 3af/at compliant Powered Device (PD) Store-and-forward switching scheme Support IEEE802.3X full duplex and Backpressure half duplex MAC address auto-learning & auto-aging
- Cabling Type: 100Base-TX: Cat 5e or better UTP/STP(≤100m) 10Base-TX: Cat 5e or better UTP/STP(≤250m)
- Interface: 4*10/100Mbps POE ports（Data/Power） 2*10/100M uplink RJ45 ports (Data)
- Jumbo Frame: 2048 byte
- Mode: Normal switch mode/Extend mode
Description
Buy Netis P106C 4POE+2RJ45 Switch in Jashore, Bangladesh
Enhance Your Network with the Netis P106C POE Switch
The Netis P106C 4POE+2RJ45 100M Standard POE Switch is designed to meet the growing demands of modern networking in Bangladesh. With its ability to deliver power and data over the same Ethernet cable, this switch simplifies installations and reduces cable clutter. Perfect for small to medium-sized businesses and home offices, it supports 4 Power over Ethernet (PoE) ports, allowing you to connect devices such as IP cameras, access points, and VoIP phones seamlessly.
Equipped with 100Mbps data transmission speed, it ensures reliable connectivity for all your devices, enhancing productivity and communication. The built-in surge protection guarantees the safety of your connected devices, making it a reliable choice in areas prone to voltage fluctuations.
Its compact design and fanless operation ensure that it operates quietly, making it ideal for any environment. The plug-and-play feature allows for easy installation without the need for configuration, making it accessible even for those with limited technical expertise. Choose the Netis P106C to build a robust network infrastructure that caters to your business needs.
Reliable 100M POE Switch for Your Network Needs
Specification
| BASIC INFORMATION | |
|---|---|
| Basic Function | Follow IEEE 802.3 Ethernet and IEEE802.3u Fast Ethernet Protocol Supports POE IEEE 802. 3af/at compliant Powered Device (PD) Store-and-forward switching scheme Support IEEE802.3X full duplex and Backpressure half duplex MAC address auto-learning & auto-aging |
| Cabling Type | 100Base-TX: Cat 5e or better UTP/STP(≤100m) 10Base-TX: Cat 5e or better UTP/STP(≤250m) |
| Interface | 4*10/100Mbps POE ports（Data/Power） 2*10/100M uplink RJ45 ports (Data) |
| Jumbo Frame | 2048 byte |
| Mode | Normal switch mode/Extend mode |
| Standards | IEEE 802.3 10BASE-T Ethernet IEEE 802.3i 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3af/at, Power over Ethernet IEEE 802.3x Flow Control |
| Store & Forwarding | Yes |
| Switching Capacity | 1.2G |
| Data Transfer Rates | Etherent:10Mbps(Half-duplex);20Mbps(Full-duplex) Fast Entherent:100Mbps(Half-duplex);200Mbps(Full-duplex) |
| Environment | Operation Temperature：0℃～40℃ Storage Temperature：-40℃～70℃ Operation Humidity：10%～90% RH Non-condensing Storage Humidity：5%～90% RH Non-condensing |
| MAC Address Table | 2K |
| PHYSICAL SPECIFICATION | |
| Dimensions (W x D x H) | 124mm*115mm*33mm |
| Power | |
| Power Consumption | Single port maximum power 30W, Whole switch maximum power 58W Support over-current,over-voltage and short-circuit protection Support Soft Start of High Power PD Support sequential boot-up Power Supply Pin:12+/36- AC 110~240V 50/60HZ |
