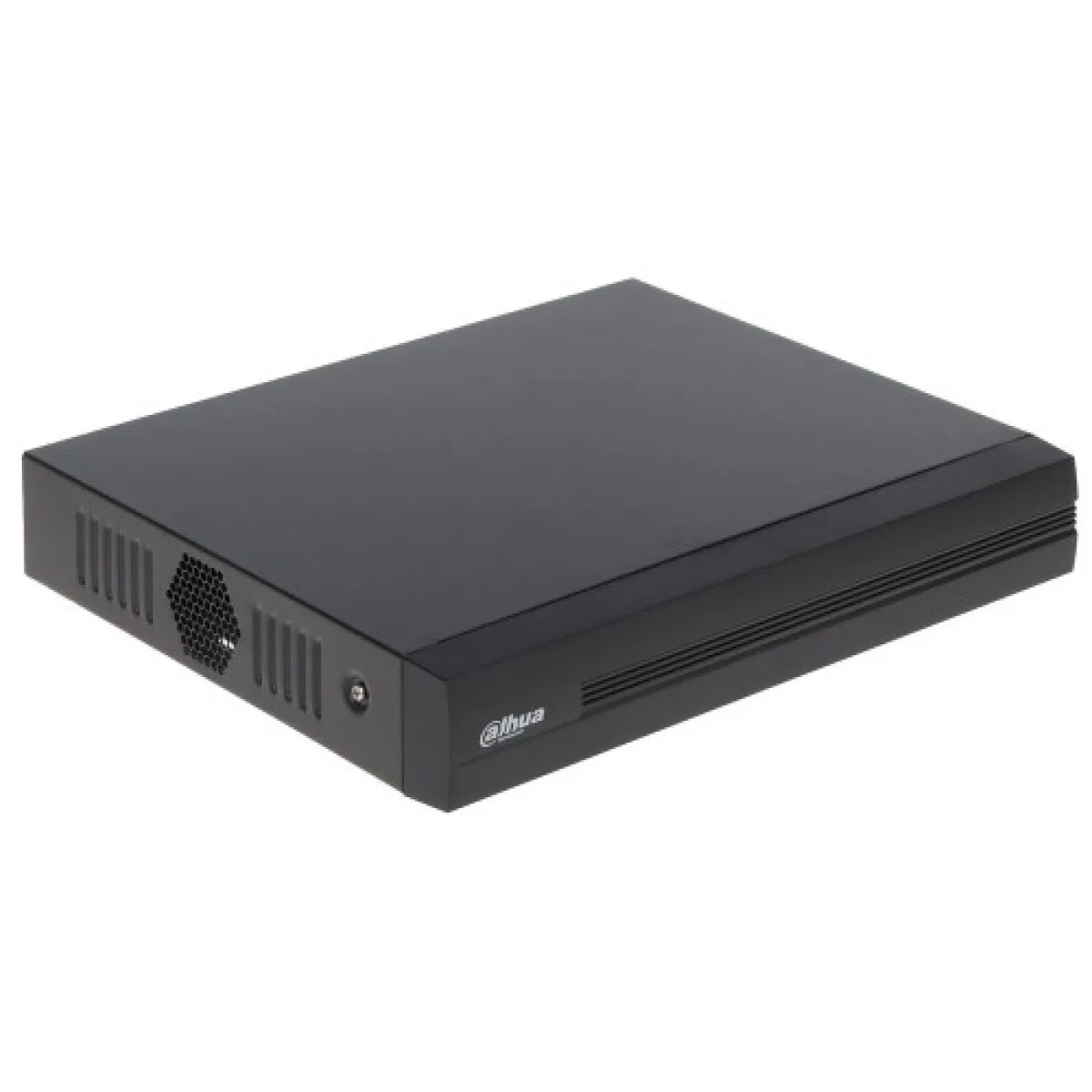

Dahua imou N14P 4 Channel PoE NVR
The Dahua imou N14P 4 Channel PoE NVR is used to record videos and secure your home or business. Using Power over Ethernet technology，the recorder could provide the electricity and network for each camera via a Cat 5e/Cat 6 network cable. It supports Plug and Play. It can record up to 1080P resolution and supports H.265 & H.264 video compression technology. It has 1 SATA III interface, up to 8TB is supported. Using a hard disk drive, the recorder could uninterrupted record for a long time, and now easily store for more than a month by using the smart H.265 codec. You can playback the details every time. It also features Auto Pairing, Camera Repeater, Two-way Talk, ONVIF, and so on. It has a 1-year warranty.
| BASIC INFORMATION | |
| Backup Mode | USB Device |
| Compression | Smart H.265+/H265/Smart H.264+/H.264 |
| Interface | 2 x USB Ports 1 x SATA Port 4 x PoE Ports 1 x Network Port 1 x RCA In 1 x RCA Out 1 x HDMI Port 1 x VGA Port 1 x Power Port |
| Net Weight | 0.84kg(1.85lb) |
| Power Supply | DC48V 1.25A / DC53V 1.22 A |
| Record Mode | Manual/Alarm/Motion detection/Schedule |
| Resolution | 1080P/720P |
| Connectivity | |
| USB | 2 x USB Ports |
| PHYSICAL SPECIFICATION | |
| Dimensions (W x D x H) | 260mm×225mm×47.6mm (10.24" ×8.86" ×1.87" ) |
| Power | |
| PoE in | 4 x PoE Ports |
| Power Consumption | ≤10W(without HDD) |
