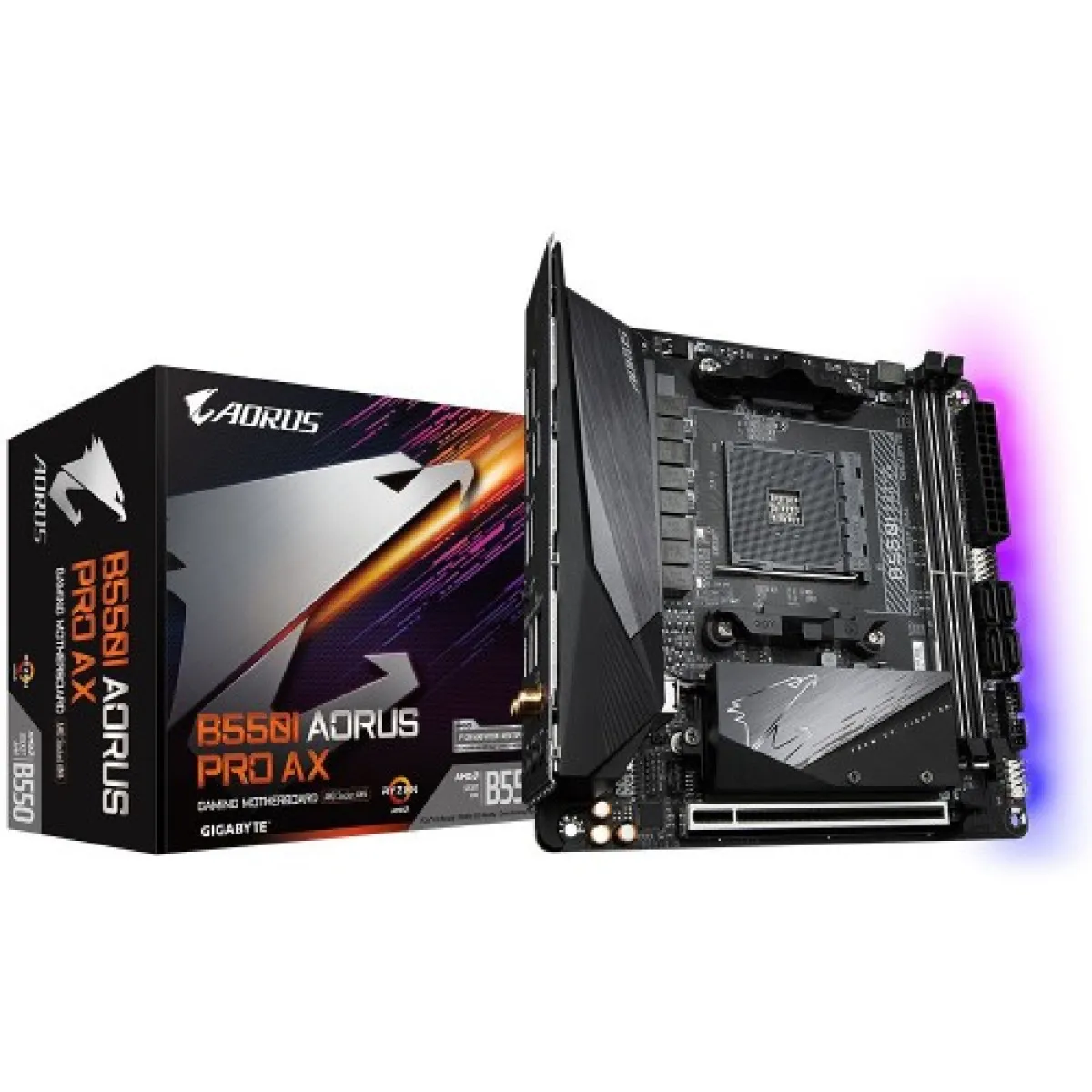

GIGABYTE B550I AORUS PRO AX AMD Motherboard
GIGABYTE B550I AORUS PRO AX is a mini-ITX motherboard perfect for building a small form factor PC for people who demand higher performance but also care about aesthetics. The compact yet powerful pc delivers amazing performance with the latest CPU, graphic card, and blazing-fast connectivity. It also equips with a comprehensive thermal solution to keep it cool under a heavy workload. Performance is not compromised by its size. It supports AMD Ryzen 5000 Series/ 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors. It supports Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs. It features Direct 8 Phases Digital VRM Solution with 90A Smart Power Stage (SPS). It has an advanced Thermal Design with an Extended & Multi-Layered Heatsink and Thermal Baseplate. It comes with Ultra Durable PCIe 4.0 Ready x16 Slot. It has Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard. It features an Onboard Intel WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna. It comes with AMP-UP Audio with ALC1220-VB and Nichicon Audio Capacitors for Rear 120dB SNR. It supports Blazing Fast 2.5GbE LAN with Bandwidth Management. It has been designed with USB 3.2 Gen2 Type-C & DisplayPort + Dual HDMI Support. RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips. It features Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP. Q-Flash Plus Update BIOS without Installing the CPU, Memory, and Graphics Card. It has pre-installed IO Shield for Easy and Quick Installation. It has 3 years of warranty.
| BASIC INFORMATION | |
| Graphics | Integrated in the New Generation AMD Ryzen with Radeon Graphics processors: 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. 2 x HDMI ports, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. Support for up to 3 displays at the same time |
| Supported CPU | AMD Socket AM4, support for AMD Ryzen 5000 Series/ 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors |
| Chipset | AMD B550 |
| Audio | Realtek ALC1220-VB codec * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | Mini-ITX Form Factor; 17.0cm x 17.0cm |
| Type | Dual-channel memory architecture |
| Memory Specifications | |
| Maximum Memory | Up to 64 GB (32 GB single DIMM capacity) |
| Slots | 2 x DDR4 DIMM |
| Graphics Specifications | |
| Max Shared Memory | 16 GB |
| Expansion Slots | |
| M.2 Socket | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2260/2280 SSDs: - 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs - New Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB) on the back of the motherboard, integrated in the Chipset, supporting Socket 3, M key, type 2260/2280 SSDs: - Supporting SATA and PCIe 3.0 x4/x2 SSDs |
| PCI | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. |
| HDMI | 2 x HDMI ports, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x speaker header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Clear CMOS jumper |
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) |
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2260/2280 SSDs: - 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs - New Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB) on the back of the motherboard, integrated in the Chipset, supporting Socket 3, M key, type 2260/2280 SSDs: - Supporting SATA and PCIe 3.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors, integrated in the Chipset: - Support for RAID 0, RAID 1, and RAID 10 |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) |
| USB (s) | CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header 2 x USB 2.0/1.1 ports available through the internal USB header |
| WARRANTY | |
| Manufacturing Warranty | 3 Years |
| Special | |
| Bundled Software | Norton Internet Security (OEM version) XSplit Gamecaster + Broadcaster (12 months license) Realtek 8125 Gaming LAN Bandwidth Control Utility |
