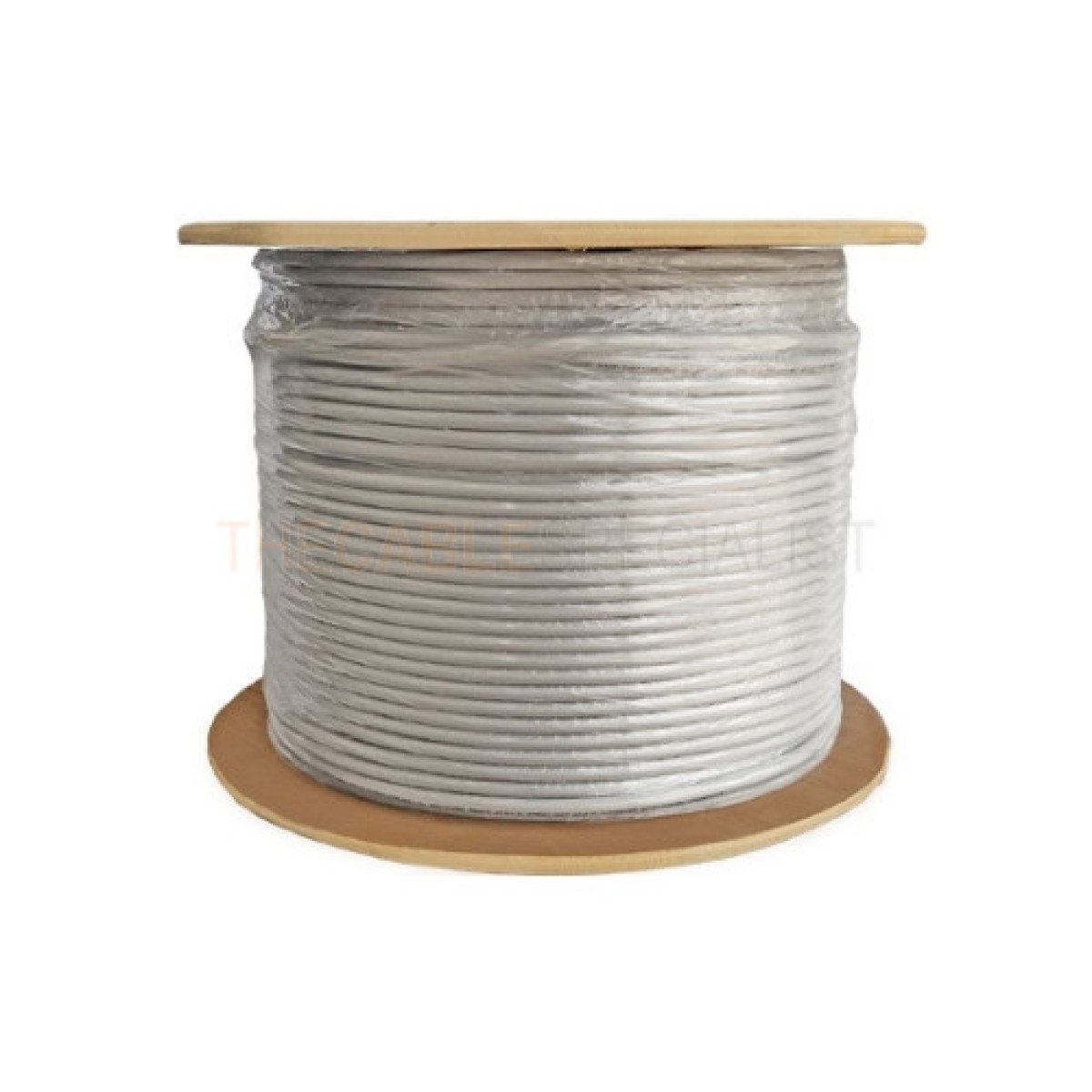

R&M R195718 CAT6A U/UTP 4P 500MHz 23AWG LSZH Gray 305m Installation Cable
- Regular Price ৳0
- Brand: R&M
- Product Model: R195718
- Availability: Out Of Stock
- SKU: 202305060238
-
৳0
- Buy this Product and Get Extra 0 Off on Laptop & Desktop Computer T&C Available offers
| BASIC INFORMATION | |
| Application | Primary (Campus), Secondary (Riser), Tertiary (Horizontal) IEEE 802.3an: 10Base-T; 100Base-TX; 1000Base-T; 10GBase-T IEEE 802.5 16 MB; ISDN; TPDDI; ATM IEEE 802.3af-2002: POE; IEEE 802.3at: POE+ |
| Cable Lay-Up | 4 paires to the core with cross separator |
| Conductor | Bare solid copper wire AWG23 |
| Fire Rating | LSZH IEC 60332-1; IEC 60754-2; IEC 61034 |
| Insulation | Polyethylene ≤ Ø 1.22 mm |
| Sheath | LSZH, gray |
| Twisting | 2 wires to the pair |
| Weight | 58 kg / km |
| Technical Specification | |
| Bending Radius | ≥ 35 mm during operation (without load) ≥ 55 mm during installation (with load) |
| Cable Designation | Cat6A U/UTP |
| Outer Diameter | Nominal 7.0 +/- 0.8 mm |
| Pulling Pressure | 1090 MJ / km |
| Segregation Class | B |
| Temperature ange | During operation: -20°C…+ 60°C During installation: 0°C…+ 50°C |
| Tensile Strength | 100 N |
R&M R195718 Cat6A U/Utp 4P 500Mhz 23Awg Lszh Gray 305M Installation Cable in Bangladesh
R&M R195718 CAT6A U/UTP 4P 500MHz 23AWG LSZH Gray 305m Installation Cable
The R&M R195718 CAT6A U/UTP 4P 500MHz 23AWG LSZH Gray 305m Cable comes with Bare solid copper wire AWG23. It has a Polyethylene ≤ Ø 1.22 mm Insulation. It offers twisting of 2 wires to the pair. The R&M R195718 CAT6A U/UTP 4P 500MHz 23AWG LSZH Gray 305m Cable comes with 4 pairs to the core with a cross separator. It does not have a pair screen and overall screen. The sheath of the LSZ cable is gray. The R&M R195718 CAT6A U/UTP 4P 500MHz LSZH Gray Cable comes with no warranty.
What is the price of R&M R195718 Cat6A U/Utp 4P 500Mhz 23Awg Lszh Gray 305M Installation Cable R&M in Bangladesh?
The latest price of R&M R195718 Cat6A U/Utp 4P 500Mhz 23Awg Lszh Gray 305M Installation Cable R&M in Bangladesh is . You can buy the R&M R&M R195718 Cat6A U/Utp 4P 500Mhz 23Awg Lszh Gray 305M Installation Cable R&M at best price from our website or visit Unix Network Showroom Jessore Computer city . Unix Network offers you R&M R195718 Cat6A U/Utp 4P 500Mhz 23Awg Lszh Gray 305M Installation Cable with the best price in Bangladesh Which, is your budget-friendly. We also offers you free shipping with this R&M R195718 Cat6A U/Utp 4P 500Mhz 23Awg Lszh Gray 305M Installation Cable. Order Online for nationwide cash on delivery or visit our Shop. Follow us on Facebook for regular updates and offers. Subscribe our Youtube channel for reviews of gadget Products. You can call mobile number 01715143685 for a free consultation.Your comments on the following topics will accelerate our progress.R195718 R&M Network Cable Connector lowest price in bd
R&M Network Cable Connector R195718 price in jashore
Be the first to ask a question about this product.
