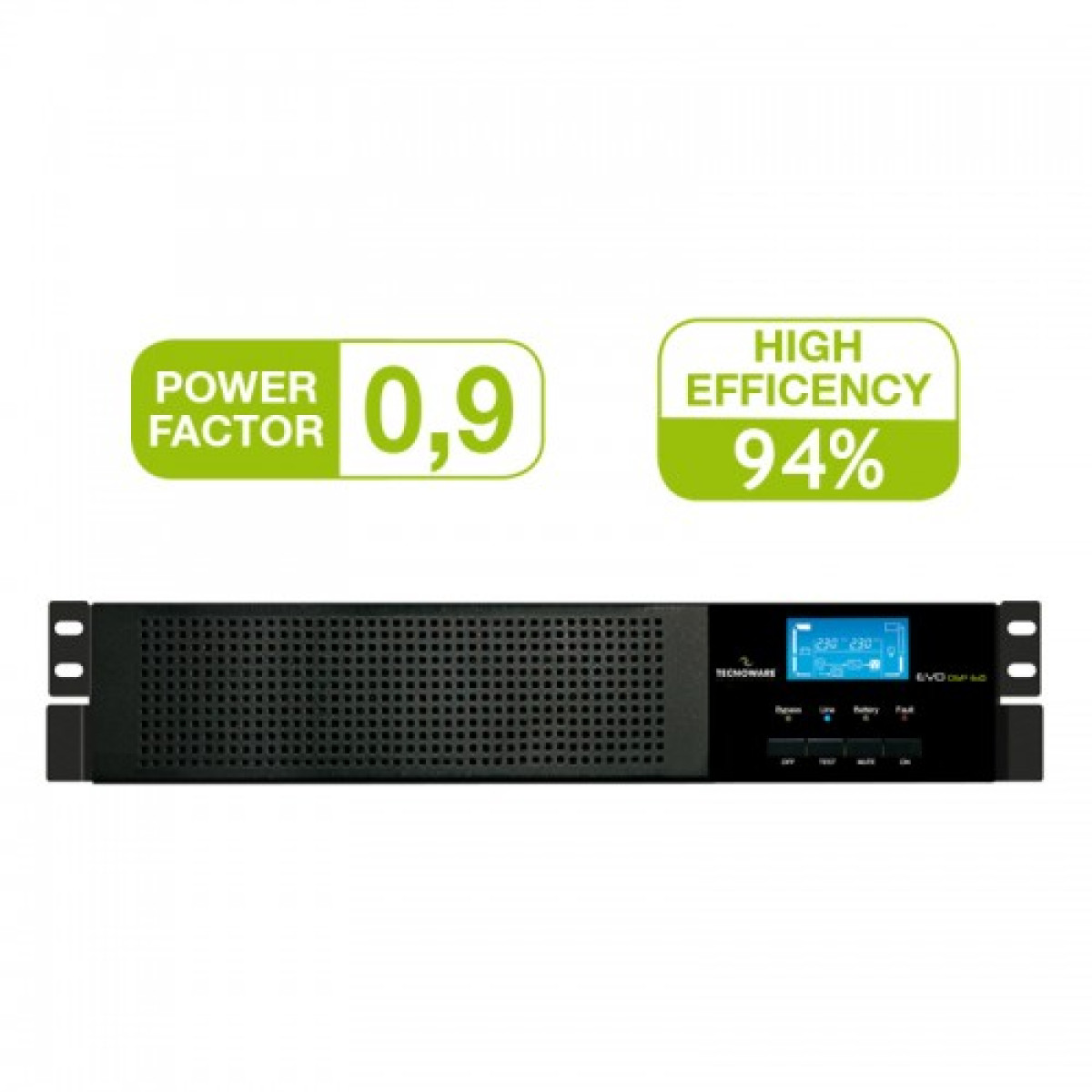

Tecnoware FGCEVDP6MMRM/00 6KVA EVO DSP MM Online UPS
Tecnoware FGCEVDP6MMRM/00 Online UPS features with On-Line double conversion technology without transformer (VFI-SS-111), Power Factor 0,9. Here the Rectifier realized by IGBT technology with Active PFC Circuit (0.9). This UPS also Compatible with generators and EPO (Emergency Power Off). The Output voltage and frequency can be regulated from the front pane, Static and Manual Bypass. And here used Tecno Manager UPS Management Software. The UPS has 94% High Efficiency calculated in double conversion mode at 100% load, which is according to 62040-3: 2011 standard. This Online UPS also features with SINGLE-PHASE/SINGLE-PHASE 230/230 50/60Hz, POWER 6 kVA, COS 0.9, Online Double Conversion technology without transformer, DSP System, Multifunction LCD Display, Micro processor drived battery charge system, STATIC and MANUAL BYPASS, RS232 and USB, TECNOMANAGER Software.
This New Online UPS comes with 02 Years warranty.
| BASIC INFORMATION | |
| Capacity | 6 kVA |
| Battery | Type: Lead acid, sealed, maintenance free |
| Main Features | |
| Frequency (Battery Mode) | 50/60HZ |
| Load Capacity | Overload capability (Line mode): 110% for 10 minutes, 130% for 1 minute, >130% for 1 second Overload capability (Battery mode): 110% for 30 seconds, 130% for 10 seconds, >130% for 1 second Efficiency: 94%, calculated in double conversion mode at 100% load to 100% load according to standard 62040-3 |
| Input Features | |
| Frequency | 50/60 Hz (selectable) |
| Power Factor | 0.99 |
| Voltage Range | Nominal voltage: 208Vac/220Vac/230Vac/240Vac Input voltage range: 176Vac-300Vac from 50% to 100% load, 110Vac-300Vac from to 50% load |
| Output Features | |
| Power Factor | Nominal voltage: 208Vac/220Vac/230Vac/240Vac Voltage Regulation at %100 linear load (On-Line and Battery mode): ±1% |
| Voltage Range | Nominal voltage: 208Vac/220Vac/230Vac/240Vac Voltage Regulation (On-Line and Battery mode): ±1% |
| Type of Wave | Sinewave |
| Transfer Time | 0 ms (On-Line) |
| WARRANTY | |
| Manufacturing Warranty | 02 Years Warranty |
