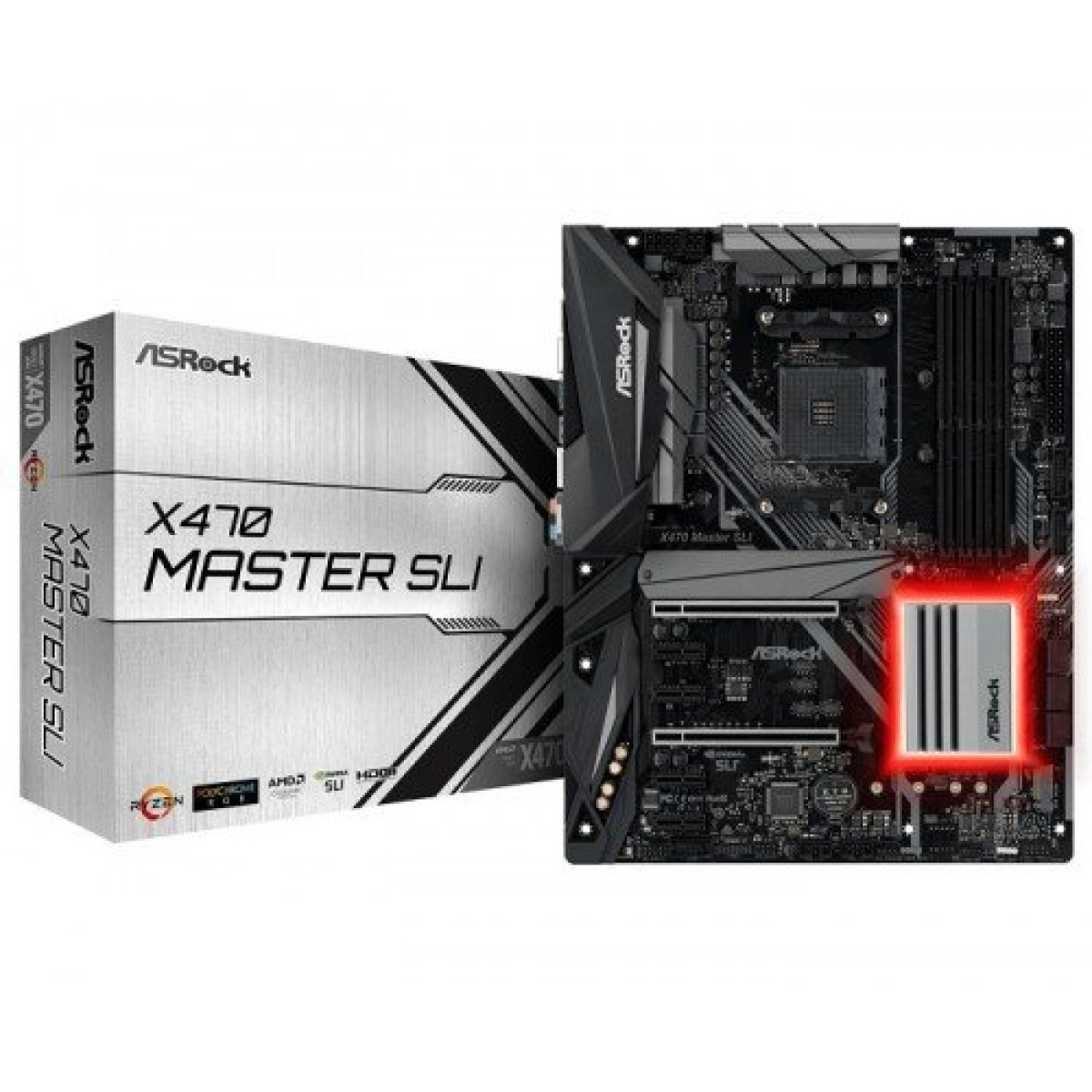

ASRock X470 Master SLI Motherboard

Description

ASRock X470 Master SLI Motherboard

Basic Information

Supported CPU - Supports AMD AM4 Socket Ryzen Series CPUs (Summit Ridge, Raven Ridge and Pinnacle Ridge)

- Digi Power design

- 12 Power Phase design

- Supports 105W Water Cooling (Pinnacle Ridge); Supports 95W Water Cooling (Summit Ridge); Supports 65W Water Cooling (Raven Ridge)

Chipset AMD Promontory X470

BIOS - 256Mb AMI UEFI Legal BIOS with GUI support

- Supports "Plug and Play"

- ACPI 5.1 compliance wake up events

- Supports jumperfree

- SMBIOS 2.3 support

- CPU, VCORE_NB, DRAM, VPPM, PCH 1.05V, +1.8V, VDDP, PROM 2.5V, Voltage Multi-adjustment

Form Factor - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm

- 2oz Copper PCB

Expansion Slots

PCI - 2 x PCI Express 3.0 x16 Slots (single at x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE4))*

AMD Ryzen series CPUs (Raven Ridge)

- 1 x PCI Express 3.0 x16 Slot (single at x8 (PCIE1))*

M.2 Socket 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen2 x2 (10 Gb/s

Memory

Type Dual Channel DDR4 Memory Technology

Slots 4 x DDR4 DIMM Slots

15μ Gold Contact in DIMM Slots

Supported Memory - AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933/2667/2400/2133 ECC & non-ECC, un-buffered memory*

- AMD Ryzen series CPUs (Summit Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory*

- AMD Ryzen series CPUs (Raven Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933(OC) / 2667/2400/2133 non-ECC, un-buffered memory*

Maximum Mamory 64 GB

Graphics

Graphics -Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 30Hz

- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)

- Supports HDCP with HDMI Port

- Supports 4K Ultra HD (UHD) playback with HDMI Port

- DirectX 12, Pixel Shader 5.0

Max Shared Memory 4 GB

Connector & Ports

HDMI 1 x HDMI Port

USB (s) - 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)

- 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)

- 6 x USB 3.1 Gen1 Ports (Supports ESD Protection)

LAN Port (s) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

Supported Storage - 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug

- 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge)*

- 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen2 x2 (10 Gb/s)*

Audio - 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)

- Premium Blu-ray Audio support

- Supports Surge Protection

- Nichicon Fine Gold Series Audio Caps

Internal I/O Ports - 1 x PS/2 Mouse/Keyboard Port

- 1 x HDMI Port

- 1 x Optical SPDIF Out Port

- 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)

- 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)

- 6 x USB 3.1 Gen1 Ports (Supports ESD Protection)

- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Software and UEFI

Software

Warranty Information

Manufacturing Warranty 03 years

Description:

ASRock X470 Master SLI ATX AM4 AMD Motherboard

Description:

What is the price of ASRock X470 Master SLI ATX AM4 AMD Motherboard computer accessories in Bangladesh?

Looking to upgrade your gaming rig or build a powerful workstation? Look no further than the ASRock X470 Master SLI ATX AM4 AMD Motherboard available at Unix Network in Jashore, Bangladesh. This top-of-the-line motherboard boasts support for AMD Ryzen processors, allowing for smooth and efficient performance for all your computing needs. With features such as support for SLI and Crossfire multi-GPU setups, Ultra M.2 and NVMe storage options, and high-quality audio capabilities, the ASRock X470 Master SLI offers everything you need for a high-performance PC build. Visit Unix Network today to get your hands on this advanced motherboard and take your gaming and productivity to the next level.

ASRock X470 Master SLI Overview
