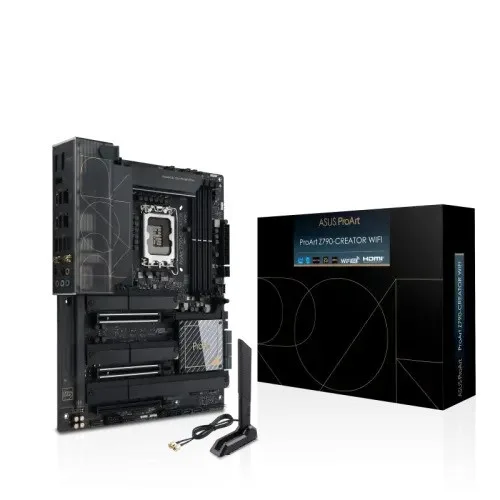

Buy Asus ProArt Z790-CREATOR WIFI Motherboard in Bangladesh
- Brand: Asus
- Product Code: ProArt Z790-CREATOR WIFI
- Availability: Out Of Stock
Specification
| BASIC INFORMATION | |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Raid controller | Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10 |
| Chipset | Intel Z790 Chipset |
| Slots | 4 x DIMM |
| Audio | 5 x Audio jacks |
| BIOS | 256 Mb |
| Expansion Slots | |
| M.2 Socket | Total supports 4 x M.2 slots |
| PCI | Intel 13th & 12th Gen Processors 2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes) Intel Z790 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) |
| Graphics Specifications | |
| Graphics | 1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4) 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1) |
| Memory Specifications | |
| Maximum Memory | Max. 128GB |
| Supported Memory | 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC) / 5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II |
| Type | DDR5 |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 2 x DisplayPort |
| HDMI | 1 x HDMI port |
| Internal I/O Ports | Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 5 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector 1 x 6-pin +12V Power connector Storage related 4 x M.2 slots (Key M) 8 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2x2 (support(s) USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 header(s) 1 x AURA RGB header(s) 1 x Clear CMOS header 1 x COM Port header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x M.2 slot (Key E) 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header Back Panel I/O Ports 2 x Thunderbolt 4 USB Type-C port(s) 6 x USB 3.2 Gen 2 port(s) (6 x Type-A) 2 x DisplayPort (Input only) 1 x HDMI port 1 x ASUS Wi-Fi Module 1 x Marvell AQtion 10Gb Ethernet port 1 x Intel 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack button |
| LAN Port (s) | 1 x Marvell AQtion 10Gb Ethernet 1 x Intel 2.5Gb Ethernet ASUS LANGuard |
| Supported Storage | Total supports 4 x M.2 slots and 8 x SATA 6Gb/s ports* Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) Intel Z790 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 8 x SATA 6Gb/s ports |
| USB (s) | Rear USB (Total 8 ports) 2 x Thunderbolt 4 port(s) (2 x USB Type-C) with up to 5V/3A, 15W charging support 6 x USB 3.2 Gen 2 port(s) (6 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2x2 connector(s) (support(s) USB Type-C with 60W PD 3.0 / QC 4+) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports |
| Wireless Communication module | Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band Bluetooth v5.3 |
| Special | |
| Bundled Software | ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Fan Xpert 4 with AI Cooling II - Two-Way AI Noise Cancelation - Power Saving AI Suite 3 - Easy Optimization with AI Overclocking - TPU - DIGI+ Power Control - Turbo app - PC Cleaner ASUS CPU-Z IT Management software supported - ASUS Control Center Express(ACCE) ProArt Creator Hub CreationFirst MyAsus Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey MemTest86 |
| Special Feature | ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - Enhanced DRAM Overcurrent Protection - ESD Guards - LANGuard - Overvoltage Protection - SafeSlot - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - Box Headers - ProCool II - Pre-mounted I/O shield AURA Sync - AURA RGB header(s) - Addressable Gen 2 header(s) |
| WARRANTY | |
| Manufacturing Warranty | 3 years warranty |
Description
Asus ProArt Z790-CREATOR WIFI ATX Motherboard: Elevate Your Creative Workflow
The Asus ProArt Z790-CREATOR WIFI ATX Motherboard is meticulously designed for creative professionals and tech enthusiasts who demand the highest levels of performance and reliability. This motherboard is equipped with the latest Intel Z790 chipset, offering exceptional capabilities for multitasking, heavy workloads, and gaming. Featuring a robust power delivery system, the ProArt Z790-CREATOR ensures that your CPU operates at peak performance, making it ideal for video editing, 3D rendering, and other resource-intensive applications.
One of the standout benefits of this motherboard is its extensive connectivity options. With support for Thunderbolt 4, USB 3.2 Gen 2x2, and Wi-Fi 6E, you can easily connect a multitude of peripherals and high-speed storage devices. This versatility not only enhances your productivity but also ensures that you're future-proofed for upcoming technology. Whether you're transferring large files or streaming high-quality content, the ProArt Z790-CREATOR keeps your workflow smooth and efficient.
Use cases for the ProArt Z790-CREATOR are abundant. Photographers can benefit from rapid data transfer speeds while editing high-resolution images, while video editors will appreciate the seamless playback of 4K footage. Gamers too will find this motherboard advantageous, as it supports the latest graphics cards and provides the power needed for competitive gaming. The comprehensive cooling solutions, including multiple fan headers and a thermal pad, keep the system stable even during intense sessions.
Customers should consider purchasing the Asus ProArt Z790-CREATOR WIFI ATX Motherboard for its unmatched combination of performance, build quality, and advanced features tailored for creative and professional use. Its durable construction ensures longevity, while the user-friendly BIOS interface makes installation and configuration a breeze. In a market where efficiency is key, this motherboard stands out as a compelling choice for those looking to enhance their computing experience.
