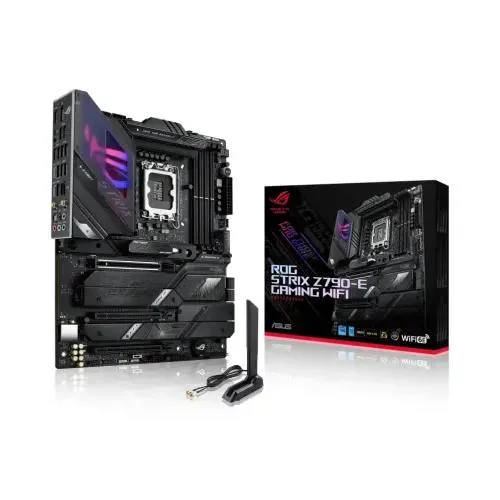

ASUS ROG STRIX Z790-E GAMING WIFI ATX Motherboard

BASIC INFORMATION
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Supported CPU	Intel Socket LGA1700 for 14th Gen, 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Intel Z790 Chipset
Slots	4 x DIMM
Audio	5 x Gold-plated audio jacks
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Expansion Slots
PCI	Intel 14th, 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel Z790 Chipset 2 x PCIe 4.0 x16 slots (support x4 mode) 1 x PCIe 3.0 x1 slot
Graphics Specifications
Graphics	1 x DisplayPort (Supports max. 8K@60Hz as specified in DisplayPort 1.4.) 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1.)
Memory Specifications
Maximum Memory	128GB
Supported Memory	7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II
Type	DDR5
PORTS, CONNECTORS & SLOTS
Display Port (s)	1 x DisplayPort
HDMI	1 x HDMI port
Internal I/O Ports	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors Storage related 5 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® with up to 30W PD Fast-charge) 2 x USB 3.2 Gen 1 header support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Alternative PCIe Mode Switch 1 x AURA RGB header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Start button 1 x Thermal Sensor header 1 x Thunderbolt™ (USB4) header
LAN Port (s)	1 x Intel 2.5Gb Ethernet ASUS LANGuard
Supported Storage	Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel Z790 Chipset M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode & SATA modes) 4 x SATA 6Gb/s ports
USB (s)	Rear USB (Total 12 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 7 x USB 3.2 Gen 2 ports (6 x Type-A + 1 x USB Type-C) 4 x USB 3.2 Gen 1 ports (4 x Type-A) Front USB (Total 9 ports) 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C with up to 30W PD Fast-charge) 2 x USB 3.2 Gen 1 header support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Wireless Communication module	Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band Bluetooth v5.3
Special
Bundled Software	ROG Exclusive Software - GameFirst VI - ROG CPU-Z - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS Sound Unbound ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - Aura Creator- Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - Easy Optimization with AI Overclocking - TPU - DIGI+ VRM - Turbo app - PC Cleaner MyAsus Norton 360 for Gamers WinRAR UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey MemTest86
WARRANTY
Manufacturing Warranty	3 years

ASUS ROG STRIX Z790-E GAMING WIFI 14th Gen  Motherboard features LGA 1700 socket and Z790 chipset which supports Intel Socket LGA1700 for 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold, and Celeron Processors. This motherboard comes with 4 x DIMM that supports DDR5 Dual-Channel RAM up to 128GB of memory with speeds up to 7200 MHz when overclocked. This provides you with increased multitasking and rendering capabilities. It comes with 5x M.2 PCIe and four SATA III storage interfaces allow you to combine an array of storage drives to build a massive gaming library. It also has a single PCIe 5.0 x16 slot that supports resource-intensive graphics cards, while two PCIe 4.0 x16 (in x4 mode) and one PCIe 3.0 x1 slots support a variety of utility cards. Several USB 2.0, 3.2 Gen 1, Gen 2, and Gen 2x2 interfaces are accessible via the back panel and internal headers, providing ample support for peripherals such as mice, keyboards, and controllers as well as resource-demanding devices such as external drives. Bluetooth 5.2 technology can be used by wireless devices to provide a reliable cable-free experience. Use Wi-Fi 6E (802.11ax) to connect to your wireless network, or the integrated 2.5 Gigabit Ethernet port if you prefer a wired connection. The ASUS ROG STRIX Z790-E GAMING WIFI can boost performance with automatic AI overclocking and cooling, enhancing your games and productivity without sacrificing thermal capabilities. AI noise cancellation is an audio-focused utility that reduces background noise, allowing others to hear you more clearly when playing team-based games or delivering presentations remotely. GameFirst VI is an artificial intelligence networking tool that prioritizes and optimizes your network connection for smoother online gameplay, which is essential for competitive online titles. ASUS ROG STRIX Z790-E GAMING WIFI delivers stable power throughout the entire motherboard, maintaining electrical volume whether performing simple tasks or operating at full power during resource-demanding processes, thanks to 16+1 70A power stages with ProCool II connectors, alloy chokes, and durable capacitors. The 14th Gen Motherboard incorporates a large VRM heatsink for capacitors and chokes, as well as integrated double-sided M.2 heatsinks and a unique PCH fanless heatsink, to ensure your system remains cool under heavy loads, delivering better thermal performance while preventing throttling. Fan Xpert 4 software and hybrid fan headers control fans and liquid pump elements for enhanced cooling that can be customized. Immerse yourself in your favorite games with the help of high-fidelity audio powered by the Savitech SV3H712 amplifier and ROG SupremeFX 7.1-channel ALC4080 codec. Premium capacitors and audio jacks with gold plating enhance audio conductivity for a dependable signal and reduce static and other interference. The ASUS ROG STRIX Z790-E GAMING WIFI ATX Motherboard provides reliable connectivity for your peripherals between the internal headers and the backplate. Webcams, microphones, and external storage drives can transfer data at speeds of up to 5 and 10 Gb/s through USB-A and USB-C 3.2 Gen 1 and Gen 2 ports, respectively. For devices that require a lot of resources, like storage arrays and audio interfaces, a USB-C 3.2 Gen 2x2 port offers up to 20 Gb/s data transfer speed. In addition to facilitating data transfer, a front panel USB-C 3.2 Gen 2x2 port provides up to 30W Power Delivery to charge and support peripherals that require a lot of resources. With an internal Thunderbolt 4 header, you can increase your connectivity and take advantage of high-speed connectivity that supports quick transfer rates and Power Delivery technologies. In Bangladesh, you can get the original From Unix Network. We have a large collection of the latest to purchase for your . Order Online Or Visit your Nearest Shop to get yours at the lowest price. The ASUS ROG STRIX Z790-E GAMING WIFI comes with 3 years warranty.

Are you a computer enthusiast or a dedicated student looking for the perfect motherboard to take your gaming and studying to the next level? Look no further than the ASUS ROG STRIX Z790-E GAMING WIFI ATX Motherboard, available at Unix Network in Jashore, Bangladesh.

Crafted with top-of-the-line features and cutting-edge technology, the ASUS ROG STRIX Z790-E GAMING WIFI Motherboard is a must-have for anyone seeking quality, performance, and speed in their PC setup. Designed specifically for gamers and students alike, this motherboard offers unparalleled functionality and reliability that will elevate your computing experience to new heights.

Featuring a sleek ATX form factor, the ASUS ROG STRIX Z790-E GAMING WIFI Motherboard is designed to fit seamlessly into any PC build, no matter the size or style. The motherboard is equipped with ASUS Aura Sync RGB lighting, allowing you to customize your setup with millions of colors and a variety of lighting effects for a truly immersive gaming experience.

But it's not just about looks – the ASUS ROG STRIX Z790-E GAMING WIFI Motherboard is packed with powerful performance capabilities to ensure smooth and efficient operation. With support for Intel 12th Gen processors and PCIe 5.0, this motherboard delivers lightning-fast speeds and seamless multitasking for all your gaming and academic needs.

Whether you're a casual gamer or a serious student, the ASUS ROG STRIX Z790-E GAMING WIFI Motherboard is sure to impress with its unmatched performance and reliability. Visit Unix Network in Jashore, Bangladesh today to experience the power and speed of this exceptional motherboard for yourself. Upgrade your PC setup and take your computing experience to the next level with the ASUS ROG STRIX Z790-E GAMING WIFI Motherboard.

As a computer user or student in search of the ultimate motherboard for your gaming rig or workstation, look no further than the ASUS ROG STRIX Z790-E GAMING WIFI ATX Motherboard. This powerful motherboard is a standout in the world of high-performance computing, boasting cutting-edge features and top-quality components that are sure to take your gaming experience to the next level.

Designed with speed and efficiency in mind, the ASUS ROG STRIX Z790-E GAMING WIFI ATX Motherboard is equipped with the latest Intel Z790 chipset, allowing for seamless multitasking and smooth gameplay. Its support for DDR4 memory up to 128GB ensures lightning-fast performance, making it ideal for power users who demand nothing but the best.

But what truly sets this motherboard apart is its impeccable build quality and attention to detail. Featuring top-of-the-line components and a robust design, the ASUS ROG STRIX Z790-E GAMING WIFI ATX Motherboard is built to last, ensuring years of reliable use without any compromise on performance.

One of the standout features of this motherboard is its built-in WiFi functionality, allowing for convenient wireless connectivity without the need for additional adapters or cables. This is especially useful for students or users on the go who rely on a stable internet connection for their work or gaming needs.

Whether you're a seasoned pro looking to push your system to its limits or a student in need of a reliable and high-performance motherboard for your school projects, the ASUS ROG STRIX Z790-E GAMING WIFI ATX Motherboard is sure to impress. With its unparalleled speed, top-quality components, and sleek design, this motherboard is a must-have for anyone serious about their computing experience.

For all your computer hardware needs, look no further than Unix Network in Jashore, Bangladesh. Our experienced staff is ready to assist you with finding the perfect motherboard for your needs, and our top-notch customer service ensures a smooth and stress-free shopping experience. Upgrade your system today with the ASUS ROG STRIX Z790-E GAMING WIFI ATX Motherboard and take your computing experience to new heights.

Are you looking to take your gaming experience to the next level? Look no further than the ASUS ROG STRIX Z790-E GAMING WIFI ATX Motherboard. This high-quality motherboard is perfect for both computer enthusiasts and students who demand top-notch performance and speed.

Designed with the latest technology, the ASUS ROG STRIX Z790-E GAMING WIFI ATX Motherboard boasts superior quality and performance that is sure to impress even the most hardcore gamers. With features such as built-in WiFi, overclocking capabilities, and RGB lighting, this motherboard is a must-have for anyone looking to build the ultimate gaming rig.

The ASUS ROG STRIX Z790-E GAMING WIFI ATX Motherboard is built to deliver lightning-fast speeds and impeccable performance, making it ideal for gaming, video editing, and multitasking. With its ATX form factor, this motherboard is compatible with a wide range of components, allowing you to customize your setup to suit your needs.

At Unix Network in Jashore, Bangladesh, we pride ourselves on offering the latest and greatest tech products to our customers. Our knowledgeable staff is dedicated to helping you find the perfect motherboard for your needs, whether you're a seasoned pro or just starting out. With the ASUS ROG STRIX Z790-E GAMING WIFI ATX Motherboard, you can be confident that you're getting a top-of-the-line product that will exceed your expectations.

Don't settle for anything less than the best when it comes to your gaming setup. Upgrade to the ASUS ROG STRIX Z790-E GAMING WIFI ATX Motherboard today and experience unparalleled quality, performance, and speed. Trust Unix Network in Jashore, Bangladesh to provide you with the best in tech products and customer service. Your gaming rig will thank you!
