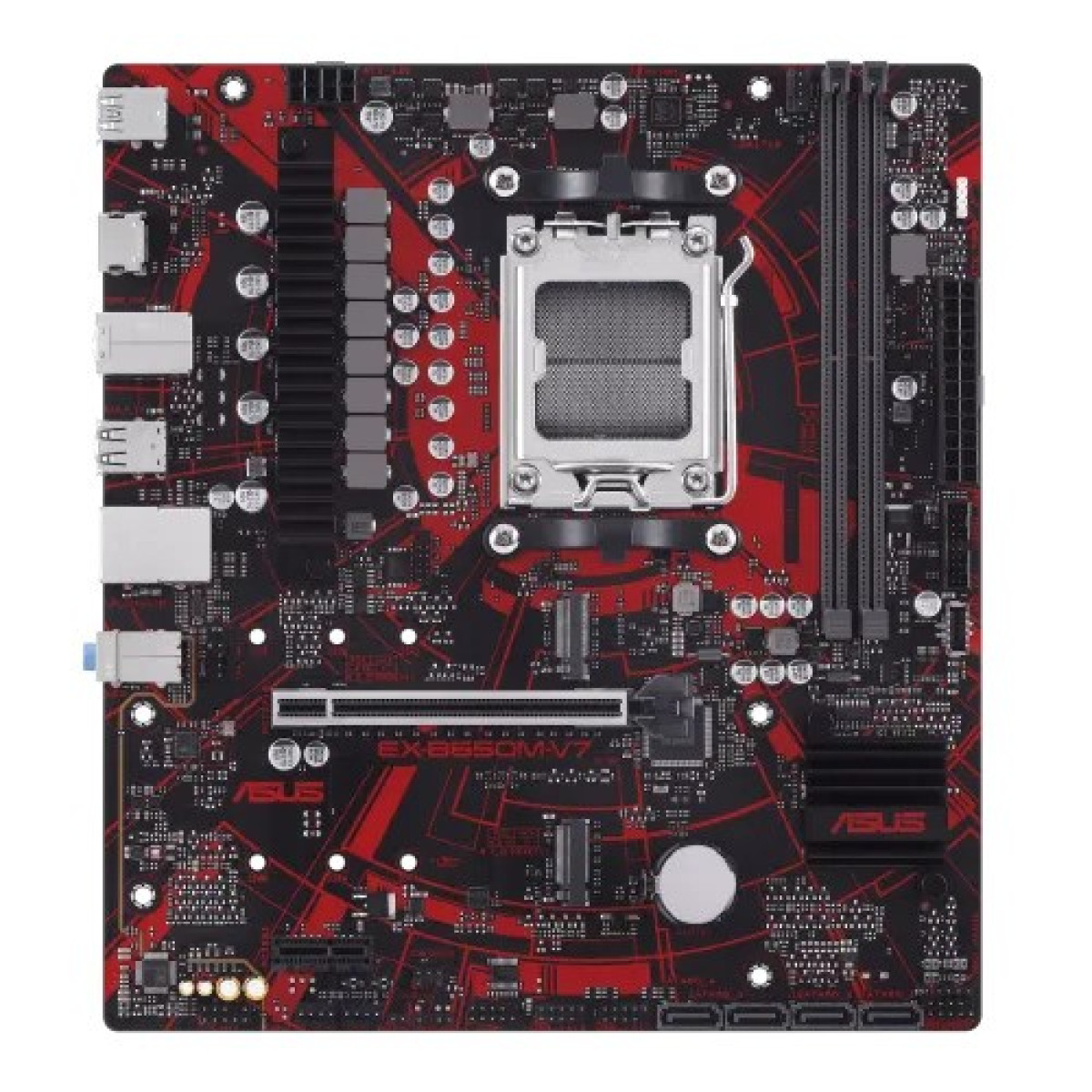

Asus EX-B650M-V7 AM5 micro-ATX Motherboard
- Brand: Asus
- Product Code: EX-B650M-V7
- Availability: In Stock
Specification
| BASIC INFORMATION | |
| Form Factor | micro-ATX Form Factor 9.6 inch x 8.7 inch ( 24.4 cm x 22.1 cm ) |
| Raid controller | AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10 |
| Supported CPU | AMD Socket AM5 for AMD Ryzen 8000 / 7000 Series Desktop Processors |
| Chipset | AMD B650 |
| Slots | 2 x DIMM slots |
| Audio | 3 x Audio jacks |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Expansion Slots | |
| PCI | AMD Ryzen 7000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD B650 Chipset 1 x PCIe 4.0 x1 slot |
| Graphics Specifications | |
| Graphics | 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1.) |
| Memory Specifications | |
| Maximum Memory | 96GB |
| Type | DDR5 |
| PORTS, CONNECTORS & SLOTS | |
| HDMI | 1x HDMI |
| Internal I/O Ports | Back Panel I/O Ports 2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A) 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x HDMI port 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port Internal I/O Connectors Fan and Cooling-related 1 x 4-pin CPU Fan header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C ) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header |
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet |
| Supported Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen™ 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD B650 Chipset 4 x SATA 6Gb/s ports |
| USB (s) | Rear USB (Total 8 ports) 2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A) 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Special | |
| Special Feature | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - VRM heatsink design Non-stop Action - Lightning Boot Non-stop Challenger - ASUS iCafe labs certified Non-stop Durability - Luminous anti-moisture coating - USBGuard |
| WARRANTY | |
| Manufacturing Warranty | 3 Years |
Description
Asus EX-B650M-V7 AM5 Micro-ATX Motherboard Overview
The Asus EX-B650M-V7 AM5 micro-ATX motherboard is a remarkable piece of technology designed for both gamers and professionals who require outstanding performance and reliability. This motherboard is equipped with the latest AM5 socket, making it compatible with AMD's Ryzen 7000 series processors, allowing users to harness the latest advancements in computing power. The compact micro-ATX form factor provides a perfect balance of size and performance, making it an ideal choice for compact builds without compromising on features.
Benefits of the Asus EX-B650M-V7
One of the key benefits of the Asus EX-B650M-V7 is its support for high-speed DDR5 memory, enabling enhanced performance in demanding applications and gaming scenarios. With multiple M.2 slots for SSDs, users can configure their storage for exceptional speed and efficiency, significantly reducing load times and improving overall system responsiveness. Additionally, the motherboard supports PCIe 5.0, offering faster data transfer rates and future-proofing your system for upcoming hardware advancements.
Use Cases
This motherboard is perfect for gamers looking to build a high-performance rig, content creators who require rapid processing speeds for video editing, and professionals who need reliable hardware for demanding applications. The Asus EX-B650M-V7 caters to a wide range of users, from casual gamers to hardcore enthusiasts, making it a versatile choice for any build.
Why You Should Buy the Asus EX-B650M-V7
Investing in the Asus EX-B650M-V7 means choosing a product that emphasizes quality and performance. With its robust thermal design, high-quality capacitors, and premium components, this motherboard is built to last. The intuitive BIOS and user-friendly installation process make it accessible for beginners while offering advanced features for seasoned builders. Additionally, the local availability in Jashore, Bangladesh, ensures that you can easily acquire this motherboard with reliable after-sales support, making it a smart choice for your next build.
