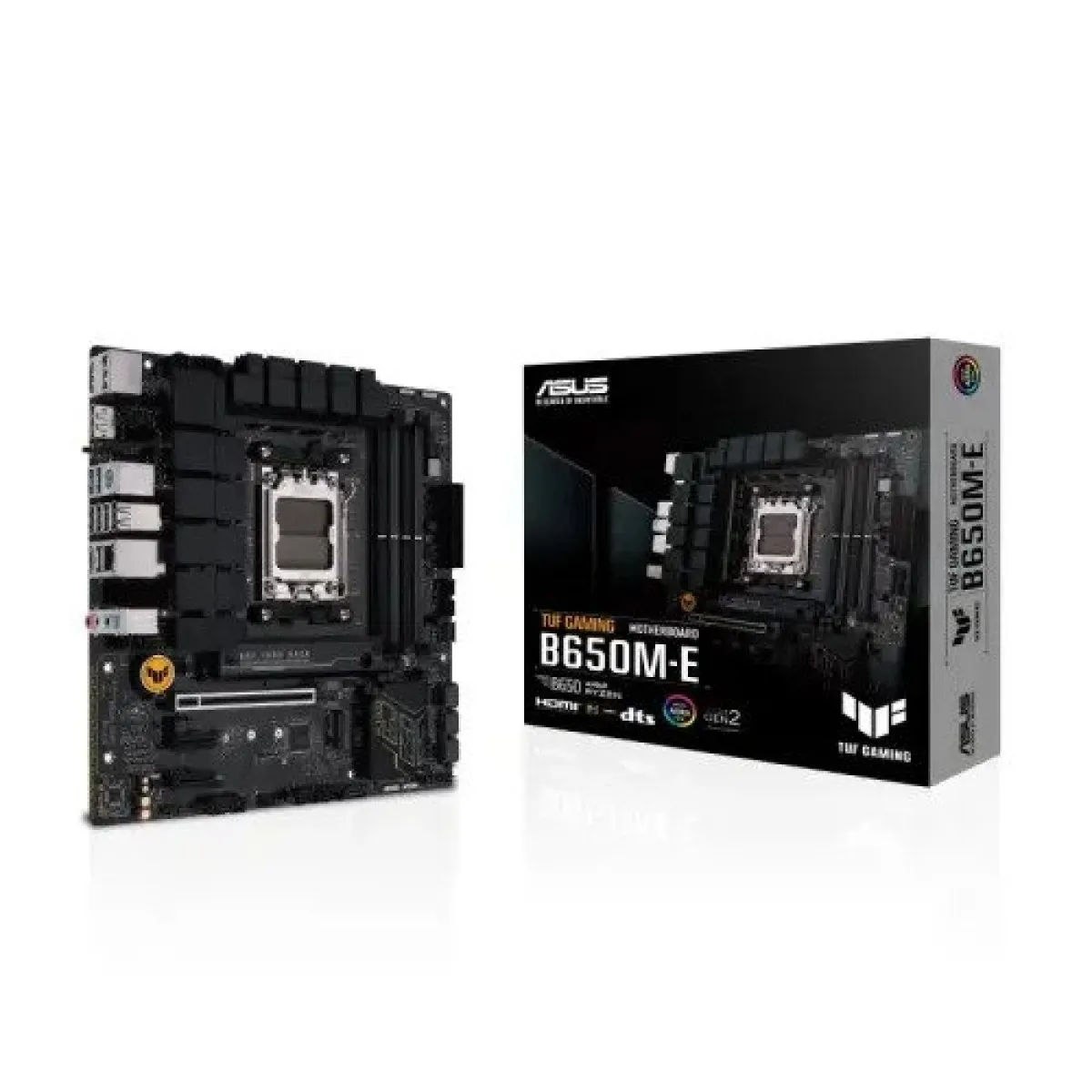

Asus TUF GAMING B650M-E AMD AM5 micro-ATX Motherboard
- Brand:Asus
- Product Code: TUF GAMING B650M-E
- Availability:In Stock
- Updated:
Specification
| BASIC INFORMATION | |
| Raid controller | AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. |
|---|---|
| SpecialFeatures | ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - ProCool - Pre-mounted I/O shield - SafeSlot Core+ - SafeDIMM Aura Sync - Aura RGB header - Addressable Gen 2 headers |
| Audio | 3 x Audio jacks |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Graphics Specifications | |
| Graphics | 2 x DisplayPort 1 x HDMITM port |
| Memory Specifications | |
| Maximum Memory | 192GB |
| Slots | 4 DIMMs |
| Supported Memory | DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ / 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports AMD EXTended Profiles for Overclocking (EXPO) OptiMem II |
| Type | DDR5 |
| PORTS, CONNECTORS & SLOTS | |
| HDMI | 1x HDMI |
| Supported Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD B650 Chipset 4 x SATA 6Gb/s ports |
| USB (s) | Rear USB (Total 8 ports) 2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A + 1 x USB Type-C) 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| WARRANTY | |
| Manufacturing Warranty | Manufacturing Warranty 3 Years |
Description
Asus TUF GAMING B650M-E AMD AM5 micro-ATX Motherboard Overview
The Asus TUF GAMING B650M-E is a top-tier micro-ATX motherboard designed for gamers and PC enthusiasts who demand performance, durability, and versatility in their builds. Featuring the latest AMD AM5 socket, this motherboard is compatible with the latest Ryzen 7000 series processors, ensuring superior processing power and efficiency. The robust build quality is complemented by military-grade components, ensuring longevity and reliability even under intense gaming sessions.
Benefits of the Asus TUF GAMING B650M-E
This motherboard doesn’t just support high-performance gaming; it enhances your gaming experience with its advanced features. The integrated customizable RGB lighting allows users to personalize their setups, while the comprehensive cooling solutions ensure that your system stays cool, even during the most demanding tasks. With a rich array of connectivity options, including USB 3.2 Gen 2 ports and PCIe 4.0 slots, this motherboard is built to handle the latest peripherals and expansions, making it an ideal choice for future-proofing your gaming rig.
Use Cases
The Asus TUF GAMING B650M-E is perfect for a wide range of use cases, from hardcore gaming to content creation and everything in between. The motherboard's solid performance makes it suitable for multitasking and running demanding applications, making it a great choice for streamers, video editors, and gamers alike. Whether you're building a new gaming machine or upgrading your existing setup, this motherboard provides the foundation for a powerful system.
Why You Should Buy This Product
