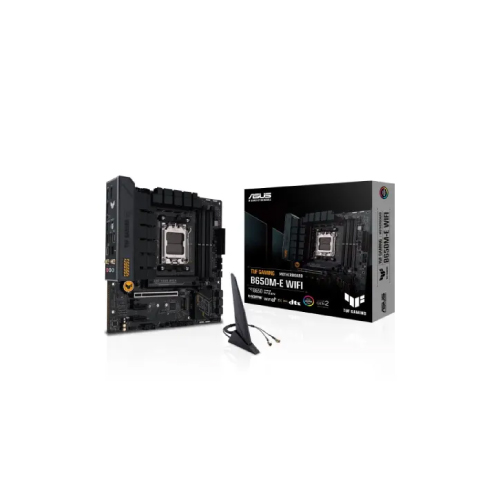

Asus TUF GAMING B650M-E WIFI AMD AM5 micro-ATX Motherboard
- Brand: Asus
- Product Code: TUF GAMING B650M-E WIFI
- Availability: Call for Price
Specification
| BASIC INFORMATION | |
| Form Factor | micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) |
| Raid controller | AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. |
| Supported CPU | AMD Socket AM5 for AMD Ryzen 8000 & 7000 Series Desktop Processors |
| Chipset | AMD B650 |
| Slots | 4 DIMMs |
| Audio | 3 x Audio jacks |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Connectivity | |
| HDMI | 1x HDMI |
| Expansion Slots | |
| PCI | AMD Ryzen 7000 Series Desktop Processors 1 x PCIe 4.0 x16 slot AMD B650 Chipset 2 x PCIe 4.0 x1 slots |
| Graphics Specifications | |
| Graphics | 2 x DisplayPort 1 x HDMITM port |
| Memory Specifications | |
| Maximum Memory | 192GB |
| Supported Memory | DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ / 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports AMD EXTended Profiles for Overclocking (EXPO) OptiMem II |
| Type | DDR5 |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 2x DisplayPort |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C® ) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function |
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet TUF LANGuard |
| Supported Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD B650 Chipset 4 x SATA 6Gb/s ports |
| USB (s) | Rear USB (Total 8 ports) 2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A + 1 x USB Type-C) 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Wireless Communication module | Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2 |
| Special | |
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving - Two-Way AI Noise Cancelation AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner TUF GAMING CPU-Z DTS Audio Processing MyASUS Norton 360 for Gamers(60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| Special Feature | ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - ProCool - Pre-mounted I/O shield - SafeSlot Core+ - SafeDIMM Aura Sync - Aura RGB header - Addressable Gen 2 headers |
| WARRANTY | |
| Manufacturing Warranty | 3 Years |
Description
Asus TUF GAMING B650M-E WIFI AMD AM5 Micro-ATX Motherboard
The Asus TUF GAMING B650M-E WIFI is a powerful and robust micro-ATX motherboard designed specifically for gamers and PC enthusiasts who demand high performance, stability, and reliability. Built on the AMD AM5 platform, this motherboard is ideal for those looking to harness the full potential of the latest AMD Ryzen processors. With a focus on durability and performance, the TUF GAMING series is known for its military-grade components, making it a perfect fit for long gaming sessions and intensive tasks.
This motherboard features an advanced power solution with a 12+2 DrMOS power stage, ensuring that your CPU receives a steady and reliable power supply. The comprehensive cooling solutions including multiple fan headers and an integrated heatsink system help maintain optimal temperatures even during the most demanding gaming sessions. Enhanced thermal management is essential for maintaining system stability and performance, allowing users to push their hardware to the limits without concerns.
One of the standout benefits of the TUF GAMING B650M-E WIFI is its built-in WiFi 6 support, providing ultra-fast wireless connectivity for seamless online gaming experiences. Additionally, it includes Bluetooth 5.2, allowing for easy connectivity with other devices such as headsets and controllers. This feature is particularly beneficial for gamers in Bangladesh, where wired connections may not always be feasible.
Furthermore, the motherboard supports DDR5 memory with speeds of up to 6400MHz, offering improved bandwidth and performance compared to previous generations. Whether you are gaming, streaming, or multitasking, this motherboard handles it all with ease. It also features multiple M.2 slots for NVMe SSDs, providing lightning-fast storage options that significantly reduce load times and enhance overall system responsiveness.
The Asus TUF GAMING B650M-E WIFI is designed for gamers who prioritize customizability and expandability. With ample PCIe slots, users can add high-end graphics cards and other expansion cards to enhance their system's capabilities. The intuitive UEFI BIOS interface allows for easy overclocking and system tuning, making it accessible even for those new to PC building.
Purchasing the Asus TUF GAMING B650M-E WIFI motherboard means investing in a product that is built to last, supported by a 3-year warranty. This assurance reflects Asus's commitment to quality and customer satisfaction. For gamers and PC builders in Jashore, Bangladesh, this motherboard not only meets but exceeds expectations, providing a solid foundation for creating a high-performance gaming rig.
