Buy ASUS EX-B660M-V5 D4 12th Gen M-ATX Motherboard in Jashore

  • Brand: Asus
  • Product Code: EX-B660M-V5 D4
  • Availability: Out Of Stock
৳9,950
Out Of Stock

One email when this product is in stock again. Nothing else.

0 reviews Write a review

Share on FacebookSend in MessengerShare on TelegramShare on X (Twitter)Share by email
Unisoft ERP Accounting Software – Free Smartphone Offer Unisoft ERP Accounting Software – Free Smartphone Offer

Specification

BASIC INFORMATION
Supported CPUIntel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Slots2 x DIMM
Audio3 x Audio jacks
Expansion Slots
M.2 Socket2 x M.2 slots
PCIIntel 12th Gen Processors 1 x PCIe 4.0/3.0 x16 slot Intel B660 Chipset 2 x PCIe 3.0 x1 slots
Graphics Specifications
Graphics1 x D-Sub port 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1)
Memory Specifications
Maximum Memory64GB
Supported Memory5333(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP)
TypeDDR4
PORTS, CONNECTORS & SLOTS
D-Sub (s)1 x D-Sub port
Display Port (s)1 x DisplayPort
HDMI1 x HDMI port
Internal I/O PortsFan and cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x Speaker header 1 x 10-1 pin System Panel header
LAN Port (s)1 x Realtek 1Gb Ethernet
Supported StorageTotal supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Intel 12th Gen processors support PCIe 4.0 x4 mode. Intel B660 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. ** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.
USB (s)Rear USB (Total 6 ports) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 6 ports) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Special
Special FeatureASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS EZ DIY - ProCool Non-stop Action - Lightning Boot Non-stop Challenger - ASUS iCafe labs certified Non-stop Durability - Luminous anti-moisture coating - USBGuard
WARRANTY
Manufacturing Warranty3 years

Description

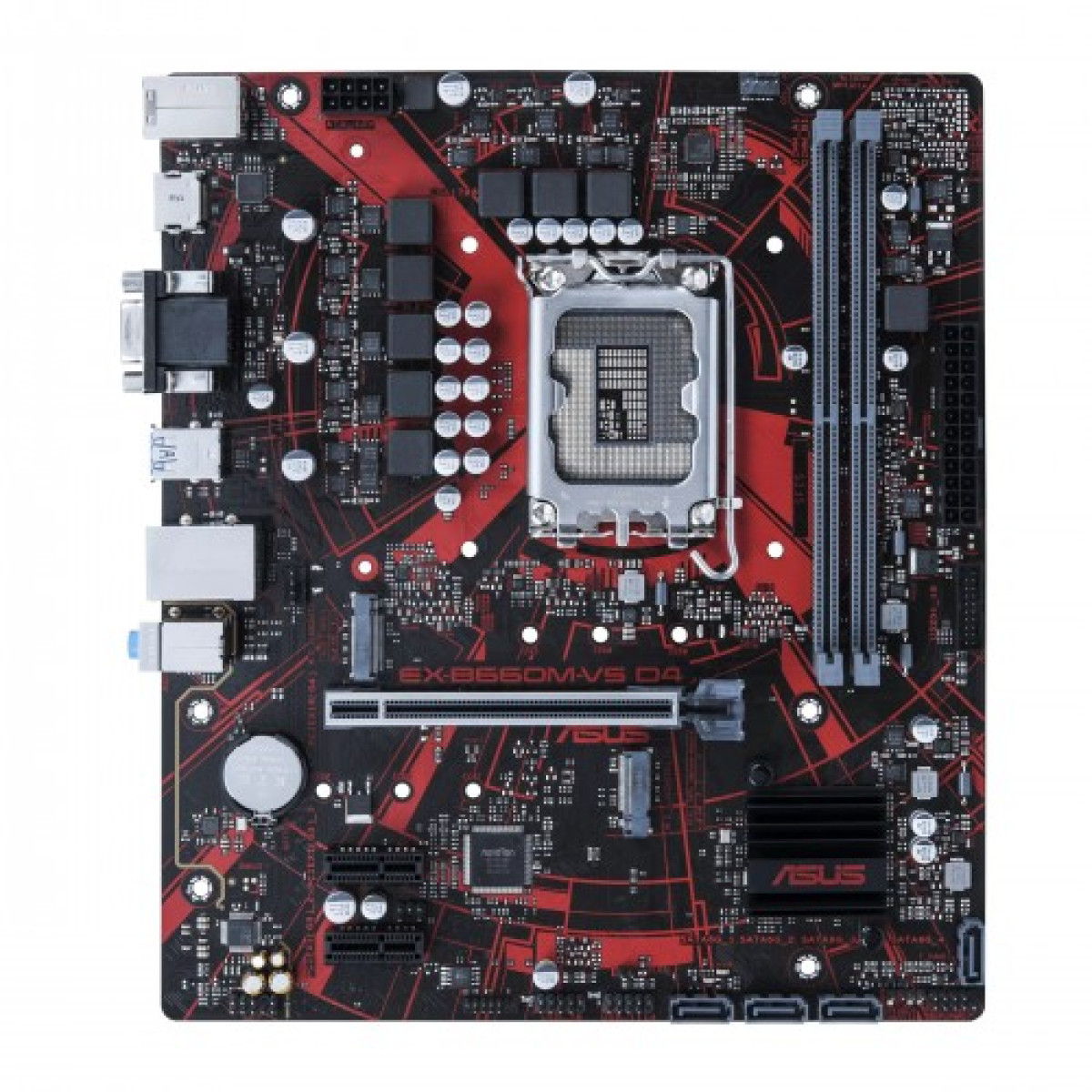

ASUS EX-B660M-V5 D4 12th Gen M-ATX Motherboard

Experience the next level of computing performance with the ASUS EX-B660M-V5 D4 motherboard, designed specifically for 12th Gen Intel processors. This M-ATX motherboard combines advanced technology with user-friendly features, making it perfect for both gamers and professionals in Bangladesh. Enhanced connectivity is at your fingertips with support for the latest PCIe 4.0 technology, providing faster data transfer rates for your graphics cards and NVMe SSDs. Optimize your system's efficiency with comprehensive cooling solutions that keep your components at optimal temperatures during intense tasks.

With dual-channel DDR4 memory support, the EX-B660M-V5 D4 allows for impressive multitasking capabilities, ensuring your applications run smoothly without lag. Additionally, the robust build quality of this motherboard guarantees durability and longevity, catering to the needs of tech enthusiasts and everyday users alike. The intuitive BIOS interface simplifies overclocking and system tuning, empowering you to unlock the full potential of your hardware.
