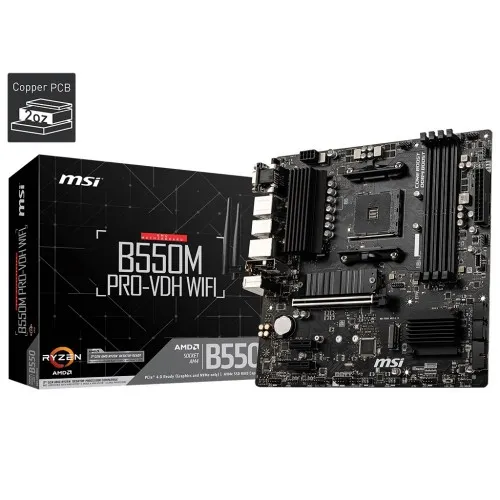

MSI B550M Pro VDH Wi-Fi AM4 motherboard showcasing its features and design, perfect for gaming and productivity.

Buy MSI B550M Pro VDH Wi-Fi AM4 Motherboard in Jashore

Brand: MSI
Product Code: M21092706
Availability: In Stock

৳16,400

Qty

Specification

BASIC INFORMATION
Form Factor	Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Supported CPU	Supports AM4 socket 3rd Gen AMD Ryzen processors, and future AMD Ryzen processors with BIOS update.
Chipset	AMD B550
Expansion Slots
M.2 Socket	2x M.2 slots (Key M) M2_1 slot (from AMD Processor) Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices
PCI	1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 2x PCIe 3.0 x1 slots
Graphics Specifications
Max Shared Memory	16GB
Graphics	1x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz
Memory Specifications
Maximum Size	128GB
Slots	4x DDR4 memory slots
Supported Memory	Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE 1DPC 1R max speed 4400 MHZ 1DPC 2R max speed 3733 MHZ 2DPC 1R max speed 3866 MHZ 2DPC 2R max speed 3466 MHZ Supports non-ECC UDIMM memory Supports ECC UDIMM memory Supports un-buffered memory
Type	Dual-channel memory architecture
PORTS, CONNECTORS & SLOTS
Audio Jack Combo	Realtek ALC892 Codec 7.1-Channel High Definition Audio
Display Port (s)	1x DisplayPort supports a maximum resolution of 4096x2160 @60Hz
HDMI	1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz
LAN Port (s)	1x Realtek 8111HN Gigabit LAN controller
Supported Storage	AMD B550 Chipset 4x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 slot (from AMD Processor) Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices
USB (s)	AMD B550 Chipset 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
Internal I/O Connectors	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 3x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x Chassis Intrusion connector 2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 1xTPM module connector 1x Clear CMOS jumper
Special
Special Feature	WIRELESS LAN & BLUETOOTH: Intel Dual Band Wireless-AC 3168- Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 433 Mbps speed. Supports Dual Mode Bluetooth 2.1,2.1+EDR,3.0,4.0,BLE,4.2
WARRANTY
Manufacturing Warranty	03 Years Warranty

Description

MSI B550M Pro VDH Wi-Fi AM4 AMD Micro-ATX Motherboard

The MSI B550M Pro VDH Wi-Fi motherboard is a powerhouse designed for gamers and professionals alike, offering robust features that enhance performance and connectivity. This Micro-ATX board is equipped with an AM4 socket, supporting the latest AMD Ryzen processors, allowing for superior multitasking and processing capabilities. Wi-Fi 5 technology ensures seamless online experiences, making it perfect for competitive gaming or video streaming.

With its DDR4 memory support up to 64GB, this motherboard ensures quick data access and efficient operations, while PCIe 4.0 support allows for lightning-fast data transfers and advanced graphics capabilities. The user-friendly BIOS interface simplifies system tuning, making it accessible for both novices and experts. Multiple USB ports, including USB 3.2 Gen 2, provide fast device connectivity, enhancing user convenience.

Additionally, the B550M Pro VDH features MSI's Audio Boost technology, delivering an immersive audio experience for gamers and content creators. With a compact Micro-ATX form factor, it fits easily into smaller cases, making it ideal for those with limited space. Invest in the MSI B550M Pro VDH Wi-Fi motherboard for a future-proof, high-performance solution that meets all your computing needs.
