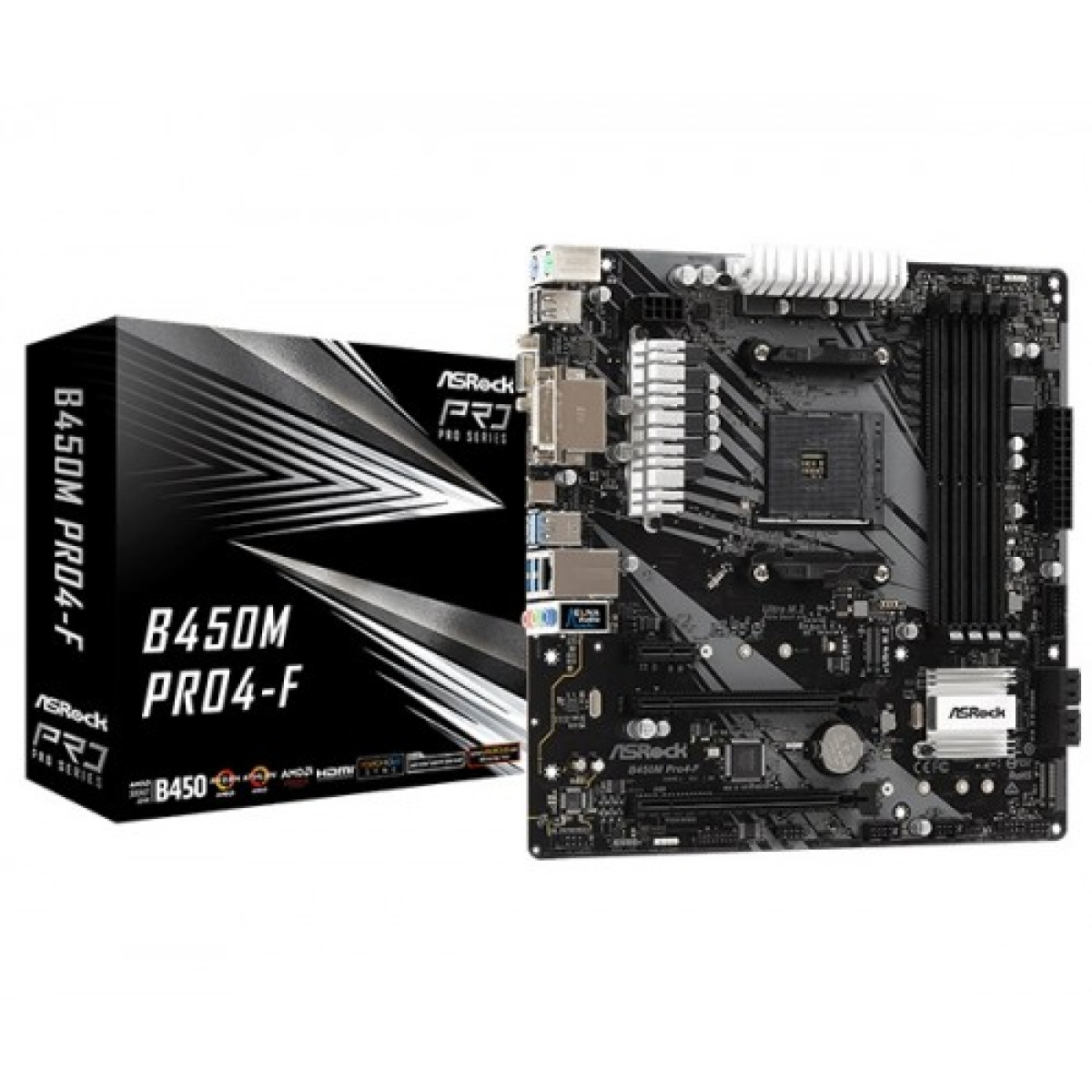

Asrock B450M Pro4 F AMD Motherboard

Specification

BASIC INFORMATION
Form Factor	- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm - Solid Capacitor design
Chipset	AMD Promontory B450
Memory	64GB
Slots	4 x DDR4 DIMM Slots
Audio	- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec) - Premium Blu-ray Audio support - Supports Surge Protection - ELNA Audio Caps
BIOS	- 128Mb AMI UEFI Legal BIOS with multilingual GUI support - Supports "Plug and Play" - ACPI 5.1 compliance wake up events - Supports jumperfree - SMBIOS 2.3 support - DRAM Voltage multi-adjustment
Expansion Slots
M.2 Socket	- 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon 2xxGE series APU) - 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s
PCI	AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge) - 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode) - 1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode) AMD Ryzen series CPUs (Raven Ridge) - 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode) - 1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode) AMD Athlon series CPUs - 1 x PCI Express 3.0 x16 Slot (PCIE2: x4 mode) - 1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode) - 1 x PCI Express 2.0 x1 Slot - Supports AMD Quad CrossFireX and CrossFireX
Graphics Specifications
Max Shared Memory	16 GB
Graphics	- Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU - DirectX 12, Pixel Shader 5.0 - Shared memory default 2GB. Max Shared memory supports up to 16GB. - Three graphics output options: D-Sub, DVI-D and HDMI - Supports Triple Monitor - Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required) - Supports HDCP 1.4 with DVI-D and HDMI 1.4 Ports - Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI 1.4 Ports
Memory Specifications
Type	Dual Channel DDR4 Memory Technology
PORTS, CONNECTORS & SLOTS
D-Sub (s)	1 x D-Sub Port
DVI-D (s)	1 x DVI-D Port
HDMI	1 x HDMI Port
LAN Port (s)	- PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111GR - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports LAN Cable Detection - Supports Energy Efficient Ethernet 802.3az - Supports PXE
Supported Storage	- 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon 2xxGE series APU) - 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module
USB (s)	- 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x USB 3.1 Gen1 Type-C Port (Supports ESD Protection) - 4 x USB 3.1 Gen1 Ports (Supports ESD Protection)
Internal I/O Connectors	- 1 x PS/2 Mouse Port - 1 x PS/2 Keyboard Port - 1 x D-Sub Port - 1 x DVI-D Port - 1 x HDMI Port - 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x USB 3.1 Gen1 Type-C Port (Supports ESD Protection) - 4 x USB 3.1 Gen1 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone - 1 x COM Port Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 1 x Addressable LED Header - 1 x AMD Fan LED Header* - 1 x CPU Fan Connector (4-pin)** - 1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control)*** - 1 x Chassis Fan Connector (3-pin) - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x AMD LED Fan USB Header - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
Special
Bundled Software	Software - ASRock A-Tuning - ASRock RGB LED - ASRock XFast LAN UEFI - ASRock Full HD UEFI - ASRock Instant Flash - ASRock Easy RAID Installer
Special Feature	ASRock Super Alloy - Premium 42A Power Choke - Sapphire Black PCB - High Density Glass Fabric PCB - 2oz Copper PCB ASRock Ultra M.2 (PCIe Gen3 x4) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop
WARRANTY
Manufacturing Warranty	03 years

Description

Asrock B450M Pro4 F AMD Motherboard: A Perfect Choice for Enthusiasts

The Asrock B450M Pro4 F is a high-performance motherboard designed to cater to the needs of gamers and PC builders alike. With its AMD AM4 socket, this motherboard supports the latest Ryzen processors, ensuring that you get the best performance for your computing needs. The micro ATX form factor makes it ideal for compact builds without compromising on features.

One of the standout features of the B450M Pro4 F is its 4 DIMM slots supporting up to 64GB of DDR4 RAM, allowing for fast multitasking and smooth gaming experiences. Additionally, it includes dual M.2 slots for high-speed SSDs, enhancing your system's overall performance. The motherboard is also equipped with ASRock's Super Alloy technology, ensuring durability and long-lasting performance.

For connectivity, the B450M Pro4 F features multiple USB 3.1 ports, HDMI, and DisplayPort outputs, enhancing your connectivity options. The high-quality capacitors and premium components used in this motherboard guarantee a reliable and stable performance, making it a great investment for both casual users and hardcore gamers.

Asrock B450M Pro4 F AMD Motherboard - Affordable Performance
