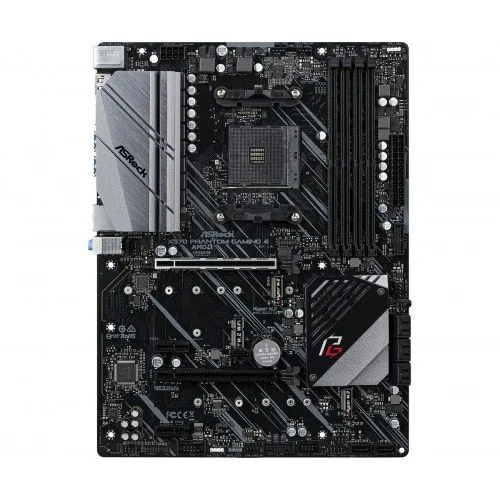

Asrock X570 Phantom Gaming 4 AMD Motherboard

Asrock X570 Phantom Gaming 4 AMD Motherboard
Asrock X570 Phantom Gaming 4 AMD Motherboard
01715143685
Asrock X570 Phantom Gaming 4 AMD Motherboard
Asrock X570 Phantom Gaming 4 AMD Motherboard
Asrock X570 Phantom Gaming 4 AMD Motherboard
Call # 01715143685
7 Days Replacement Warranty, Delivery After 3 to 7 Working Day. 60-Day Buyer Protection Money back guarantee.
  • Availability: 01715143685
  • Brand ASRock
  • Model Asrock X570 Phantom Gaming 4 AMD Motherboard
  • Weight: 0.00kg
  • SKU: 10
  • MPN: 16200
Products Sold: 0
Product Views: 4
৳16,200.00
Ex Tax: ৳16,200.00

Basic Information

Supported CPU - AMD AM4 socket

- Digi Power design

- 10 Power Phase design

Chipset AMD X570

BIOS - 256Mb AMI UEFI Legal BIOS with GUI support

- Supports "Plug and Play"

- ACPI 5.1 compliance wake up events

- Supports jumperfree

- SMBIOS 2.3 support

- CPU, CPU VDDCR_SOC, DRAM, VPPM, PREM VDD_CLDO, PERM VDDCR_SOC, +1.8V, VDDP, VDDG, CPU Load-Line Calibration, CPU VDDCR_SOC Load-Line Calibration Voltage Multi-adjustment

Form Factor - ATX Form Factor: 12.0-in x 9.0-in, 30.5 cm x 22.9 cm

Audio - 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)

- Premium Blu-ray Audio support

- Supports Surge Protection

- ELNA Audio Caps

- PCB Isolate Shielding

- Individual PCB Layers for R/L Audio Channel

Expansion Slots

PCI AMD Ryzen series CPUs (Matisse)

- 2 x PCI Express 4.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3))

AMD Ryzen series CPUs (Pinnacle Ridge)

- 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3))

AMD Ryzen series CPUs (Picasso)

- 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x8 (PCIE1); dual at x8 (PCIE1) / x4 (PCIE3))


- 2 x PCI Express 4.0 x1 Slots

- Supports AMD Quad CrossFireX and CrossFireX

- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module

M.2 Socket - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module

Memory

Type Dual Channel DDR4 Memory Technology

Slots 4 x DDR4 DIMM Slots

Supported Memory - AMD Ryzen series CPUs (Matisse) support DDR4 4066+(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200/2933/2667/2400/2133 ECC & non-ECC, un-buffered memory

- AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933/2667/2400/2133 ECC & non-ECC, un-buffered memory

- AMD Ryzen series CPUs (Picasso) support DDR4 3466+(OC) / 3200(OC) / 2933/2667/2400/2133 non-ECC, un-buffered memory

Maximum Mamory 128GB

Graphics

Graphics - Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*

- DirectX 12, Pixel Shader 5.0

- Shared memory default 2GB. Max Shared memory supports up to 16GB.**

- Dual graphics output: support HDMI and DisplayPort 1.2 ports by independent display controllers

- Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz

- Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz

- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Ports (Compliant HDMI monitor is required)

- Supports HDR (High Dynamic Range) with HDMI 2.0

- Supports HDCP 2.2 with HDMI 2.0 and DisplayPort 1.2 Ports

- Supports 4K Ultra HD (UHD) playback with HDMI 2.0 and DisplayPort 1.2 Ports

- Supports Microsoft® PlayReady

Max Shared Memory 16GB

Connector & Ports

HDMI 1 x HDMI Port

Display Port (s) 1 x DisplayPort 1.2

USB (s) - 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (Supports ESD Protection)

- 6 x USB 3.2 Gen1 Ports (Supports ESD Protection)

LAN Port (s) - Gigabit LAN 10/100/1000 Mb/s

- Giga PHY Intel® I211AT

- Supports Wake-On-LAN

- Supports Lightning/ESD Protection

- Supports Energy Efficient Ethernet 802.3az

- Supports PXE

Supported Storage AMD Ryzen series CPUs (Matisse)

- 2 x PCI Express 4.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3))

AMD Ryzen series CPUs (Pinnacle Ridge)

- 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3))

AMD Ryzen series CPUs (Picasso)

- 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x8 (PCIE1); dual at x8 (PCIE1) / x4 (PCIE3))


- 2 x PCI Express 4.0 x1 Slots

- Supports AMD Quad CrossFireX and CrossFireX

- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module

- 15μ Gold Contact in VGA PCIe Slot (PCIE1)

Audio - 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)

- Premium Blu-ray Audio support

- Supports Surge Protection

- ELNA Audio Caps

- PCB Isolate Shielding

- Individual PCB Layers for R/L Audio Channel

Internal I/O Ports - 3 x Antenna Ports (on I/O Panel Shield)

- 1 x PS/2 Mouse/Keyboard Port

- 1 x HDMI Port

- 1 x DisplayPort 1.2

- 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (Supports ESD Protection)

- 6 x USB 3.2 Gen1 Ports (Supports ESD Protection)

- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

- HD Audio Jacks: Line in / Front Speaker / Microphone

Warranty Information

Manufacturing Warranty 03 years
