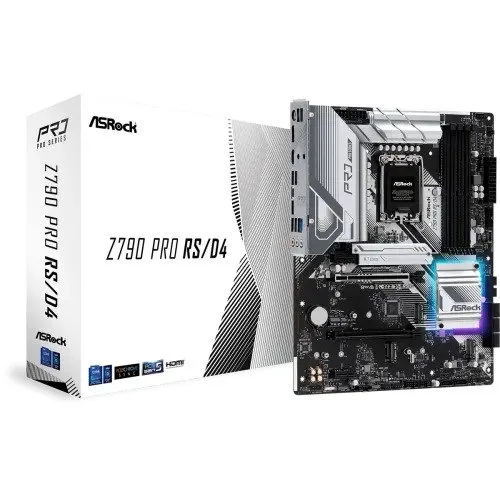

High-quality image of ASRock Z790 Pro RS/D4 ATX Motherboard showcasing ports and design for better visibility and understanding

ASRock Z790 Pro RS/D4 ATX Motherboard for Gamers in Bangladesh

Brand: ASRock
Product Code: Z790 Pro RS/D4
Availability: Call for Price

Call for Price

Specification

BASIC INFORMATION
Form Factor	- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - 2oz Copper PCB
Raid controller	- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
SpecialFeatures	Superb Productivity - PCIe Gen5 (Graphics) Rock-Solid Durability - 14+1+1 Power Phase, 50A Dr.MOS for VCore+GT with Enlarged Heatsink Armor - Flexible Integrated I/O Shield Ultrafast Connectivity - 2.5G LAN EZ Update - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker
Supported CPU	- Supports 14th Gen, 13th Gen & 12th Gen Intel Core Processors (LGA1700) - Supports Intel Hybrid Technology - Supports Intel Turbo Boost Max 3.0 Technology - Supports Intel Thermal Velocity Boost (TVB) - Supports Intel Adaptive Boost Technology (ABT)
Chipset	Intel Z790
Audio	HD Audio Jacks: Line in / Front Speaker / Microphone
BIOS	128Mb AMI UEFI Legal BIOS with GUI support
Expansion Slots
PCI	CPU: - 1 x PCIe 5.0 x16 Slot (PCIE2), supports x16 mode Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode - 2 x PCIe 3.0 x1 Slots (PCIE1 and PCIE4) - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT) - Supports AMD CrossFire
Graphics Specifications
Graphics	- Intel Xe Graphics Architecture (Gen 12) - 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
Memory Specifications
Slots	4 x DDR4 DIMM Slots
Type	DDR4
PORTS, CONNECTORS & SLOTS
Display Port (s)	1 x DisplayPort 1.4
HDMI	1 x HDMI Port
Internal I/O Ports	- 1 x eDP Signal Connector - 1 x Power LED and Speaker Header - 1 x RGB LED Header - 3 x Addressable LED Headers - 1 x CPU Fan Connector (4-pin) - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
LAN Port (s)	- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control
Supported Storage	CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode - 8 x SATA3 6.0 Gb/s Connectors
TPM (Trusted Platform Module )	1 x SPI TPM Header
USB (s)	- 1 x USB 3.2 Gen2x2 Type-C (Front) - 1 x USB 3.2 Gen2 Type-C (Rear) - 1 x USB 3.2 Gen2 Type-A (Rear) - 6 x USB 3.2 Gen1 (2 Rear, 4 Front) - 8 x USB 2.0 (4 Rear, 4 Front)
WARRANTY
Manufacturing Warranty	3 years

Description

ASRock Z790 Pro RS/D4 ATX Motherboard Overview

The ASRock Z790 Pro RS/D4 ATX Motherboard stands at the forefront of modern computing technology, designed to meet the demands of both gamers and content creators alike. Built to support the latest Intel 13th and 12th generation processors, this motherboard delivers exceptional performance and reliability. With its ATX form factor, it provides ample space for expansion and facilitates superior airflow, ensuring that your components stay cool even under heavy loads.

One of the key benefits of the Z790 Pro RS/D4 is its robust power delivery system. Featuring a premium 10+1+1 power phase design, it ensures stable and efficient power distribution to your CPU, which is critical during intensive tasks such as gaming or video rendering. This motherboard also supports DDR4 memory up to 4800MHz, allowing for high-speed performance and multitasking capabilities that are essential in today’s computing environment.

The user experience with the ASRock Z790 Pro RS/D4 is enhanced by its user-friendly BIOS interface, which makes overclocking and tuning settings accessible even to novices. The motherboard comes equipped with multiple M.2 slots for NVMe SSDs, ensuring rapid data transfer speeds and the ability to handle large files with ease. Additionally, the integrated Realtek ALC897 audio codec provides high-definition audio, making it an excellent choice for entertainment as well as productivity.

For connectivity, the Z790 Pro RS/D4 includes USB 3.2 Gen2 Type-C ports, ensuring that you can connect to the latest peripherals with ease. The motherboard supports both PCIe 5.0 and PCIe 4.0 slots, offering future-proofing for upcoming graphics cards and expansion cards, which is a significant advantage in the rapidly evolving tech landscape.

In summary, the ASRock Z790 Pro RS/D4 ATX Motherboard is a wise investment for anyone looking to build or upgrade their PC. Its combination of power, performance, and cutting-edge features makes it a standout choice in the market. Whether you are gaming, streaming, or working on demanding applications, this motherboard provides the necessary support to elevate your computing experience.
