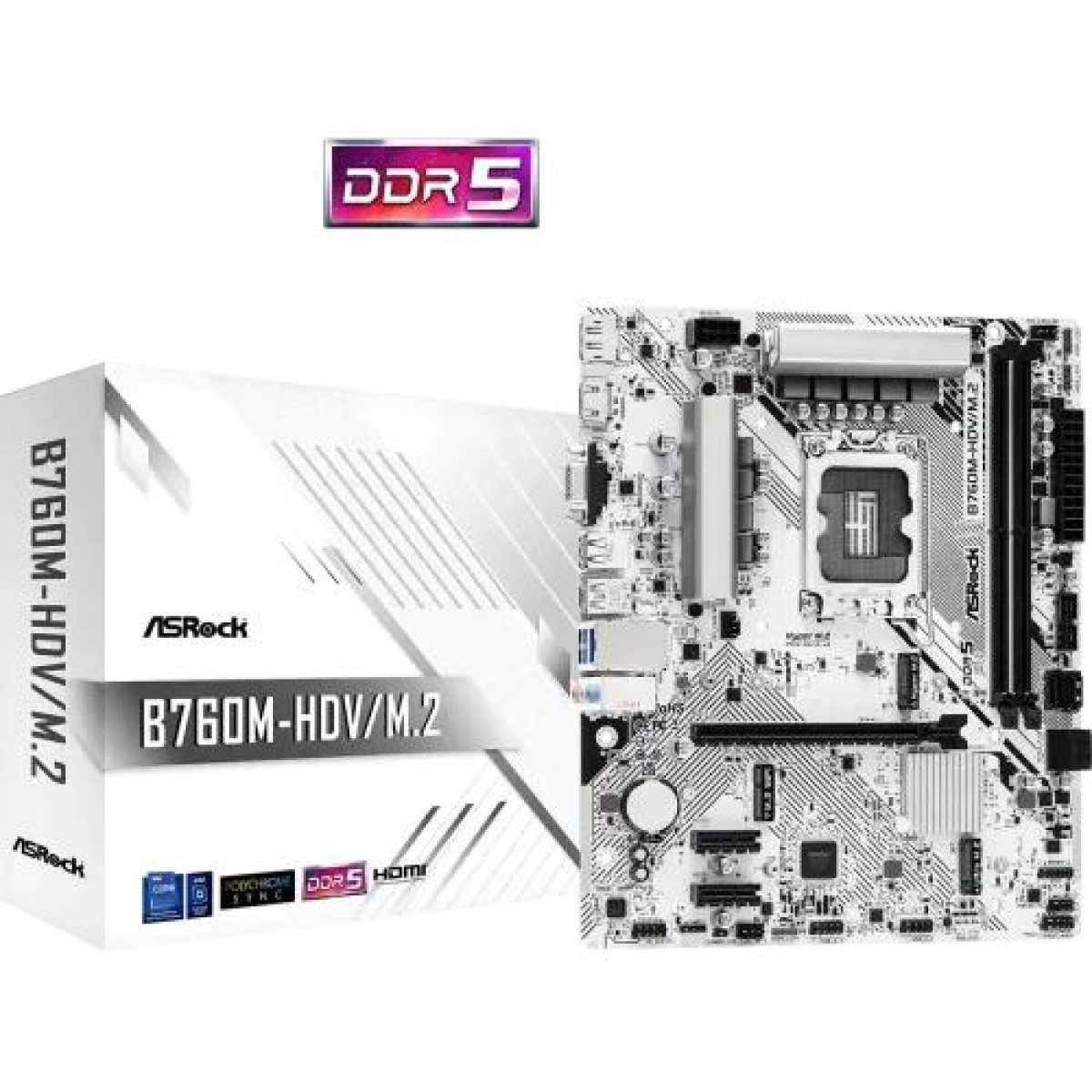

ASRock B760M-HDV/M.2 DDR5 Micro ATX Motherboard
- Brand:ASRock
- Product Code: ASRock B760M-HDV/M.2 DDR5 Micro ATX Motherboard
- Availability:In Stock
- Updated:
Specification
| BASIC INFORMATION | |
| Form Factor | - Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm |
|---|---|
| Supported CPU | - Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700) - Supports Intel Hybrid Technology - Supports Intel Turbo Boost Max 3.0 Technology - Supports Intel Thermal Velocity Boost (TVB) - Supports Intel Adaptive Boost Technology (ABT) |
| Chipset | Intel B760 |
| Slots | 2 |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| BIOS | - 128Mb AMI UEFI Legal BIOS with GUI support |
| Expansion Slots | |
| PCI | CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
| Graphics Specifications | |
| Graphics | - Intel Xe Graphics Architecture (Gen 12) - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz - 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz |
| Memory Specifications | |
| Maximum Memory | 128GB |
| Supported Memory | - Dual Channel DDR5 Memory Technology - 2 x DDR5 DIMM Slots - Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)* - Supports Intel Extreme Memory Profile (XMP) 3.0 |
| Type | DDR5 |
| PORTS, CONNECTORS & SLOTS | |
| D-Sub (s) | 1x D-Sub |
| Display Port (s) | 1x DisplayPort |
| HDMI | 1x HDMI |
| Internal I/O Ports | Rear Panel I/O - 2 x Antenna Mounting Points - 1 x D-Sub Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen1 Type-C Port - 3 x USB 3.2 Gen1 Type-A Ports - 2 x USB 2.0 Ports - 1 x RJ-45 LAN Port - HD Audio Jacks: Line in / Front Speaker / Microphone Connector - 1 x Chassis Intrusion and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers** - 1 x CPU Fan Connector (4-pin)*** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** - 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) |
| LAN Port (s) | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control |
| Supported Storage | Chipset: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen3x4 (32 Gb/s) modes** - 4 x SATA3 6.0 Gb/s Connectors * Supports Intel Volume Management Device (VMD) Supports NVMe SSD as boot disks |
| TPM (Trusted Platform Module ) | - 1 x SPI TPM Header |
| USB (s) | - 1 x USB 3.2 Gen1 Type-C (Rear) - 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front) - 6 x USB 2.0 (2 Rear, 4 Front) |
| Special | |
| Bundled Software | Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash - ASRock Easy RAID Installer |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
Description
The ASRock B760M-HDV/M.2 DDR5 Micro ATX Motherboard is a versatile and high-performance motherboard designed to deliver exceptional value and functionality for both gaming and productivity PC builds. Based on Intel’s B760 chipset and supporting the latest 12th and 13th generation Intel Core processors, this motherboard is perfect for users looking to build a powerful yet budget-friendly system. The motherboard’s support for DDR5 memory offers next-gen speeds and bandwidth, allowing your system to run faster and more efficiently, making it ideal for gaming, content creation, and other high-demand applications.
With a Micro ATX form factor, the B760M-HDV/M.2 strikes a perfect balance between expandability and compact size, offering room for upgrades while maintaining a space-efficient build. It features PCIe 4.0 for fast data transfer speeds, M.2 slots for ultra-fast storage solutions, and Intel 2.5Gb Ethernet for high-speed networking, making it a strong contender in the mid-range motherboard market. Whether you’re building your first PC or upgrading your current setup, the ASRock B760M-HDV/M.2 motherboard offers great features for users seeking high-performance at an affordable price.
People Also Ask (PAA) Section (300-400 words)
1. What makes the ASRock B760M-HDV/M.2 DDR5 motherboard ideal for gaming?
The ASRock B760M-HDV/M.2 DDR5 motherboard is ideal for gaming due to its support for DDR5 memory, which offers higher speeds and better performance than DDR4, ensuring smoother gameplay and faster load times. Additionally, it features PCIe 4.0 slots for fast data transfer, allowing users to install next-gen graphics cards without worrying about bottlenecks. The M.2 slots support ultra-fast storage solutions, ensuring that games and other applications load quickly. Combined with Intel 2.5Gb Ethernet, this motherboard offers a stable and fast network connection, reducing latency during online gaming.
2. Does the ASRock B760M-HDV/M.2 support DDR5 RAM?
Yes, the ASRock B760M-HDV/M.2 motherboard supports DDR5 RAM, which provides faster data transfer speeds and higher bandwidth compared to DDR4 memory. This allows the system to handle demanding applications like gaming, video editing, and 3D rendering with ease. DDR5 is the latest memory standard, offering future-proofing for users building a high-performance PC.
3. Can I use Intel's 12th and 13th generation processors with the ASRock B760M-HDV/M.2 motherboard?
Yes, the ASRock B760M-HDV/M.2 motherboard is compatible with both 12th and 13th generation Intel Core processors. This provides users with a wide range of CPU options, from budget-friendly models to high-performance chips, making it a flexible choice for building or upgrading a PC based on your performance needs.
4. Does the ASRock B760M-HDV/M.2 come with good connectivity options?
Yes, the ASRock B760M-HDV/M.2 motherboard offers excellent connectivity options. It comes with Intel 2.5Gb Ethernet for fast and stable networking, making it great for gaming and online streaming. Additionally, it features USB 3.2 Gen 2 ports for fast data transfer, multiple SATA III ports for storage expansion, and M.2 slots for high-speed SSDs. This range of connectivity ensures that users can easily connect and transfer data with peripherals and storage devices.
5. Is the ASRock B760M-HDV/M.2 motherboard suitable for a budget-friendly gaming PC build?
Yes, the ASRock B760M-HDV/M.2 motherboard is an excellent choice for a
The ASRock B760M-HDV/M.2 DDR5 Micro ATX Motherboard is a high-quality motherboard designed for gamers and PC enthusiasts. Featuring support for DDR5 memory, this motherboard offers enhanced performance and efficiency compared to DDR4 models.
With its Micro ATX form factor, the ASRock B760M-HDV/M.2 is ideal for compact PC builds while still offering plenty of
