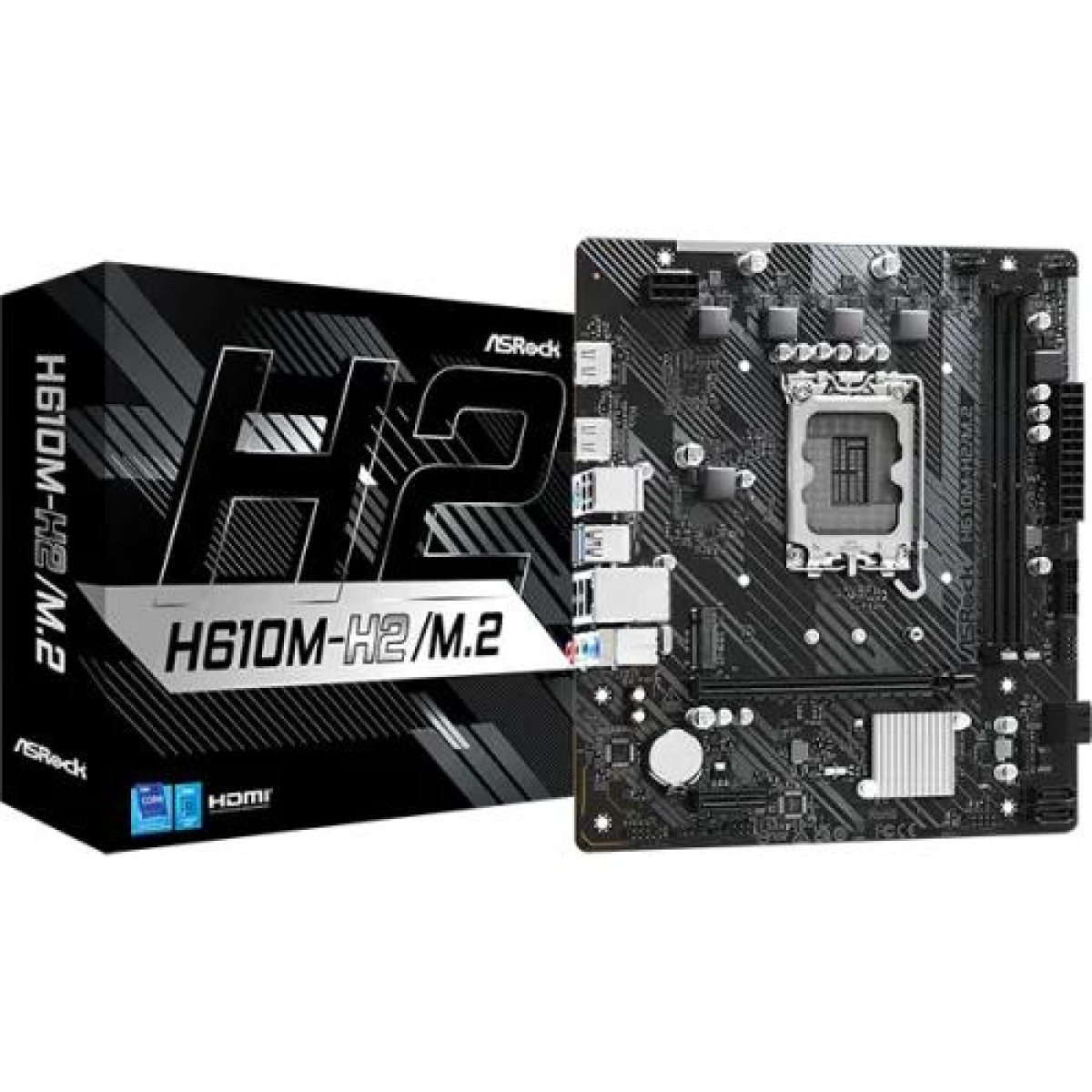

ASROCK H610M-H2/M.2 14th, 13th and 12th Gen mATX DDR4 Motherboard
- Brand:ASRock
- Product Code: ASROCK H610M-H2/M.2 14th, 13th and 12th Gen mATX DDR4 Motherboar
- Availability:In Stock
- Updated:
Specification
| BASIC INFORMATION | |
| Form Factor | - Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm |
|---|---|
| Supported CPU | - Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) - Supports Intel® Hybrid Technology - Supports Intel® Turbo Boost Max 3.0 Technology |
| Chipset | Intel H610 |
| Slots | 2 x DDR4 DIMM Slots |
| Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| BIOS | - 128Mb AMI UEFI Legal BIOS with GUI support |
| Expansion Slots | |
| M.2 Socket | - 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode* |
| PCI | - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x PCIe 3.0 x1 Slot (PCIE2)* |
| Graphics Specifications | |
| Graphics | - Intel® Xe Graphics Architecture (Gen 12) - 2 x HDMI 2.1 TMDS Compatible, support HDCP 2.3 and max. resolution up to 4K 60Hz * Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. |
| Memory Specifications | |
| Maximum Memory | 64GB |
| Supported Memory | - Supports DDR4 non-ECC, un-buffered memory up to 3200 - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Supports Intel® Extreme Memory Profile (XMP) 2.0 |
| Type | Dual Channel DDR4 Memory Technology |
| PORTS, CONNECTORS & SLOTS | |
| HDMI | 2 x HDMI Port |
| Internal I/O Ports | 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin)* - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) * CPU_FAN1 supports the fan power up to 1A (12W). ** CHA_FAN1/WP supports the fan power up to 2A (24W). CHA_FAN1/WP can auto-detect if 3-pin or 4-pin fan is in use. |
| LAN Port (s) | - Gigabit LAN 10/100/1000 Mb/s - Realtek 8111H |
| Supported Storage | - 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors * Supports NVMe SSD as boot disks |
| TPM (Trusted Platform Module ) | - 1 x SPI TPM Header |
| USB (s) | - 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front) - 6 x USB 2.0 (4 Rear, 2 Front) |
| Special | |
| Bundled Software | - ASRock Motherboard Utility (A-Tuning) UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
Description
The ASROCK H610M-H2/M.2 mATX DDR4 Motherboard is a powerful, compact platform ideal for budget-conscious users looking to harness the capabilities of Intel’s 12th, 13th, and 14th Gen processors. Designed with the Intel H610 chipset and supporting the LGA1700 socket, this motherboard offers excellent compatibility and future-proofing for both everyday tasks and entry-level gaming builds. With DDR4 memory support up to 3200MHz, PCIe 4.0 for high-speed graphics, and a dedicated M.2 slot for NVMe SSDs, it combines efficiency and performance in a compact micro-ATX form factor.
The H610M-H2/M.2 also comes with HDMI and D-Sub outputs for flexible display options and high-speed USB 3.2 Gen 1 ports for fast data transfers. ASROCK's High-Density Glass Fabric PCB and solid capacitor design enhance its durability and stability, ensuring a long-lasting system that performs well under everyday computing demands. Ideal for home and office users, as well as gamers looking to build a capable yet affordable system, this motherboard makes a perfect foundation for any entry-level build.
People Also Ask (PAA) Section (300-400 words)
1. What processors are compatible with the ASROCK H610M-H2/M.2 motherboard?
The ASROCK H610M-H2/M.2 motherboard is compatible with Intel 12th, 13th, and 14th Gen Core processors due to its LGA1700 socket. This includes popular CPUs like the Intel Core i5-12400, i7-13700, and i9-14900. The wide range of compatible processors allows users to customize their build based on performance needs and budget.
2. Does the ASROCK H610M-H2/M.2 support DDR5 memory?
No, the ASROCK H610M-H2/M.2 supports DDR4 memory only, with speeds up to 3200MHz. This makes it a cost-effective choice for users who want to take advantage of powerful processors without upgrading to DDR5, which is generally more expensive.
3. What are the storage options on the ASROCK H610M-H2/M.2?
This motherboard features an M.2 slot compatible with PCIe Gen 3 NVMe SSDs for high-speed storage and faster system boot times. It also includes four SATA III ports for additional HDDs or SSDs, making it a versatile option for users with larger storage needs or those planning to expand storage in the future.
4. Is the ASROCK H610M-H2/M.2 good for gaming?
The ASROCK H610M-H2/M.2 is suitable for entry-level to mid-range gaming setups. With PCIe 4.0 x16 support for a dedicated GPU, it provides sufficient bandwidth for modern graphics cards. When paired with a compatible Intel CPU and a dedicated graphics card, it can handle most games at medium to high settings smoothly.
5. Does this motherboard support overclocking?
The ASROCK H610M-H2/M.2 14th, 13th and 12th Gen mATX DDR4 Motherboard is a high-quality motherboard designed for use with Intel's latest 14th, 13th and 12th Gen processors. This motherboard supports mATX form factor and features DDR4 memory support for optimal performance.
Key specifications:
- Socket: LGA 1200
- Chipset: Intel H610
- Memory: 2 x DDR4 DIMM slots, supports up to 64GB
- Expansion slots: 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1
- Storage: 1 x M.2 slot, 4 x SATA 6Gb/s
- Rear panel ports: 1 x DVI-D, 1 x HDMI, 4 x USB 3.2 Gen1, 2 x USB 2.0, 1 x Gigabit Ethernet, 3 x Audio jacks
The ASROCK H610M-H2/M.2 motherboard is perfect for building a reliable and high-performance PC for gaming, content creation, or everyday computing tasks. Upgrade to this motherboard to take advantage of the latest Intel technology and enhance your computing experience.
