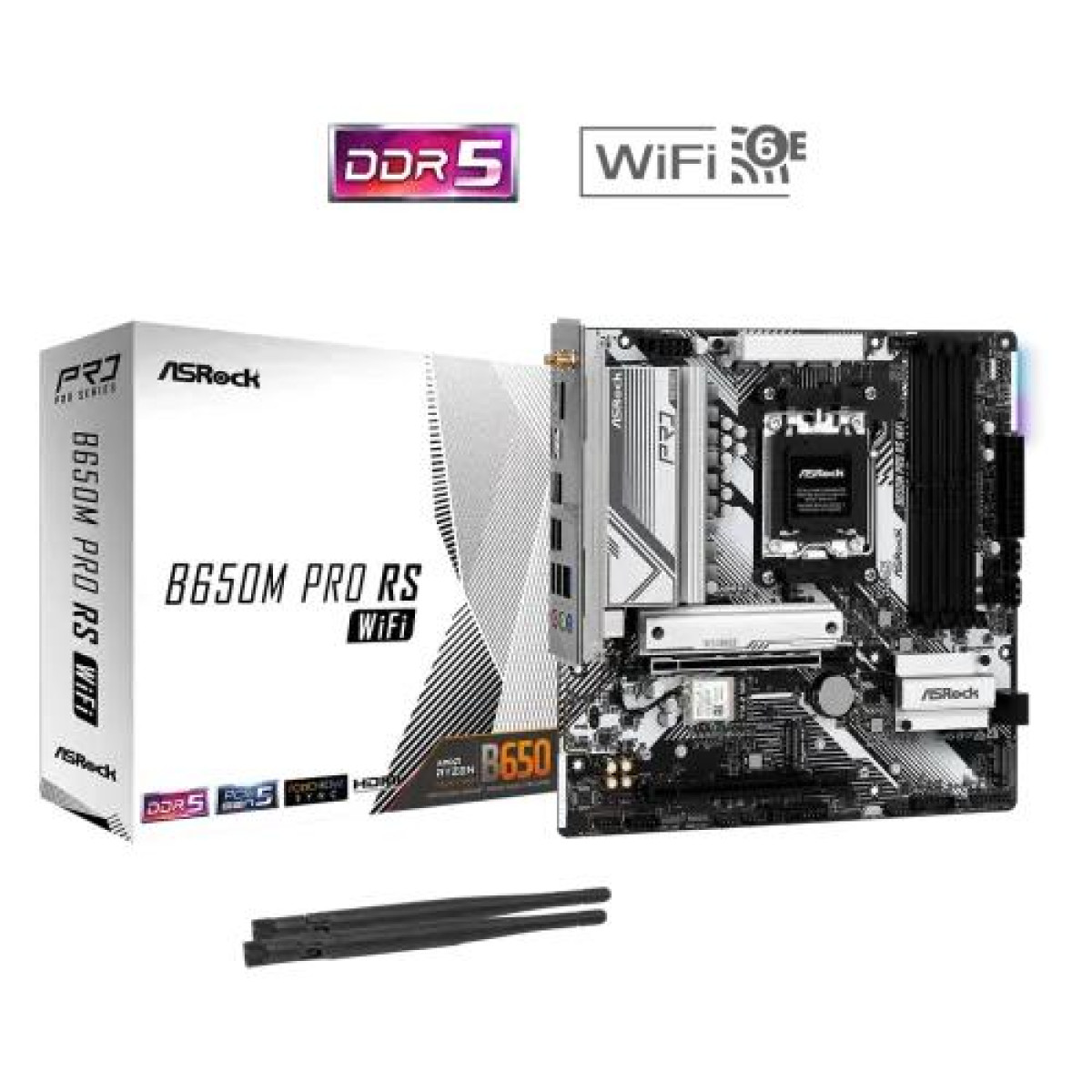

ASRock B650M Pro RS WiFi AM5 Micro ATX Motherboard
- Brand: ASRock
- Product Code: ASRock B650M Pro RS WiFi AM5 Micro ATX Motherboard
- Availability: In Stock
- Updated:
Specification
| BASIC INFORMATION | |
| Form Factor | - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm - 2oz Copper PCB |
|---|---|
| Supported CPU | Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors |
| Chipset | AMD B650 |
| Slots | - 4 x DDR5 DIMM Slots |
| Audio | 3 x Audio jacks |
| BIOS | - 256Mb AMI UEFI Legal BIOS with GUI support |
| Expansion Slots | |
| PCI | CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* - 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode* Chipset: - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module - Supports AMD CrossFire™ - 15μ Gold Contact in VGA PCIe Slot (PCIE1) |
| Graphics Specifications | |
| Graphics | Integrated AMD RDNA graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz |
| Memory Specifications | |
| Maximum Memory | Max. 256GB |
| Supported Memory | - Dual Channel DDR5 Memory Technology - Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)* - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
| Type | DDR5 |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1x DisplayPort 1.4 |
| HDMI | 1x HDMI |
| Internal I/O Ports | Rear Panel I/O - 2 x Antenna Mounting Points - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) - 2 x USB 3.2 Gen1 Ports - 4 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x BIOS Flashback Button - HD Audio Jacks: Line in / Front Speaker / Microphone Connector - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers** - 1 x CPU Fan Connector (4-pin)*** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen1 Header |
| LAN Port (s) | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control |
| Supported Storage | CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors |
| TPM (Trusted Platform Module ) | - 1 x SPI TPM Header |
| USB (s) | - 1 x USB 3.2 Gen2 Type-C (Rear) - 1 x USB 3.2 Gen2 Type-A (Rear) - 1 x USB 3.2 Gen1 Type-C (Front) - 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front) - 8 x USB 2.0 (4 Rear, 4 Front) |
| Wireless Communication module | - 802.11ax Wi-Fi 6E Module - Supports IEEE 802.11a/b/g/n/ac/ax - Supports Dual-Band 2x2 with extended 6GHz band* support - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.2 + High speed class II - Supports MU-MIMO |
| Special | |
| Bundled Software | Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* UEFI - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash |
| WARRANTY | |
| Manufacturing Warranty | 3 Years Warranty |
Description
The ASRock B650M Pro RS WiFi AM5 Micro ATX Motherboard is a powerful and reliable motherboard designed for computer users and students who demand top-notch quality, performance, and speed. This motherboard is perfect for those looking to build a high-performing computer that can handle the demands of modern computing tasks.
Featuring the latest AM5 socket, this motherboard is compatible with a wide range of processors, allowing you to choose the perfect CPU for your needs. The Micro ATX form factor makes it easy to fit into smaller computer cases while still offering all the features you need for a fully functional system.
The ASRock B650M Pro RS WiFi comes equipped with built-in WiFi capabilities, ensuring that you stay connected to the internet without the need for additional adapters or cables. This allows you to enjoy seamless online gaming, streaming, and browsing experiences without any interruptions.
When it comes to performance, this motherboard delivers exceptional speed and responsiveness, thanks to its support for high-speed memory, fast storage options, and advanced cooling solutions. Whether you're multitasking, gaming, or running resource-intensive applications, the ASRock B650M Pro RS WiFi has the power to keep up with your demands.
In addition to its impressive performance, this motherboard is also built to last, with high-quality components that ensure reliability and stability for years to come. With ASRock's reputation for excellence in motherboard design, you can trust that the B650M Pro RS WiFi will provide the performance and durability you need for all your computing needs.
If you're in Jashore, Bangladesh, and looking to purchase the ASRock B650M Pro RS WiFi AM5 Micro ATX Motherboard, look no further than Unix Network. Our sales and service shop offers a wide range of computer hardware and accessories, as well as expert advice and support to help you make the most of your purchase. Don't settle for anything less than the best – choose the ASRock B650M Pro RS WiFi for a premium computing experience.
