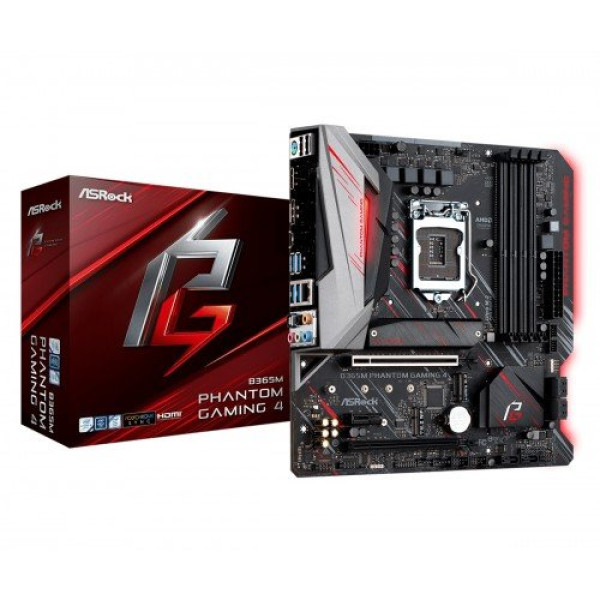

Asrock B365M Phantom Gaming 4 Motherboard

Specification

BASIC INFORMATION
Form Factor	Micro ATX Form Factor: 9.6-in x 9.52-in, 24.4 cm x 24.2 cm
Supported CPU	-Supports 9th and 8th Gen Intel® Core™ Processors (Socket 1151) - Supports CPU up to 95W - Digi Power design - 8 Power Phase design - Supports Intel® Turbo Boost 2.0 Technology
Chipset	Intel B365
BIOS	- 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU, GT, DRAM, PCH 1.0V, VCCSA, VCCST Voltage Multi-adjustment
Expansion Slots
M.2 Socket	1 x M.2 Socket
PCI	2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3)) 1 x PCI Express 3.0 x1 Slot (Flexible PCIe) 15μ Gold Contact in VGA PCIe Slot (PCIE1)
Graphics Specifications
Graphics	- Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz - Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required) - Supports HDCP 2.2 with HDMI and DisplayPort 1.2 Ports - Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.2 Ports
Memory Specifications
Maximum Size	64 GB
Slots	4 x DDR4 DIMM Slots
Supported Memory	Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory Supports ECC UDIMM memory modules (operate in non-ECC mode) Supports Intel® Extreme Memory Profile (XMP) 2.0
Type	Dual Channel DDR4 Memory Technology
PORTS, CONNECTORS & SLOTS
Audio Jack Combo	HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
HDMI	1 x HDMI Port
LAN Port (s)	1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
USB (s)	- 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x USB 3.1 Gen1 Type-C Port (Supports ESD Protection) - 4 x USB 3.1 Gen1 Ports (Supports ESD Protection)
Internal I/O Connectors	- 1 x COM Port Header - 1 x TPM Header - 1 x Chassis Intrusion and Speaker Header - 2 x RGB LED Headers* - 1 x Addressable LED Header - 1 x CPU Fan Connector (4-pin)* - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection) - 1 x Post Status Checker (PSC)
WARRANTY
Manufacturing Warranty	03 years

Description

Experience Unmatched Performance with the Asrock B365M Phantom Gaming 4

The Asrock B365M Phantom Gaming 4 Motherboard is designed for gamers and PC enthusiasts who demand top-notch performance and reliability. Featuring the Intel B365 chipset, this motherboard supports 9th Gen Intel Core processors, ensuring that your system runs smoothly and efficiently. With dual-channel DDR4 memory support of up to 64GB, you can enjoy high-speed multitasking and gaming without any lag. Enhanced gaming features such as the dedicated Phantom Gaming 4 feature set, which includes a robust audio system and high-quality capacitors, provide an immersive gaming experience.

Equipped with multiple PCIe slots, the B365M Phantom Gaming 4 allows for extensive upgrade options, whether you're looking to add a new graphics card or improve your system's storage capabilities. USB 3.1 Gen2 connectivity ensures fast data transfers, making it perfect for gamers who want to load their games quickly. Additionally, the motherboard supports M.2 NVMe SSDs, optimizing your system for faster read and write speeds.

With its sleek design and customizable RGB lighting, the Asrock B365M Phantom Gaming 4 not only performs exceptionally but also looks great in any build. Experience the best of both worlds with this motherboard, combining performance and aesthetics for the ultimate gaming setup.

Asrock B365M Phantom Gaming 4 Motherboard for 9th Gen CPUs
