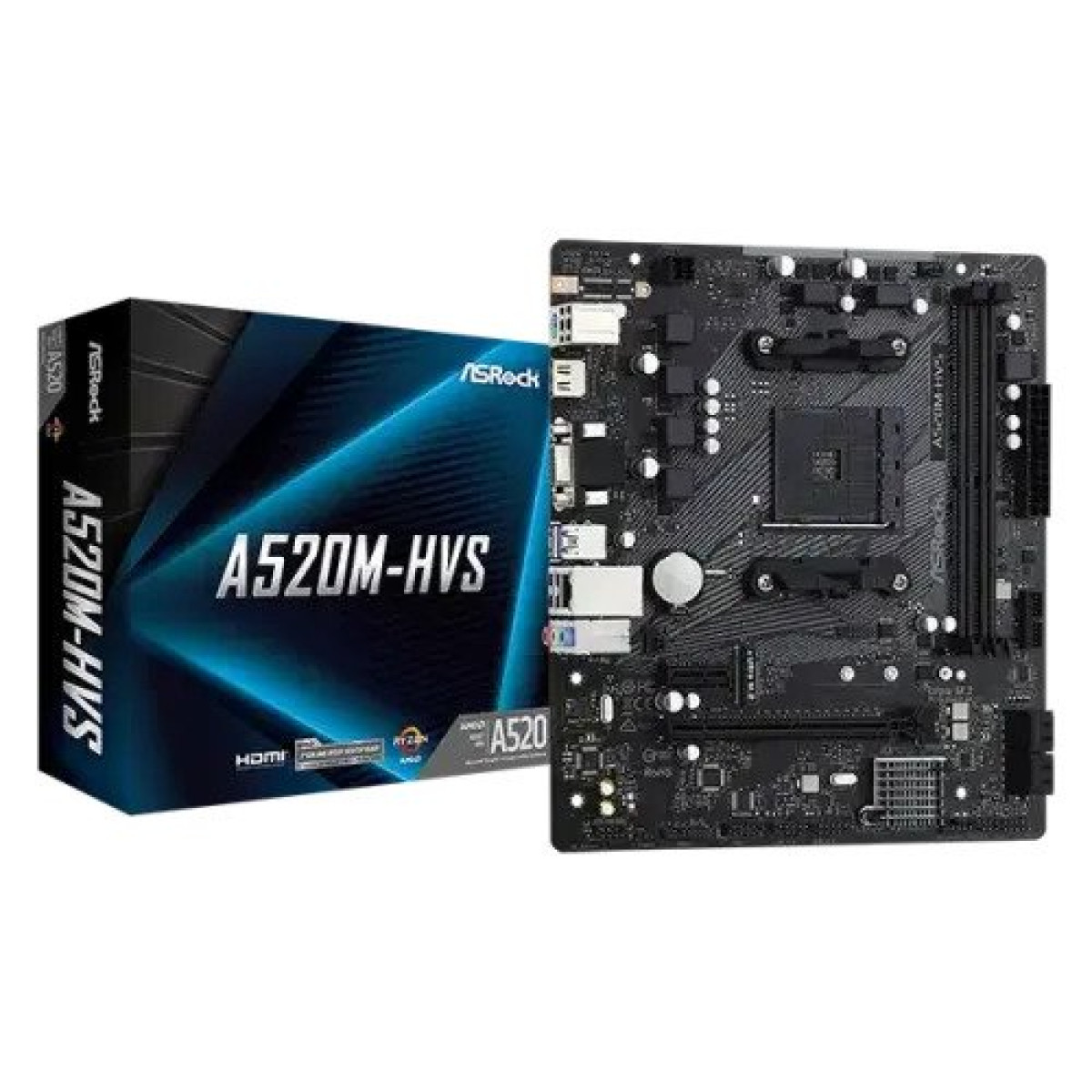

ASRock A520M-HVS AMD AM4 Micro ATX Motherboard
- Brand:ASRock
- Product Code: A520M-HVS
- Availability:Out of Stock
- Updated:
Specification
| BASIC INFORMATION | |
| Form Factor | Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm Solid Capacitor design |
|---|---|
| Graphics | - Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU* - DirectX 12, Pixel Shader 5.0 - Shared memory default 2GB. Max Shared memory supports up to 16GB.** - Dual graphics output: support D-Sub and HDMI ports by independent display controllers - Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required) - Supports HDR (High Dynamic Range) with HDMI 2.1 - Supports HDCP 2.3 with HDMI 2.1 Port - Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port - Supports Microsoft PlayReady |
| SpecialFeatures | ASRock Super Alloy - Premium 50A Power Choke - Sapphire Black PCB - High Density Glass Fabric PCB ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop |
| Chipset | AMD A520 |
| Audio | HD Audio Jacks: Line in / Front Speaker / Microphone |
| BIOS | - 128Mb AMI UEFI Legal BIOS with GUI support - Supports "Plug and Play" - ACPI 5.1 compliance wake up events - Supports jumperfree - SMBIOS 2.3 support - CPU, CPU VDDCR_SOC, DRAM, VDDP Voltage Multi-adjustment |
| Graphics Specifications | |
| Max Shared Memory | 16GB |
| Memory Specifications | |
| Slots | 2 x DIMM |
| Supported Memory | Dual Channel DDR4 Memory Technology AMD Ryzen series CPUs (Vermeer) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series APUs (Cezanne) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* Supports Extreme Memory Profile (XMP) memory modules 15μ Gold Contact in DIMM Slots |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| D-Sub (s) | 1 x D-Sub |
| HDMI | 1 x HDMI |
| Supported Storage | CPU: 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes* Chipset: 4 x SATA3 6.0 Gb/s Connectors |
| TPM (Trusted Platform Module ) | 1 x SPI TPM Header |
| USB (s) | 2 x USB 2.0 Ports (Supports ESD Protection) 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
| WARRANTY | |
| Manufacturing Warranty | 03 Years Warranty |
Description
Unleash Your PC's Potential with the ASRock A520M-HVS Motherboard
The ASRock A520M-HVS AMD AM4 Micro ATX Motherboard is engineered for those who seek high performance and reliability without breaking the bank. Designed specifically for AMD processors, this motherboard is the perfect choice for gamers, content creators, and everyday users who demand both speed and efficiency. With its compact Micro ATX form factor, it fits seamlessly into most PC cases, making it a versatile option for any build.
This motherboard comes equipped with the AMD AM4 socket, supporting the latest Ryzen processors, offering exceptional multi-threading capabilities and impressive clock speeds. The A520M-HVS also supports up to 64GB of DDR4 RAM, allowing for smooth multitasking and enhanced performance during intensive applications. Coupled with its dual-channel memory architecture, users can expect faster data processing times, which is critical for gaming and video editing.
One of the standout benefits of the ASRock A520M-HVS is its robust connectivity options. With multiple USB 3.2 Gen1 ports, HDMI and DisplayPort outputs, and support for high-speed M.2 NVMe SSDs, you can enjoy lightning-fast data transfer speeds and improved graphics performance. Whether you're playing the latest AAA games or streaming high-resolution videos, this motherboard ensures that your system remains responsive and efficient.
Another remarkable feature is its durability. Built with high-quality components, the A520M-HVS is designed to withstand the rigors of daily use. The motherboard's solid capacitors and reinforced PCIe slots enhance its longevity, making it a reliable choice for long-term use. ASRock also offers a comprehensive warranty, giving you peace of mind with your investment.
In Bangladesh, the ASRock A520M-HVS stands out in the crowded motherboard market due to its balanced price-to-performance ratio. It caters to a wide audience, from casual users to serious gamers, ensuring that you get the best value for your money. With its easy installation process and user-friendly BIOS interface, even those new to PC building can set up their systems with confidence.
In conclusion, if you're looking for a motherboard that combines performance, reliability, and affordability, the ASRock A520M-HVS AMD AM4 Micro ATX Motherboard is your ideal choice. Upgrade your computing experience today and unleash the full potential of your PC!
