Key highlights
- Form Factor: ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
- Supported CPU: AMD AM4 Socket - Digi Power design - 6 Power Phase design
- Chipset: AMD Promontory B450
- Memory: 64GB
- Slots: 4 x DDR4 DIMM Slots
Description

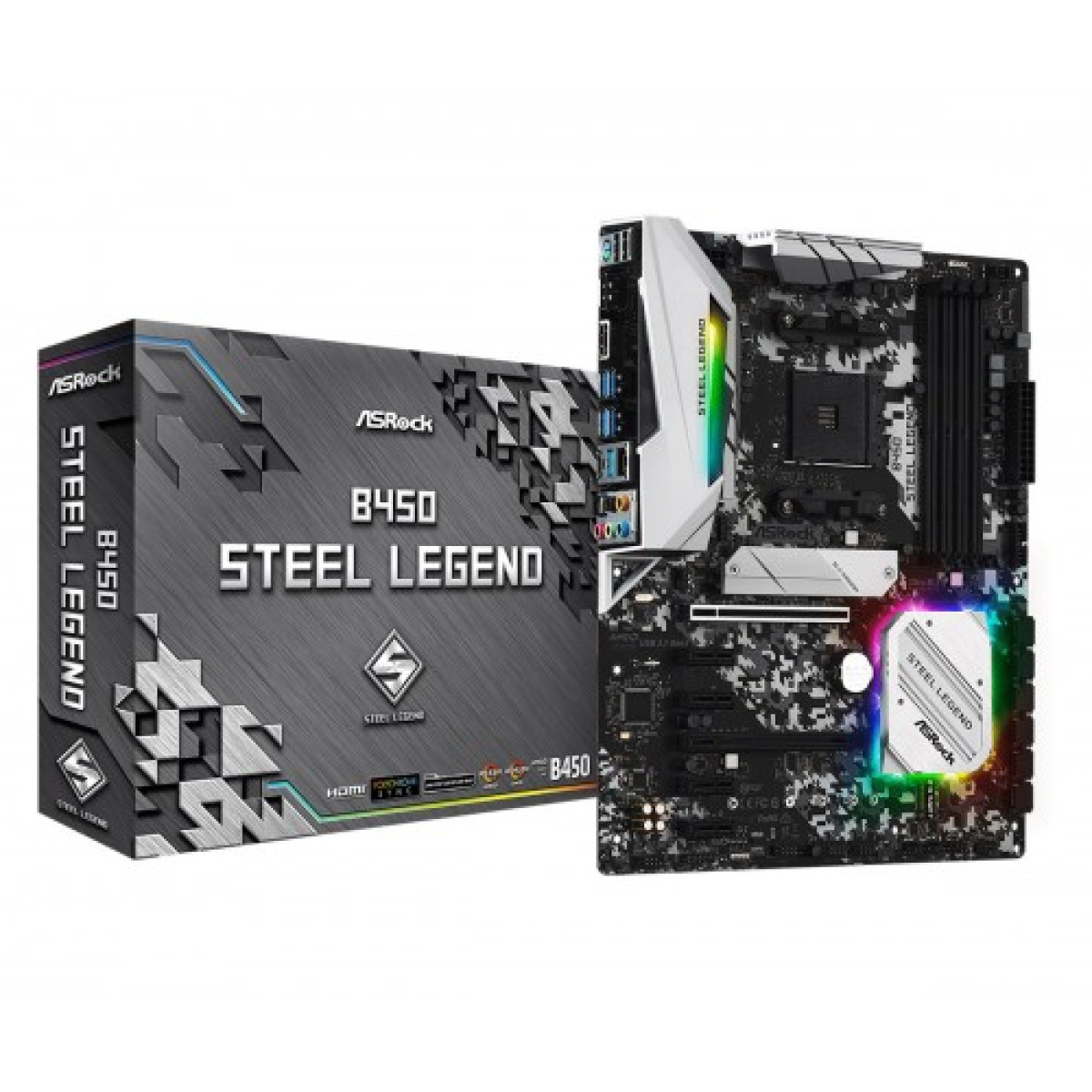

Asrock B450 Steel Legend AMD Motherboard for Your Build
Asrock B450 Steel Legend AMD Motherboard
The Asrock B450 Steel Legend is a top-tier motherboard designed for gamers and PC enthusiasts alike. Built with durability and performance in mind, this motherboard stands out with its sleek aesthetics, featuring a stunning steel design. Equipped with the AMD B450 chipset, it supports the latest Ryzen processors, ensuring seamless multitasking and excellent gaming performance. With four DIMM slots, it allows for up to 64GB of DDR4 RAM, giving you the flexibility to upgrade your memory as needed. The motherboard also includes PCIe 3.0 slots for high-speed graphics cards, ensuring you can run modern games at their best. Additionally, with M.2 slots for NVMe SSDs, you can experience lightning-fast data transfer speeds, making your system responsive and quick.
Connectivity is also a strong point for the B450 Steel Legend, featuring USB 3.1 Gen2 ports for fast data transfer and a comprehensive set of audio and LAN options for an immersive experience. Asrock’s Steel Legend series is well-known for its robust build quality, ensuring long-lasting performance even under heavy loads. If you are in Jashore, Bangladesh and looking for a reliable motherboard that combines performance with style, the Asrock B450 Steel Legend is an excellent choice.
Upgrade Your PC with the Asrock B450 Steel Legend
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm |
| Supported CPU | AMD AM4 Socket - Digi Power design - 6 Power Phase design |
| Chipset | AMD Promontory B450 |
| Memory | 64GB |
| Slots | 4 x DDR4 DIMM Slots |
| Audio | HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) |
| BIOS | - 128Mb AMI UEFI Legal BIOS with multilingual GUI support - Supports "Plug and Play" - ACPI 5.1 compliance wake up events - Supports jumperfree - SMBIOS 2.3 support - DRAM Voltage multi-adjustment |
| Expansion Slots | |
| M.2 Socket | 1 x Ultra M.2 Socket |
| PCI | AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge) - 2 x PCI Express 3.0 x16 Slots (PCIE1: x16 mode; PCIE4: x4 mode) AMD Ryzen series CPUs (Raven Ridge) - 2 x PCI Express 3.0 x16 Slots (PCIE1: x8 mode; PCIE4: x4 mode) (If you use Athlon 2xxGE series APU, PCIE1 slot will run at x4 mode.) AMD Athlon series CPUs - 2 x PCI Express 3.0 x16 Slots (PCIE1: x4 mode; PCIE4: x2 mode) - 4 x PCI Express 2.0 x1 Slots - Supports AMD Quad CrossFireX™ and CrossFireX |
| Graphics Specifications | |
| Max Shared Memory | 2GB |
| Memory Specifications | |
| Supported Memory | AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3533+(OC) / 3200(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory. AMD Ryzen series CPUs (Summit Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory. AMD Ryzen series CPUs (Raven Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933/2667/2400/2133 non-ECC, un-buffered memory |
| Type | Dual Channel DDR4 Memory Technology |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1 x DisplayPort 1.2 |
| HDMI | 1 x HDMI Port |
| LAN Port (s) | 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
| USB (s) | 2 x USB 2.0 Ports (Supports ESD Protection) 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) 4 x USB 3.1 Gen1 Ports (Supports ESD Protection) |
| Internal I/O Connectors | 1 x COM Port Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 1 x Addressable LED Header** - 1 x AMD Fan LED Header*** - 1 x CPU Fan Connector (4-pin)**** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***** - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection) |
| WARRANTY | |
| Manufacturing Warranty | 03 years |
