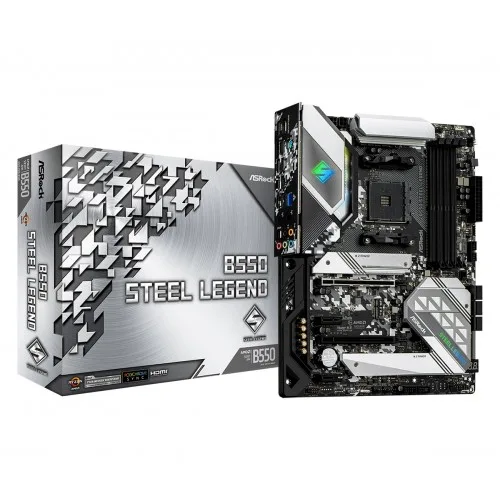

ASRock B550 Steel Legend DDR4 AMD AM4 ATX Motherboard
৳19,600
Key highlights
- Form Factor: - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - 2oz Copper PCB
- Supported CPU: Supports AMD AM4 Socket Ryzen 3000, 4000 G-Series, and 5000 Series Desktop Processors - Digi Power design - 14 Power Phase design
- Chipset: AMD B550
- Memory: 128GB
- Slots: 4 x DIMM Slots
Genuine products with manufacturer warranty where applicable. Keep your invoice for warranty claims.
Contact us within the return window for defective or wrong items. Open-box returns may vary by category.
Description
Upgrade to ASRock B550 Steel Legend for Gaming Excellence
Unleash Your Gaming Potential with ASRock B550 Steel Legend
The ASRock B550 Steel Legend DDR4 AMD AM4 ATX Motherboard is designed to empower gamers and PC builders with its robust features and stunning aesthetics. Built on the AMD B550 chipset, this motherboard supports the latest Ryzen processors, ensuring seamless multitasking and exceptional gaming performance. The Steel Legend series is renowned for its durability, featuring a striking steel-infused design that not only enhances its appearance but also provides increased longevity.
Equipped with four DIMM slots, the motherboard supports up to 128GB of DDR4 memory, allowing users to run demanding applications and games without any lag. The PCIe 4.0 slots provide lightning-fast data transfer rates, ensuring that your graphics card and SSDs operate at peak efficiency. Additionally, the motherboard includes advanced connectivity options like USB 3.2 Gen2 and Wi-Fi 6, making it ideal for modern gaming setups.
In terms of cooling, the ASRock B550 Steel Legend comes with multiple fan headers and heatsinks that ensure optimal thermal performance. Gamers in Bangladesh will appreciate the high-quality capacitors and solid-state chokes that provide reliability and stability during intense gaming sessions. With its combination of performance, style, and advanced features, the ASRock B550 Steel Legend is a top choice for gamers and PC enthusiasts alike.
Explore Features of B550 Steel Legend Motherboard
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - 2oz Copper PCB |
| Supported CPU | Supports AMD AM4 Socket Ryzen 3000, 4000 G-Series, and 5000 Series Desktop Processors - Digi Power design - 14 Power Phase design |
| Chipset | AMD B550 |
| Memory | 128GB |
| Slots | 4 x DIMM Slots |
| Audio | - 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) - Premium Blu-ray Audio support - Gold Audio Jacks - 15μ Gold Audio Connector - Nahimic Audio - 1 x Front Panel Audio Connector (15μ Gold Audio Connector) - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) |
| BIOS | - 256Mb AMI UEFI Legal BIOS with GUI support - Supports "Plug and Play" - ACPI 5.1 compliance wake up events - Supports jumperfree - SMBIOS 2.3 support - CPU, CPU VDDCR_SOC, DRAM, VPPM, VTT_DDR Offset, CPU VDD 1.8 Voltage Multi-adjustment |
| Expansion Slots | |
| M.2 Socket | 1 x Hyper M.2 Socket (M2_1), supports M Key type 2230/ 2242/ 2260/ 2280 M.2 PCI Express module up to Gen4 x4 (64 Gb/s) (with Matisse) or Gen3x 4 (32 Gb/s) (with Renoir) 1 x M.2 Socket (M2_2), supports M Key type 2230/ 2242/ 2260/ 2280/ 22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s) 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
| PCI | AMD Ryzen series CPUs (Matisse) 2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode) AMD Ryzen series APUs (Renoir) 2 x PCI Express x16 Slots (PCIE1: Gen3x16 mode; PCIE3: Gen3 x4 mode) 2 x PCI Express 3.0 x1 Slots |
| Graphics Specifications | |
| Max Shared Memory | supports up to 16GB |
| Graphics | - Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU - DirectX 12, Pixel Shader 5.0 - Shared memory default 2GB. Max Shared memory supports up to 16GB. - Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers - Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports DisplayPort 1.4 with max. resolution up to 5K (5120x2880)@120Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required) - Supports HDR (High Dynamic Range) with HDMI 2.1 - Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 Ports - Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 Ports - Supports Microsoft PlayReady - AMD CrossFireX -Supports AMD Quad CrossFireX and CrossFireX |
| Memory Specifications | |
| Supported Memory | AMD Ryzen series CPUs (Matisse) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory Dual-Channel DDR4 Memory Technology Supports Extreme Memory Profile (XMP) memory modules |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1 x DisplayPort 1.4 (DisplayPort 1.4 with max. resolution up to 5K (5120x2880)@120Hz) |
| HDMI | 1 x HDMI Port (HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz) |
| LAN Port (s) | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User-Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control Supports Wake-On-LAN Supports Lightning/ESD Protection Supports Energy Efficient Ethernet 802.3az Supports PXE |
| Supported Storage | - 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI, and Hot Plug - 1 x Hyper M.2 Socket (M2_1), supports M Key type 2230/ 2242/ 2260/ 2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Renoir) - 1 x M.2 Socket (M2_2), supports M Key type 2230/ 2242/ 2260/ 2280/ 22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s) |
| USB (s) | 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) 4 x USB 2.0 Ports (Supports ESD Protection) |
| Internal I/O Connectors | - 2 x Antenna Mounting Points - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x Optical SPDIF Out Port - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) - 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) - 4 x USB 2.0 Ports (Supports ESD Protection)* - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) - 1 x Power LED and Speaker Header - 2 x RGB LED Headers* - 2 x Addressable LED Headers** - 1 x CPU Fan Connector (4-pin)*** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** - 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector (15μ Gold Audio Connector) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) - 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection) - 1 x Dr. Debug with LED |
| WARRANTY | |
| Manufacturing Warranty | 03 years warranty |
