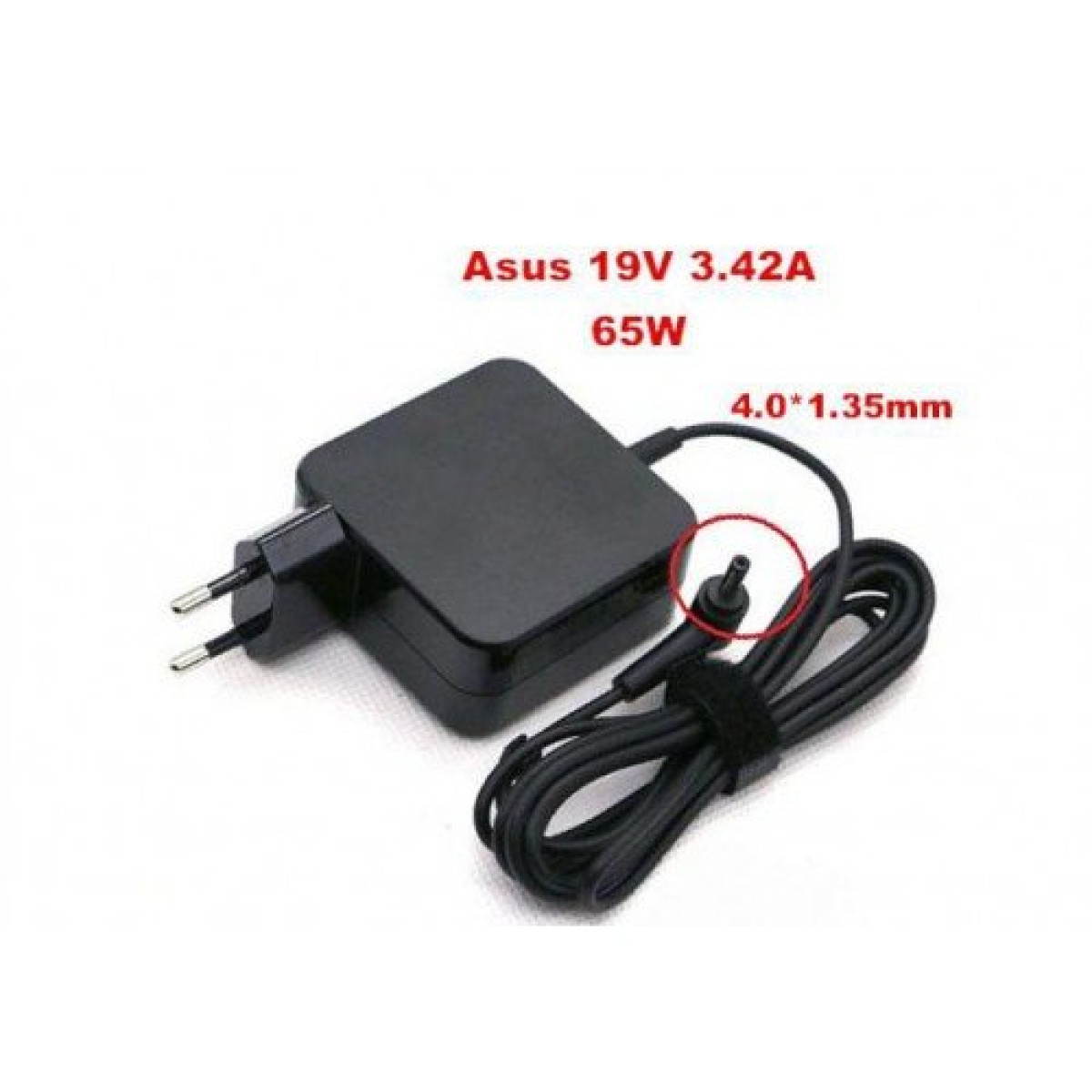

Asus laptop Original Adapter power charger Small Pin 3.42A

The Asus Laptop Original Adapter Power Charger Small Pin 3.42A is a compact 65W laptop power adapter designed for compatible Asus notebooks that use the small 4.0mm x 1.35mm DC charging connector. With a 19V, 3.42A output and a wide 100–240V AC input range, it is suitable as a replacement or spare charger for compatible Asus laptops used at home, in offices, educational environments and while travelling.

Asus Laptop Original Small Pin 3.42A Charger in Bangladesh

Finding the correct Asus laptop charger is important because laptop adapters are not interchangeable simply because they have the same wattage. The output voltage, current capacity and DC connector size all need to match the laptop's requirements. This Asus Small Pin 3.42A adapter provides a 19V, 3.42A output, equivalent to 65W, with a 4.0mm x 1.35mm small-pin connector.

The compact small-pin design is particularly useful for compatible Asus notebook models that use this connector rather than the larger barrel-style Asus plugs. Before purchasing, compare the connector with your existing adapter and check the voltage and wattage printed on the laptop's original charger.

65W Power Output for Compatible Asus Laptops

The adapter delivers 19V at up to 3.42A, providing a maximum rated output of 65W. This makes it suitable for compatible Asus laptops designed to operate with a 65W power supply.

A properly matched 65W adapter can provide the power required for normal laptop operation while charging the battery. The actual charging behaviour depends on the laptop model, battery condition, workload and charging circuitry.

Small 4.0mm x 1.35mm Pin Connector

One of the most important characteristics of this charger is its small-pin DC connector. The commonly listed tip size is 4.0mm x 1.35mm.

Connector dimensions are critical when replacing a laptop adapter. A charger with the wrong physical connector may not fit correctly, even when its voltage and wattage appear similar. Asus also uses other connector sizes, including 4.5mm x 3.0mm on certain models, so buyers should not select an adapter based only on the 3.42A rating.

Wide 100–240V AC Input

The adapter supports an AC input range of 100–240V at 50/60Hz. This wide input range makes it suitable for use with standard electrical supplies in Bangladesh and many other regions.

The charger converts the incoming AC power into the regulated DC power required by the compatible Asus laptop. Using the correct adapter helps the laptop receive stable power during everyday operation and charging.

Protection Features for Everyday Use

Listings for this Asus Small Pin 3.42A adapter describe protection against short circuits, overload and excessive temperature. These protection functions are important in a laptop power supply because the adapter operates continuously during charging and can be exposed to varying electrical and thermal conditions.

Protection circuitry does not remove the need for proper handling. Keep the adapter away from excessive moisture and heat, avoid sharply bending the DC cable and discontinue use if the cable, connector or adapter housing becomes damaged.

Asus Small Pin Adapter Specifications

Why the 19V and 3.42A Rating Matters

Laptop adapters have specific electrical requirements. The 19V output is the adapter's rated voltage, while 3.42A represents the maximum current it can provide at its rated output. Together, these values produce approximately 65W of power.

When replacing a charger, the output voltage should match the laptop's required voltage. The replacement adapter should also have sufficient current capacity and the correct connector polarity and physical dimensions. The safest approach is to compare the information printed on the original adapter with the replacement adapter before connecting it.

Check the Connector Before Ordering

Asus laptops have been sold with several different charger connectors. The product covered here uses the 4.0mm x 1.35mm small-pin connector. It should not be confused with Asus adapters using a 4.5mm x 3.0mm inside-pin connector. Both types can be associated with 65W and 3.42A specifications, but they are physically different.

If you are uncertain about your laptop's connector, comparing the old charger, laptop charging port and adapter label is recommended before ordering. A clear photograph of the existing adapter label and connector can also make identification easier.

Replacement Charger for a Damaged or Missing Adapter

A replacement adapter can be useful when an original charger has been lost, physically damaged, intermittently disconnects or no longer supplies power correctly. Symptoms such as the laptop repeatedly switching between charging and battery mode, a loose DC connection or visible cable damage can indicate that the adapter or cable requires inspection.

However, charging problems are not always caused by the adapter. A damaged laptop charging port, worn battery, motherboard power circuit or damaged power cable can produce similar symptoms. If a known-good compatible charger does not solve the problem, the laptop itself may require technical diagnosis.

Useful as a Spare Asus Laptop Charger

A second compatible adapter can be convenient for users who regularly move between home and office. Instead of repeatedly unplugging and carrying the main charger, a spare can remain at another location.

It can also be useful for students, professionals and frequent travellers who want a dedicated charger for their regular workspace. Because the adapter is intended for compatible Asus laptops, the electrical and connector specifications should always be checked before use.

Suitable for Home, Office and Study

The 65W power rating is appropriate for compatible Asus notebook computers designed around this adapter specification. It can support normal productivity tasks such as web browsing, document work, online classes, programming, video playback and office applications while the laptop is connected to AC power.

The adapter is a power supply rather than a performance upgrade. Using a higher-quality or correctly matched charger will not increase the processor or graphics performance of the laptop, but using the correct power specification helps maintain proper charging and operation.

Portable and Practical Charging Solution

The small-pin format is designed for Asus notebook systems with compact DC charging ports. This makes the adapter practical for everyday use where the laptop needs to be connected to mains power for charging or extended operation.

When transporting the charger, avoid wrapping the cable extremely tightly around the adapter body. A loose, controlled cable loop helps reduce unnecessary stress at the cable joints and connector.

Important Compatibility Advice

• Confirm that your Asus laptop requires a 19V power adapter.
• Confirm that the laptop's required power rating is compatible with a 65W adapter.
• Check that the charging connector is 4.0mm x 1.35mm.
• Do not assume that every Asus 3.42A adapter uses the same connector.
• Compare the replacement adapter with the electrical information printed on the original charger.
• Check the connector carefully before inserting it into the laptop.
• If the laptop has a damaged charging port, have it inspected rather than repeatedly forcing the connector.

Small Pin vs Other Asus Charger Connectors

This comparison highlights why checking the connector is just as important as checking the wattage. A 65W Asus adapter with a different connector should not automatically be treated as a replacement for this model.

Care and Maintenance

To maximise the practical life of a laptop adapter, keep the power brick in a ventilated area and avoid covering it with clothing, bedding or other materials during operation. Excessive heat can place unnecessary stress on electronic components.

Inspect the DC cable periodically for cuts, exposed wires, severe bends or looseness around the connector. If the adapter makes unusual noises, develops a burning smell or shows visible damage, stop using it and have it checked by a qualified technician.

Who Should Buy This Asus 3.42A Adapter?

• Asus laptop owners whose original charger uses a 4.0 x 1.35mm small pin.
• Users looking for a 65W replacement adapter for a compatible Asus notebook.
• Customers needing a spare charger for home, office or travel.
• Users replacing a damaged or lost compatible Asus power adapter.
• Students and professionals using compatible Asus laptops for everyday computing.

Who Should Not Buy It Without Checking?

• Users whose Asus laptop requires a different voltage.
• Users whose laptop requires more than the adapter's rated power.
• Users whose laptop uses a different DC connector.
• Users who are unsure whether their Asus model requires a small-pin or inside-pin adapter.
• Users attempting to replace a USB-C charger with a barrel-type adapter, or vice versa.

Why Buy Asus Laptop Accessories from Unix Network?

Unix Network is a computer and laptop retailer serving customers in Jessore and throughout Bangladesh. For laptop accessories such as replacement adapters, compatibility is more important than simply choosing the cheapest charger available.

Customers visiting a Laptop Shop in Jessore can compare the adapter connector and specifications with their existing charger before purchasing. This can help reduce the risk of selecting a charger with the wrong pin size or electrical rating.

Unix Network also serves customers outside Jessore through nationwide delivery, making it convenient to source compatible laptop accessories from different parts of Bangladesh. Customers should provide their exact laptop model or existing adapter information when compatibility is uncertain.

Warranty Information

Warranty terms for Asus Small Pin 3.42A adapters can vary depending on the seller and specific product version. Local listings for this product commonly show a six-month warranty, while some sellers list different terms. Confirm the warranty period and conditions at the time of purchase.

Frequently Asked Questions

What is the output of the Asus Small Pin 3.42A adapter?

The adapter provides 19V DC at 3.42A, giving it a rated maximum output of 65W.

What is the pin size of this Asus charger?

The small-pin version uses a 4.0mm x 1.35mm connector according to the product specifications listed by Bangladeshi retailers.

Is this a 65W Asus laptop charger?

Yes. Its 19V and 3.42A output corresponds to a maximum rated power of 65W.

Will this charger work with every Asus laptop?

No. Asus has used different charger voltages, wattages and connector sizes across its laptop range. The laptop's electrical requirements and connector must match before using this adapter.

Is 4.0 x 1.35mm the same as 4.5 x 3.0mm?

No. They are different physical connector sizes. A 4.0 x 1.35mm small pin should not be confused with the 4.5 x 3.0mm Asus inside-pin connector used by other models.

Can I use this as a spare charger?

Yes, provided your Asus laptop is compatible with the 19V, 3.42A, 65W specification and the 4.0 x 1.35mm connector.

Does the adapter support 100–240V input?

Yes. The listed input specification is AC 100–240V at 50/60Hz.

What should I check before buying this charger?

Check your laptop model, original adapter's output voltage, current and wattage, and especially the physical DC connector size. Matching all of these specifications is preferable to choosing based only on the Asus brand name.

Can a charger fix a laptop that does not charge?

Only if the charger is the cause of the problem. A faulty battery, damaged charging port or internal power circuit can also cause charging problems, so persistent faults may require laptop diagnosis.

Final Verdict

The Asus Laptop Original Adapter Power Charger Small Pin 3.42A is a practical 65W charging solution for compatible Asus laptops requiring a 19V, 3.42A power supply and 4.0 x 1.35mm small-pin connector. Its wide 100–240V AC input and compact connector design make it suitable for everyday laptop charging at home, work, study and travel.

The most important consideration is compatibility. Asus uses multiple charger designs, so buyers should verify the voltage, wattage and connector size of their existing adapter before ordering. When those specifications match, this 65W small-pin charger can serve as a suitable replacement or spare power adapter for the corresponding Asus laptop systems.
