Basic Information
Supported CPU intel® Socket 1151 for 8th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Chipset intel® H310
BIOS 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, MultilanguageBIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 MyFavorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (SerialPresence Detect) memory information
Form Factor mATX Form Factor
8.9 inch x 7.3 inch ( 22.6 cm x 18.5 cm )
Expansion Slots
PCI 1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
2 x PCIe 2.0 x1
M.2 Socket 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode)
Memory
Type DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Slots 2 x DIMM
Supported Memory Supports intel® Extreme Memory Profile (XMP)
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* The maximum memory frequency supported varies by processor
** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on intel® 8th Gen. 6-core or higher processors.
Maximum Mamory 32GB
Graphics
Graphics Multi-VGA output support : HDMI/D-Sub ports
- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 25600 x 1600 @ 60 Hz
- Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz
Max Shared Memory Maximum shared memory of 1024 MB (for iGPU exclusively)
Connector & Ports
HDMI 1 x HDMI
USB (s) intel® H310 Chipset :
4 x USB 3.1 Gen 1 up to 5Gbps port(s) (2 at back panel, blue, Type-A, 2 at mid-board)
intel® H310 Chipset :
6 x USB 2.0/1.1 port(s) (2 at back panel, 4 at mid-board)
LAN Port (s) Realtek® RTL8111H, 1 x Gigabit LAN
ASUS LAN Guard
Supported Storage intel® H310 Chipset :
1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode)*1
4 x SATA 6Gb/s port(s), gray,
Audio Realtek® ALC887 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Front Panel Jack-retasking
Audio Feature :
- LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.
Warranty Information
Manufacturing Warranty 03 Years
Description:
Description:

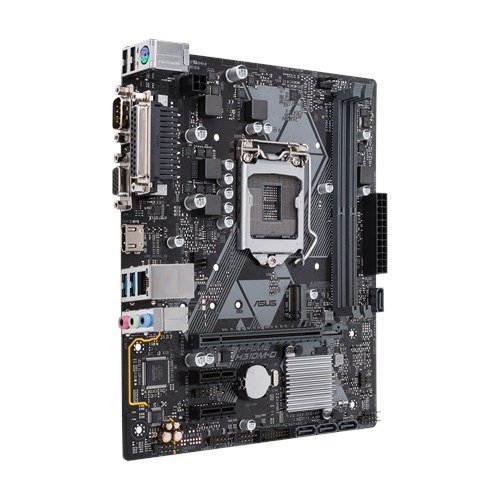

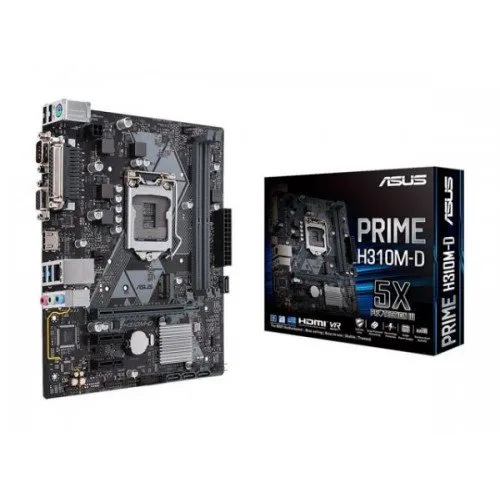

Upgrade your computer with the Asus PRIME H310M D 8th Gen mATX Motherboard available at Unix Network in Jashore, Bangladesh. This reliable motherboard is compatible with 8th generation Intel processors, providing smooth performance for all your computing needs. The mATX form factor allows for a compact build without compromising on features, making it perfect for both work and play. Visit Unix Network today and experience the power and efficiency of the Asus PRIME H310M D 8th Gen mATX Motherboard.
