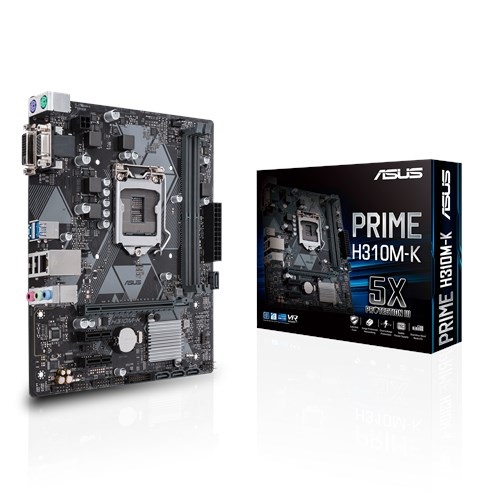

Asus PRIME H310M-K R2.0 Motherboard for 8th Gen Intel

Specification

BASIC INFORMATION
Form Factor	mATX Form Factor 8.9 inch x 7.3 inch ( 22.6 cm x 18.5 cm )
Supported CPU	Intel® Socket 1151 for 8th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Chipset	Intel H310
Memory	32GB
Slots	2 x DIMM
Audio	Realtek® ALC887 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Front Panel Jack-retasking Audio Feature : - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity * Choose the chassis with HD audio module in front panel to support 8-channel audio output.
BIOS	128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, MultilanguageBIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 MyFavorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (SerialPresence Detect) memory information
Expansion Slots
PCI	1 x PCIe 3.0/2.0 x16 (x16 mode, gray) 2 x PCIe 2.0 x1
Graphics Specifications
Graphics	Multi-VGA output support : DVI-D/D-Sub ports - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz - Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz
Memory Specifications
Supported Memory	Supports Intel® Extreme Memory Profile (XMP) * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * The maximum memory frequency supported varies by processor ** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.
Type	DDR4
PORTS, CONNECTORS & SLOTS
LAN Port (s)	Realtek® RTL8111H, 1 x Gigabit LAN
Supported Storage	Intel® H310 Chipset : 4 x SATA 6Gb/s port(s), gray,
USB (s)	Intel® H310 Chipset : 4 x USB 3.1 Gen 1 up to 5Gbps port(s) (2 at back panel, blue, Type-A, 2 at mid-board) Intel® H310 Chipset : 6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board)
Internal I/O Connectors	1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x Speaker connector
WARRANTY
Manufacturing Warranty	03 Years

Description

Asus PRIME H310M-K R2.0: Your Gateway to Performance

Upgrade your PC with the Asus PRIME H310M-K R2.0 motherboard, designed for 8th generation Intel processors. This mATX motherboard delivers an exceptional performance and reliability tailored for both gamers and professionals. With its advanced features, it provides a perfect balance between performance, durability, and value for your money.

Enhanced Connectivity: Equipped with USB 3.1 Gen 1 and HDMI ports, it ensures that you stay connected with high-speed data transfer and superior graphics output.

Robust Build Quality: The Asus PRIME H310M-K R2.0 boasts high-quality capacitors and solid-state components, ensuring longevity and dependable operation under demanding conditions.

Efficient Cooling Solutions: With multiple fan connectors and comprehensive cooling options, this motherboard is engineered to keep your system cool, even during intense gaming sessions.

This motherboard is perfect for users in Bangladesh seeking a reliable and powerful foundation for their computing needs. Experience seamless multitasking and smooth performance whether you're gaming, streaming, or working on intensive applications.

Buy Asus PRIME H310M-K R2.0 8th Gen mATX Motherboard in Jashore
