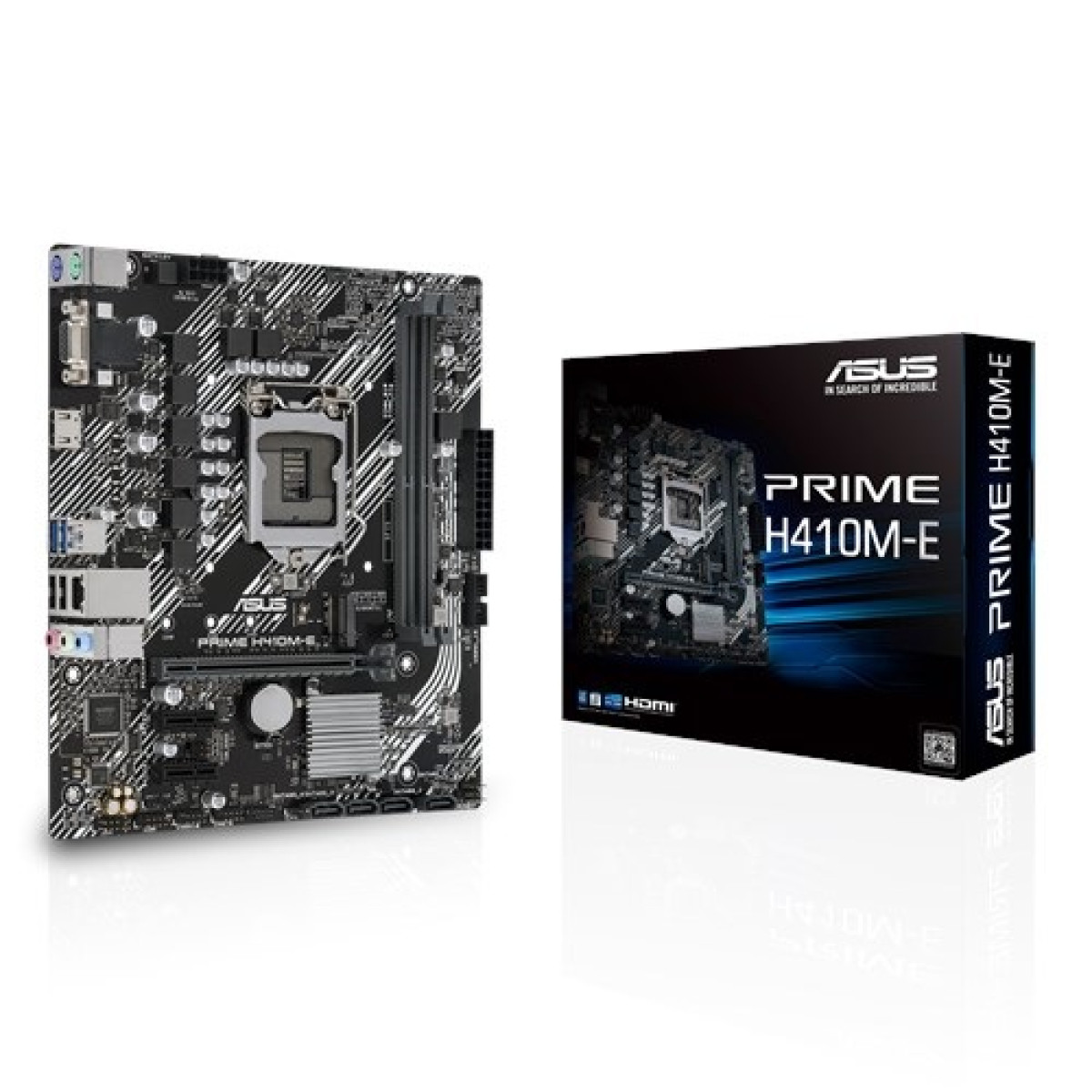

Asus Prime H410M-E Intel 10th Gen Micro-ATX Motherboard
৳9,000
Key highlights
- Form Factor: mATX Form Factor: 8.9 inch x 8.0 inch ( 22.6 cm x 20.3 cm )
- Supported CPU: Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
- Chipset: Intel H410
- BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
- M.2 Socket: 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)
Description
High-Performance Micro-ATX Motherboard for Gamers
Asus Prime H410M-E: The Perfect Micro-ATX Motherboard
The Asus Prime H410M-E is engineered for the modern user, providing a robust foundation for Intel's 10th generation processors. This Micro-ATX motherboard combines versatility and performance, making it an ideal choice for gamers, content creators, and everyday users alike. With support for up to 64GB of DDR4 RAM, this motherboard ensures seamless multitasking and enhanced system performance.
Featuring multiple connectivity options, including USB 3.2 and HDMI outputs, it allows you to connect various devices and peripherals, enhancing your computing experience. The Advanced Thermal Management system keeps your components cool, even during intense workloads, ensuring stability and longevity.
Additionally, the Asus Prime H410M-E is equipped with a user-friendly BIOS interface, making it easy for users of all experience levels to configure their systems. Its durable build quality and reliable components guarantee that you'll be investing in a motherboard that stands the test of time. Enhance your computing experience with Asus Prime H410M-E, where performance meets reliability.
Explore Features of Asus Prime H410M-E Motherboard
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | mATX Form Factor: 8.9 inch x 8.0 inch ( 22.6 cm x 20.3 cm ) |
| Supported CPU | Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | Intel H410 |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Expansion Slots | |
| M.2 Socket | 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode) |
| PCI | Intel 10th Gen Processors: 1 x PCIe 3.0 x16 (x16 mode) |
| Graphics Specifications | |
| Graphics | Integrated Graphics Processor 1 x D-Sub 1 x HDMI 1.4b |
| Memory Specifications | |
| Maximum Size | 64GB |
| Slots | 2 x DIMM |
| Supported Memory | Supports 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Supports Intel Extreme Memory Profile (XMP) OptiMem |
| Type | Dual Channel Memory Architecture |
| PORTS, CONNECTORS & SLOTS | |
| Audio Jack Combo | Realtek ALC887 7.1-Channel High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature: - LED-illuminated design - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors |
| D-Sub (s) | 1 x D-Sub |
| HDMI | 1 x HDMI 1.4b |
| LAN Port (s) | Realtek RTL8111H |
| Supported Storage | Total supports 1 x M.2 slots and 4 x SATA 6Gb/s ports Intel H410 Chipset : 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode) 4 x SATA 6Gb/s port(s) |
| USB (s) | Rear USB Port ( Total 4 ) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s) |
| Internal I/O Connectors | 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode) 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x Speaker connector |
| Special | |
| Special Feature | Software Features: ASUS Exclusive Software Armory Crate AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert - EZ update ASUS CPU-Z AI Charger DAEMON Tools Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS Special Features: ASUS 5X PROTECTION III - ASUS DIGI+ VRM - ASUS LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot Core - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-Slot ASUS Thermal Solution - Aluminum heatsink design |
| WARRANTY | |
| Manufacturing Warranty | 03 Years |
