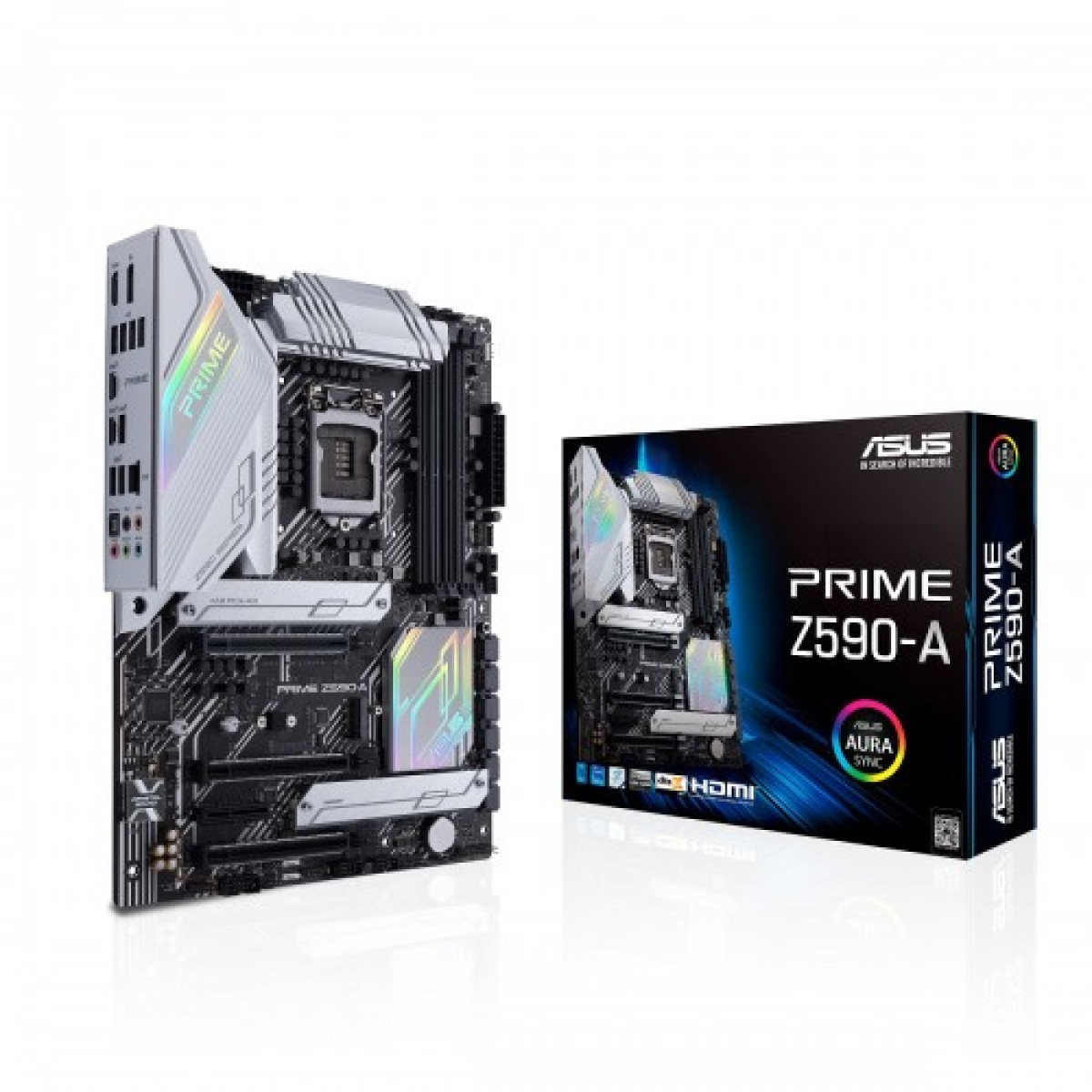

Asus Prime Z590-A Intel 10th and 11th Gen ATX Motherboard
- Brand:Asus
- Product Code: Asus Prime Z590-A
- Availability:Out of Stock
- Updated:
Specification
| BASIC INFORMATION | |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
|---|---|
| Supported CPU | Intel Socket LGA1200 for 11th Gen Intel Core processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
| Chipset | Intel Z590 Chipset |
| Audio | Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback*" Audio Features: - Power pre-regulator reduces power input noise to ensure consistent performance - Rear optical S/PDIF out port - Premium Japanese audio capacitors - Audio Shielding - Dedicated audio PCB layers - Audio cover - Unique de-pop circuit |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Expansion Slots | |
| M.2 Socket | M.2_1 slot (Key M), type 2242/ 2260/ 2280/ 22110 - Only Intel 11th Core processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel Z590 Chipset M.2_2 slot (Key M), type 2242/ 2260/ 2280/ 22110 (supports PCIe 3.0 x4 & SATA modes) M.2_3 slot (Key M), type 2242/ 2260/ 22110 (supports PCIe 3.0 x4 & SATA modes) |
| PCI | Intel 11th & 10th Gen Processors 3 x PCIe 4.0/3.0 x16 slots - Intel 11th Core processors support PCIe 4.0 x16 - Intel10th processors support PCIe 3.0 x16 Intel Z590 Chipset 1 x PCIe 3.0 x4 slot |
| Graphics Specifications | |
| Graphics | 1 x DisplayPort 1.4 1 x HDMITM 2.0 |
| Memory Specifications | |
| Maximum Size | 128GB |
| Slots | 4 x DIMM |
| Supported Memory | 5333(OC) /5133(OC) /5000(OC) /4800(OC) /4700(OC) /4600(OC) /4500(OC) /4400(OC) /4266(OC) /4133(OC) /4000(OC) /3866(OC) /3733(OC) /3600(OC) /3466(OC) /3400(OC) /3333(OC) /3200 /3000 /2933 /2800 /2666 /2400 /2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1 x DisplayPort 1.4 |
| HDMI | 1 x HDMITM 2.0 |
| LAN Port (s) | 1 x Intel I225-V 2.5Gb Ethernet |
| Supported Storage | Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports Intel11th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Only Intel 11th Core processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel Z590 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes) M.2_3 slot (Key M), type 2242/2260/22110 (supports PCIe 3.0 x4 & SATA modes) 6 x SATA 6Gb/s ports |
| USB (s) | Rear USB (Total 9 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 4 x USB 3.2 Gen 2 ports (3 x Type-A, 1 x Type-C®) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (suppports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Internal I/O Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers 1 x 4-pin VRM_HS Fan header 1 x W_PUMP+ header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 headers supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x AURA Addressable Gen 2 headers 1 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x CPU Over Voltage jumper 1 x Power button 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt header |
| Special | |
| Special Feature | ASUS 5X PROTECTION III - ASUS DIGI+ VRM (- Digital power design with Dr. MOS) - ASUS Enhanced DRAM Overcurrent Protection - ASUS ESD Guards - ASUS LANGuard - ASUS Overvoltage Protection - ASUS Stainless-Steel Back I/O ASUS Q-Design : - M.2 Q-Latch - ASUS Q-Connector - ASUS Q-DIMM - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow-green]) - ASUS Q-Slot ASUS Thermal Solution: - Aluminum M.2 Heatsink - Flexible M.2 heatsink ASUS EZ DIY: - Procool - Pre-mounted I/O shield - ASUS SafeSlot ASUS Exclusive Software: Armoury Crate: - Aura Creator - Aura Sync - Two-Way AI Noise Cancelation AI Suite 3 - 5-way Optimization with AI Overclocking TPU EPU Digi+ VRM Fan Xpert 4 Turbo app - EZ update AI Charger ASUS CPU-Z ASUS Turbo LAN MyAsus DTS:X® Ultra UEFI BIOS: AI Overclocking Guide ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - EZ Tuning Wizard FlexKey |
| WARRANTY | |
| Manufacturing Warranty | 3 Years |
Description
Elevate Your Build with the Asus Prime Z590-A Motherboard
The Asus Prime Z590-A Intel 10th and 11th Gen ATX Motherboard is meticulously designed for both performance and versatility, making it the ideal choice for gamers, content creators, and tech enthusiasts alike. With support for Intel's latest processors, this motherboard ensures that you can maximize your system's performance with cutting-edge technology.
This motherboard features robust power delivery and advanced cooling solutions, allowing your Intelprocessor to unleash its full potential. The AI Overclocking technology intelligently optimizes performance based on your system's parameters, ensuring that you get the best speeds without compromising stability.
Equipped with PCIe 4.0 support, the Z590-A enables faster data transfer rates and improved graphics performance, essential for high-resolution gaming and demanding applications. Additionally, the motherboard includes multiple M.2 slots for high-speed SSDs, providing you with ample storage options that can dramatically enhance load times and overall efficiency.
Connectivity is another highlight, with USB 3.2 Gen 2 ports for super-fast data transfer, and integrated Wi-Fi 6 support for stable and speedy internet access. The Asus Prime Z590-A is not just a motherboard; it's a foundation for a powerful and future-proof PC.
