Key highlights
- Form Factor: ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
- Supported CPU: AMD AM4 Socket 3rd and 2nd AMD Ryzen /2nd and 1st Gen AMD Ryzen with Radeo Vega Graphics Processors
- Chipset: AMD X570
- Audio: SupremeFX 8-Channel High Definition Audio CODEC S1220A - Dual OP Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - SupremeFX Shielding Technology - Supports up to 32-Bit/192kHz playback *2 Audio Feature : - Optical S/PDIF out port(s) at back panel - Sonic Radar III - Sonic Studio III + Sonic Studio Link
- BIOS: 256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2.
Description

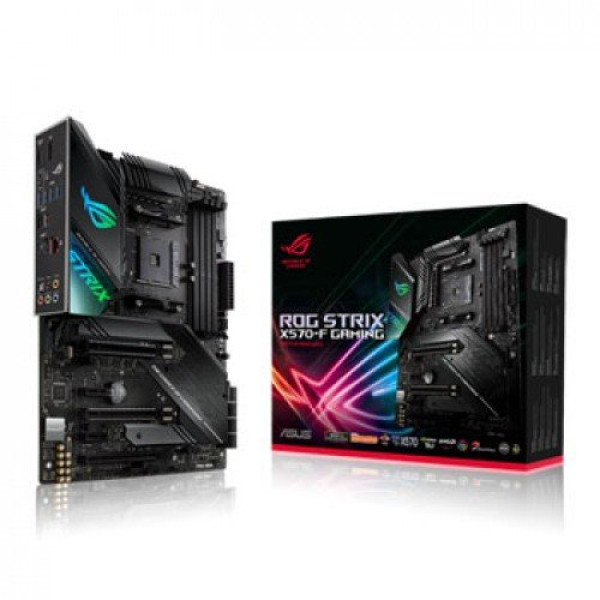

Enhanced Performance with Asus Rog Strix X570 F Board
Experience Unmatched Gaming Performance
The Asus Rog Strix X570 F AMD ATX Gaming Motherboard is designed for gamers who demand the best. With its advanced features and robust build quality, this motherboard provides a solid foundation for your gaming rig. The X570 chipset supports the latest AMD Ryzen processors, ensuring you have the power to tackle the most demanding games and applications. Dual PCIe 4.0 M.2 slots and high-speed USB 3.2 Gen 2 connectivity allow for lightning-fast data transfer and storage solutions. RGB lighting adds a personal touch, letting you customize your setup for a truly immersive gaming environment.
Moreover, the AI Noise-Canceling Microphone technology enhances your gaming experience by ensuring clear communication during multiplayer sessions. With an array of customizable features, from fan controls to overclocking capabilities, the Asus Rog Strix X570 F is perfect for both casual and hardcore gamers. Elevate your gaming experience and dominate your opponents with this high-performance motherboard.
Discover Features of Asus Rog Strix X570 F Motherboard
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Supported CPU | AMD AM4 Socket 3rd and 2nd AMD Ryzen /2nd and 1st Gen AMD Ryzen with Radeo Vega Graphics Processors |
| Chipset | AMD X570 |
| Audio | SupremeFX 8-Channel High Definition Audio CODEC S1220A - Dual OP Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - SupremeFX Shielding Technology - Supports up to 32-Bit/192kHz playback *2 Audio Feature : - Optical S/PDIF out port(s) at back panel - Sonic Radar III - Sonic Studio III + Sonic Studio Link |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2. |
| Expansion Slots | |
| M.2 Socket | Yes |
| PCI | 1 PCIeX16_3 slot shares bandwidth with PCIeX1_2. |
| Graphics Specifications | |
| Max Shared Memory | Max. 128GB |
| Graphics | Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors Multi-VGA output support : HDMI/DisplayPort ports - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz - Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz |
| Memory Specifications | |
| Maximum Size | 128GB, DDR4 |
| Slots | 3rd Gen AMD Ryzen Processors : 2 x PCIe 4.0 x16 (x16 or dual x8) 2nd Gen AMD Ryzen Processors : 2 x PCIe 3.0 x16 (x16 or dual x8) 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors : 1 x PCIe 3.0 x16 (x8 mode) AMD X570 chipset : 1 x PCIe 4.0 x16 (max at x4 mode) 1 2 x PCIe 4.0 x1 |
| Type | 3rd Gen AMD Ryzen Processors : 4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory 2nd Gen AMD Ryzen Processors : 4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors : 4 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory Dual Channel Memory Architecture |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | Yes |
| HDMI | Yes |
| LAN Port (s) | Realtek® L8200A ASUS Turbo LAN Utility TUF LANGuard |
| Supported Storage | 3rd Gen AMD Ryzen Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support AMD X570 chipset : 1 x M.2 x4 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 8 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 |
| Internal I/O Connectors | 1 x PCH_FAN 1 x AAFP connector 2 x Aura RGB Strip Header(s) 2 x Addressable Gen 2 header(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support 1 x SPI TPM header 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x W_PUMP+ connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x Node Connector(s) 1 x System panel connector 1 x T_Sensor Connector 1 x M.2 Fan Header 1 x USB 3.2 Gen 2 (up to 10Gbps) connector 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports |
| WARRANTY | |
| Manufacturing Warranty | 03 Years Warranty |
